Name: Space Age PAM-SD 2030Vdc 7.0A Form C Relay
Brand: Space Age
SKU: PAM-SD
Price: 17.65 USD
Availability: InStock

Space Age PAM-SD 2030Vdc 7.0A Form C Relay

Roll over image to zoom in Click on image to zoom

Newer model available

This model has been replaced by the newer product below. The original is available while current stock lasts.

This model

PAM-SD

$17.65

Only 28 left, while stock lasts

Recommended replacement

APC PAM-SD PAM Series Multi-Voltage Relays

$13.45$16.14

● 85 units in stock

View details

Category: Relay Modules
Brand: Space Age
SKU: PAM-SD
Weight: 1.0 lb

Space Age SSU-PAM-SD PAM-SD PAM-Series Multi-Voltage Relay Module, 7A, 20VDC/32VDC, SPDT

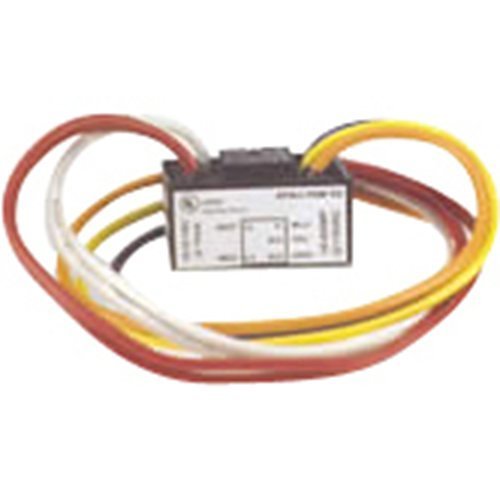

PAM Series encapsulated relay with flying leads, one SPDT (Form C) contact and a 20-32 VDC polarized coil for use on supervised circuits. It ships with a self-tapping screw, double-sided tape and wire nuts for mounting. PAM relays are used where a remote relay is needed for control or status feedback in fire alarm, HVAC, security and building automation systems.

Key Features

Encapsulated relay with flying leads
One SPDT contact, continuous duty coil
LED lights when the relay is activated
Polarized, for use on supervised circuits
Includes self-tapping screw, double-sided tape and wire nuts

Specifications

Coil voltage	20-32 VDC
Coil current	21 mA @ 20-32 VDC
Pull in / drop out	16 VDC / 9 VDC
Contact ratings	10 A general use @ 120 VAC; 10 A resistive @ 30 VDC (N/O); 7 A resistive @ 30 VDC (N/C); 1/2 HP @ 120 VAC; C300 pilot duty
Operate time	8 ms
Dimensions	1.5" H x 1.2" W x 1.2" D
Wire leads	12", 600 V rated
Operating temperature	-30 to 104°F
Humidity	5 to 95% non-condensing
Approvals	UL Listed, UL864, UUKL, C-UL, CE, RoHS, California State Fire Marshal

Documents & Downloads

PAM Series Multi-Voltage Relay Modules Data Page LT10277 (Data Sheet)
