ELOCK-FA — Space Age Electronics Fire Alarm Circuit Lockout Kit, an NFPA 10.6.5 compliant kit that locks out and permanently identifies the fire alarm branch circuit breaker in an electrical panel.
The ELOCK-FA addresses the requirement that the circuit disconnecting means for a fire alarm system be identified and mechanically protected. A red steel lockout tab labeled "FIRE ALARM" is fitted over the breaker and secured with a single hex screw, so the breaker cannot be casually switched off or reset, and an adhesive sheet of stickers marks the circuit inside the panel. The result is that the fire alarm circuit is always clearly identified, preventing accidental deactivation or unapproved resetting of the breaker during service.
What the kit contains

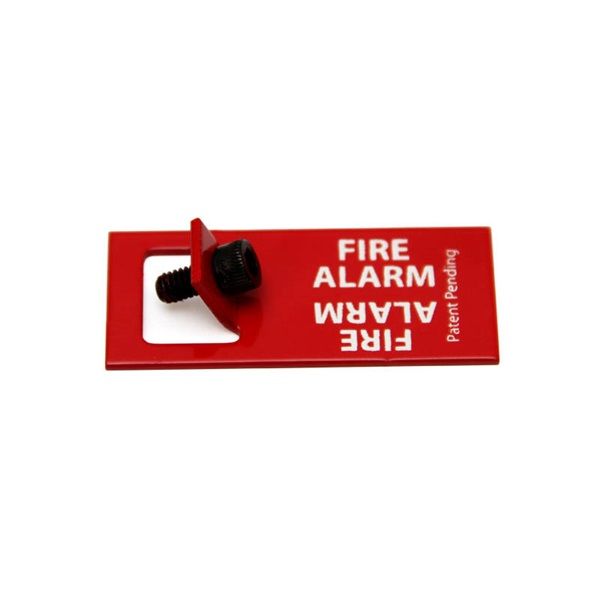

- Red circuit breaker lockout tab, steel, powder coated, with white lettering reading "FIRE ALARM"
- Single hex screw that threads into the lockout tab
- Hex key
- Adhesive sheet with stickers for labeling the locked out circuit
Specifications
| Part number |
ELOCK-FA |
| Description |
Fire Alarm Circuit Lockout Kit |
| Lockout tab material |
Steel, powder coated red |
| Lockout tab marking |
White lettering, "FIRE ALARM" |
| Fastening |
Single hex screw threaded into the lockout tab, hex key provided |
| Labeling |
Adhesive sheet with stickers for the locked out circuit |
| Compliance |
NFPA 10.6.5 compliant |
Installation notes
-
Match the tab to the system: the ELOCK-FA tab is lettered "FIRE ALARM." A bi-directional amplifier or ERCES circuit needs the ELOCK-BDA kit, whose tab reads "BDA ERCES" — the two kits are not interchangeable as labeling.
-
Label the panel, not just the breaker: the adhesive stickers are part of the compliance intent. Fitting the tab without applying the circuit labels leaves the circuit identification incomplete.
-
Keep the hex key with the panel documentation: the tab is secured by a single hex screw, and the supplied hex key is the tool needed to release it for legitimate service.
Related models
-
ELOCK-BDA — Bi-Directional Amplifier Circuit Lockout Kit. Same kit concept, but the lockout tab is lettered "BDA ERCES" for bi-directional amplifier and emergency responder communications enhancement system circuits.
Specifications taken from the Space Age Electronics data sheet "ELOCK Circuit Lockout Kits," document LT10876 Rev. A. Manufacturer specifications are subject to change without notice.
