Solo SOLO365-024 Solo 365 Electronic Smoke Detector Tester Kit

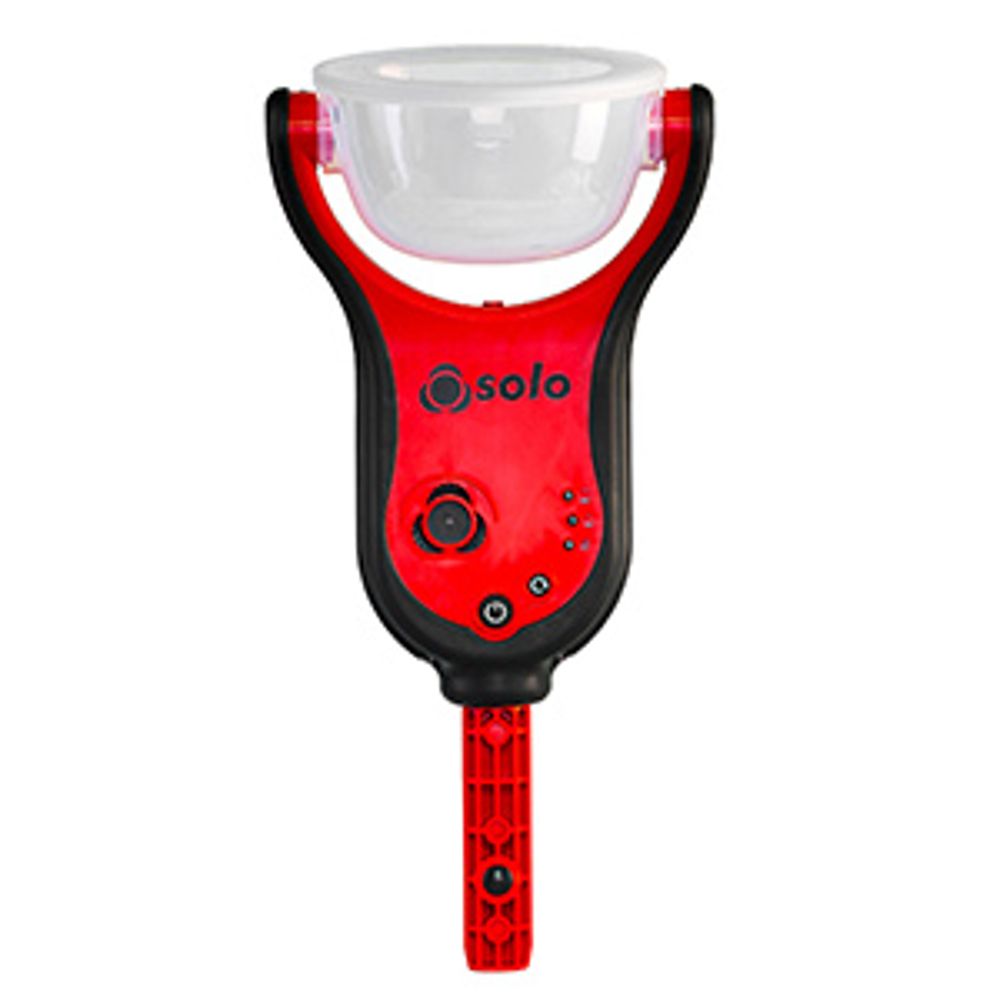

Solo 365 is a cordless electronic smoke detector tester that makes smoke on demand from a non-pressurised cartridge instead of canned aerosol. A proximity sensor auto-starts the test, an auto LED torch helps in dark areas, and a clearing mode prevents re-alarms. The -024 kit is the US (SDi LLC) version and includes the head unit, Solo 371 smoke generator, Solo 370 lithium-ion battery pack, one smoke cartridge and a USB charger.
Key Features
- On-demand smoke from non-pressurised cartridges - faster testing, less wastage, low contamination risk
- Auto-start proximity sensor starts and stops smoke
- Delayed-start / manual purge mode for non-standard detectors and ASD (aspirating) testing
- Clearing mode to prevent re-alarms
- Automatic LED torch for dark areas
- Slim-line flexible head for hard-to-reach detectors
- 15% lighter than Solo 330 dispenser with aerosol
- Clear cup to view the detector LED
- Colour-coded battery, cartridge and generator status LEDs
- Compatible with Solo access poles
- User-replaceable consumables (no service requirement)
- Detector-manufacturer approved
Specifications
| Detector size |
Detectors up to 110 mm diameter |
| Test cycle |
5 s stimulus / 5 s off repeat cycles |
| Safety |
Battery over-current cut-out, over-temperature cut-out, 2-minute max time-out, auto power-off after 10 minutes |
| Power source |
Lithium-ion battery pack, nominal 3.63 V, 9.5 Wh, USB charging |
| Charging time |
~2 hours |
| Operating temperature |
41-113 °F (+5 to 45 °C) |
| Operating humidity |
0-85% RH non-condensing |
| Storage temperature |
14-122 °F (-10 to 50 °C) |
| Weight (with battery, generator & cartridge) |
860 g (approx. 1.9 lb) |
| Dimensions H x W x D (incl. handle) |
420 x 190 x 110 mm |
| Dimensions H x W x D (excl. handle) |
295 x 190 x 110 mm |
| Clear cup |
150 x 85 mm |
| Outer carton H x W x D |
130 x 525 x 230 mm |
In the Box
- Solo 365 head unit x1
- Solo 371 smoke generator x1

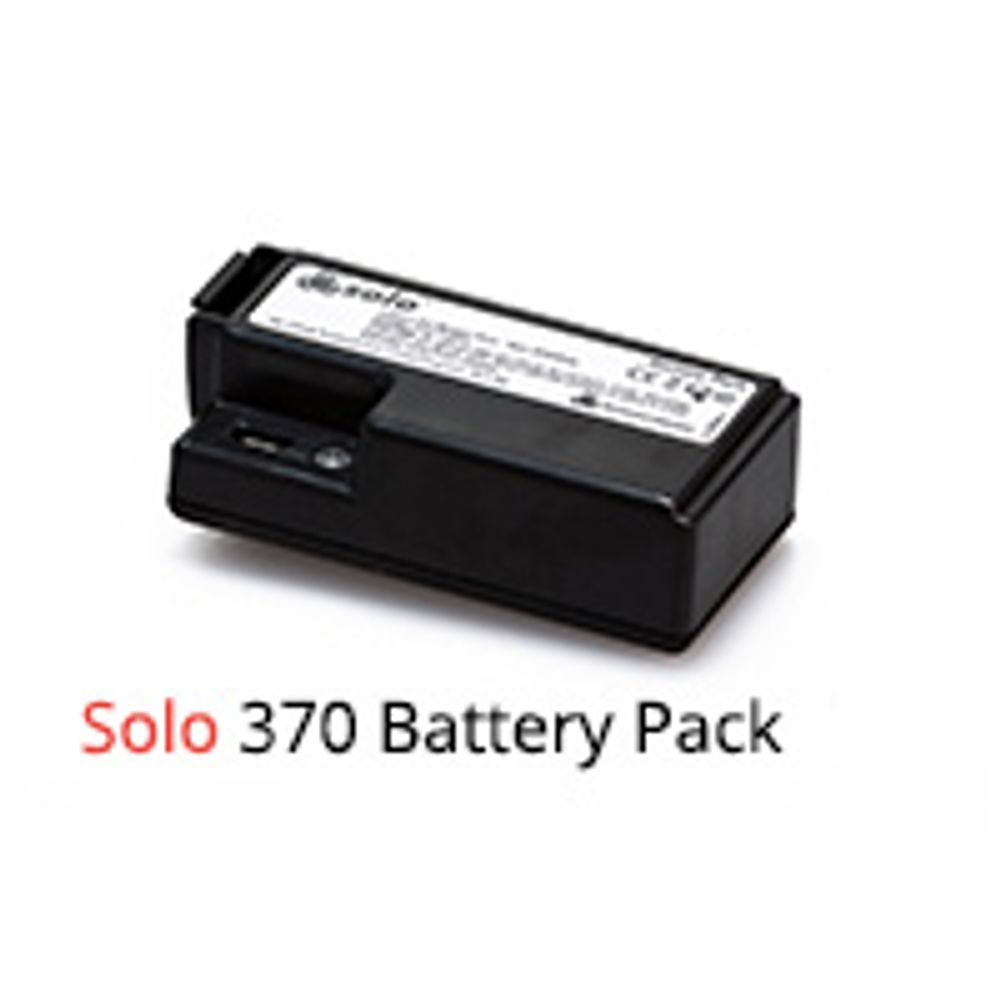

- Solo 370 lithium-ion battery pack x1
- Solo ES6 smoke cartridge x1
- Solo 365 universal USB charger x1
- USB lead x1
- Quick start guide x1
- Product registration card x1
Related Models
- ES6-6PACK-024 smoke cartridges (6)
- SOLO370-1PACK-024 battery pack
- SOLO371-024 smoke generator
- SERVICE360-024 service pack
- SOLO372-024 ASD adaptor
- SPARE1058-024 clear cup & membrane
- SPARE1059-024 membrane
- SPARE1060-024 charger & USB lead
- Solo access poles
- Solo 330/332 aerosol dispensers (previous method)
Specifications taken from the manufacturer's published literature. Manufacturer specifications are subject to change without notice.
