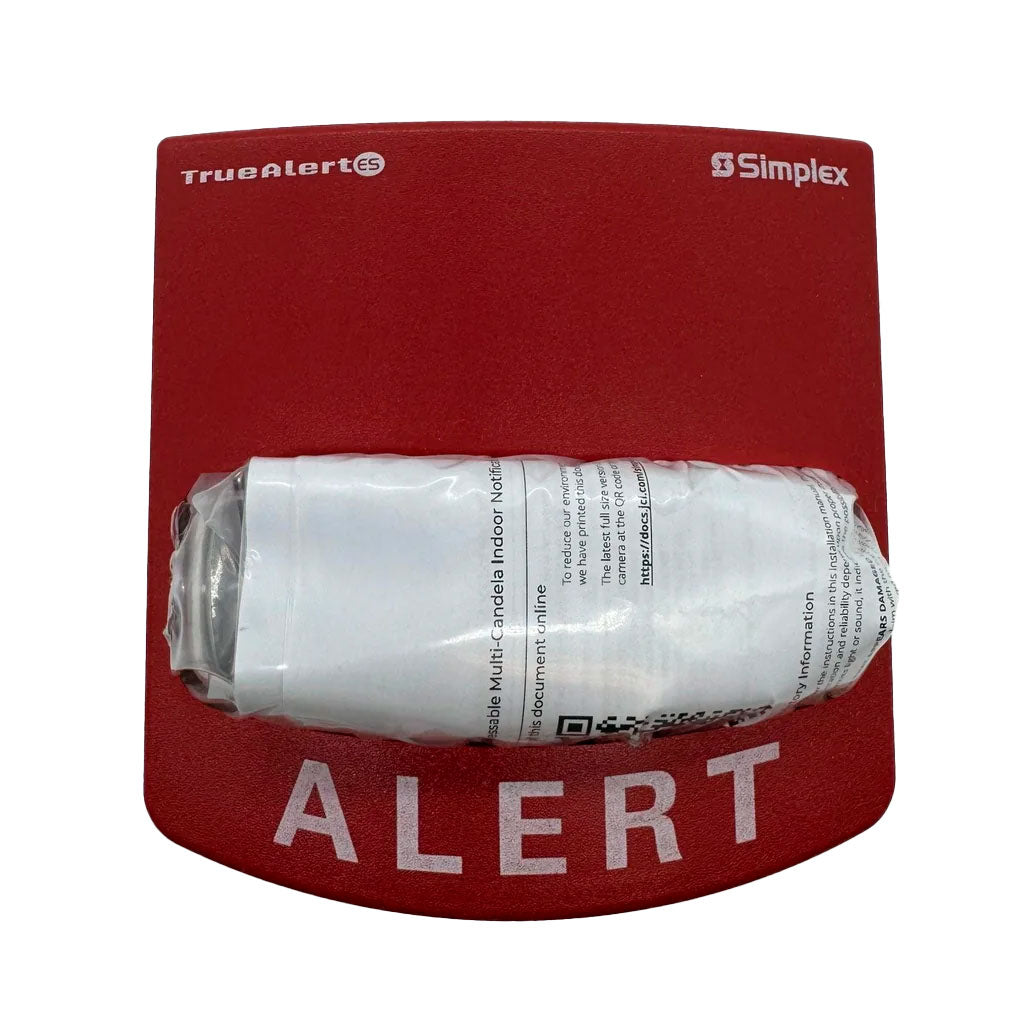

Simplex 49VO-WRA is a TrueAlert ES addressable wall-mount strobe with a red housing and ALERT lettering. It is a visible-only appliance used for non-fire alerting such as mass notification, and each unit is addressed individually on a Simplex IDNAC signaling line circuit.
Strobe intensity can be set from the panel or by jumper, with six steps from 15 to 185 cd, and the flash is synchronized at 1 Hz. Wiring is supervised with T-tap Class B connections.
Features
- Individually addressed on an IDNAC SLC
- Intensity programmable at the panel or by jumper: 15, 30, 75, 110, 135 or 185 cd
- Synchronized 1 Hz flash
- T-tap Class B wiring supervision
- Magnet test and LED indicator
- Red housing with ALERT lettering, visible only
Specifications
| Operating voltage |
23 to 31 VDC (special application) |
| Supervision |
1 unit load (0.8 mA panel current) |
| Circuit |
Simplex IDNAC SLC |
| Mounting |
Wall |
| Dimensions with cover |
5-1/8 in. H x 5 in. W x 2-5/8 in. D |
| Humidity |
10% to 93% non-condensing at 104 °F |
| Approvals |
UL 1971, ULC S526 |
Specifications taken from the manufacturer data sheet S49VO-0001, TrueAlert ES Addressable Wall Strobes.
