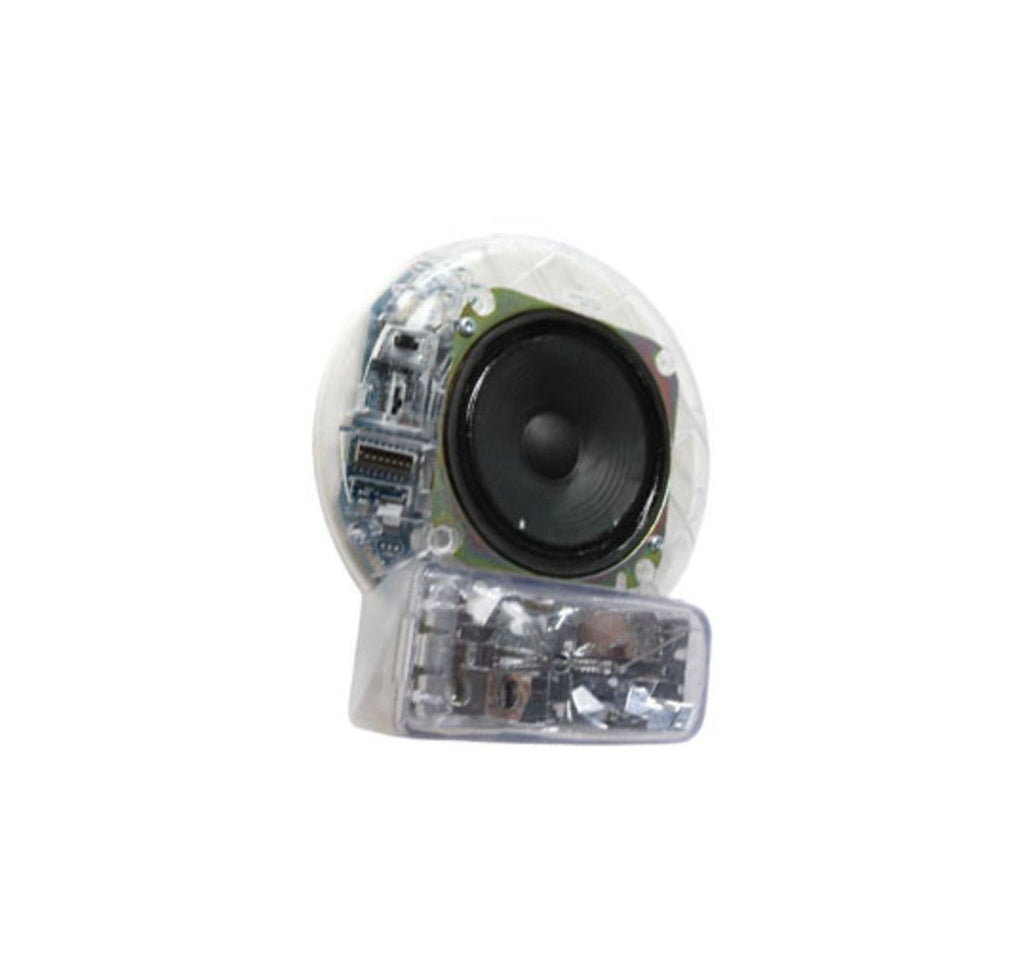

Simplex 49SVH-APPLC is a TrueAlert ES addressable speaker/strobe for ceiling mounting, supplied as the electronics only. It is the high-candela version, with strobe settings of 110, 135 or 185 cd, and its speaker has multiple power taps for 25 or 70.7 Vrms audio.
The appliance takes its power and address from a Simplex IDNAC signaling line circuit. The ceiling cover is not part of this item and has to be ordered separately.
Features
- Addressed individually on an IDNAC signaling line circuit
- High-candela strobe selectable at 110, 135 or 185 cd
- Strobe flash synchronized at 1 Hz
- Audio wiring can be T-tapped for Class B
- Speaker taps of 1/4, 1/2, 1 and 2 W
- Electronics only: order the cover separately
Specifications
| Operating voltage |
23 to 30 VDC (Special Application) |
| Supervision |
1 unit load (0.8 mA panel current) |
| Circuit |
Simplex IDNAC SLC |
| Speaker input |
25 or 70.7 Vrms |
| Power taps |
1/4, 1/2, 1, 2 W |
| Mounting |
Ceiling |
Specifications taken from the manufacturer data sheet S49SVC-0001, TrueAlert ES Ceiling Mount Speaker/Strobes.
Documents
FAQ
Is a cover included?
No. The 49SVH-APPLC is the high candela appliance only; a 49SVC ceiling cover such as 49SVC-CWFIRE, 49SVC-CRFIRE or 49SVC-CWALT must be ordered separately.
How is it powered and addressed?
The strobe is powered, addressed and controlled from a Simplex IDNAC signaling line circuit.
How big is it with the cover?
8-1/8 in. H x 7-1/8 in. W x 3 in. D (206 x 180 x 76 mm).
Is there a high fidelity version?
Yes. The 49HFVH-APPLC is the high fidelity, high candela ceiling appliance.
