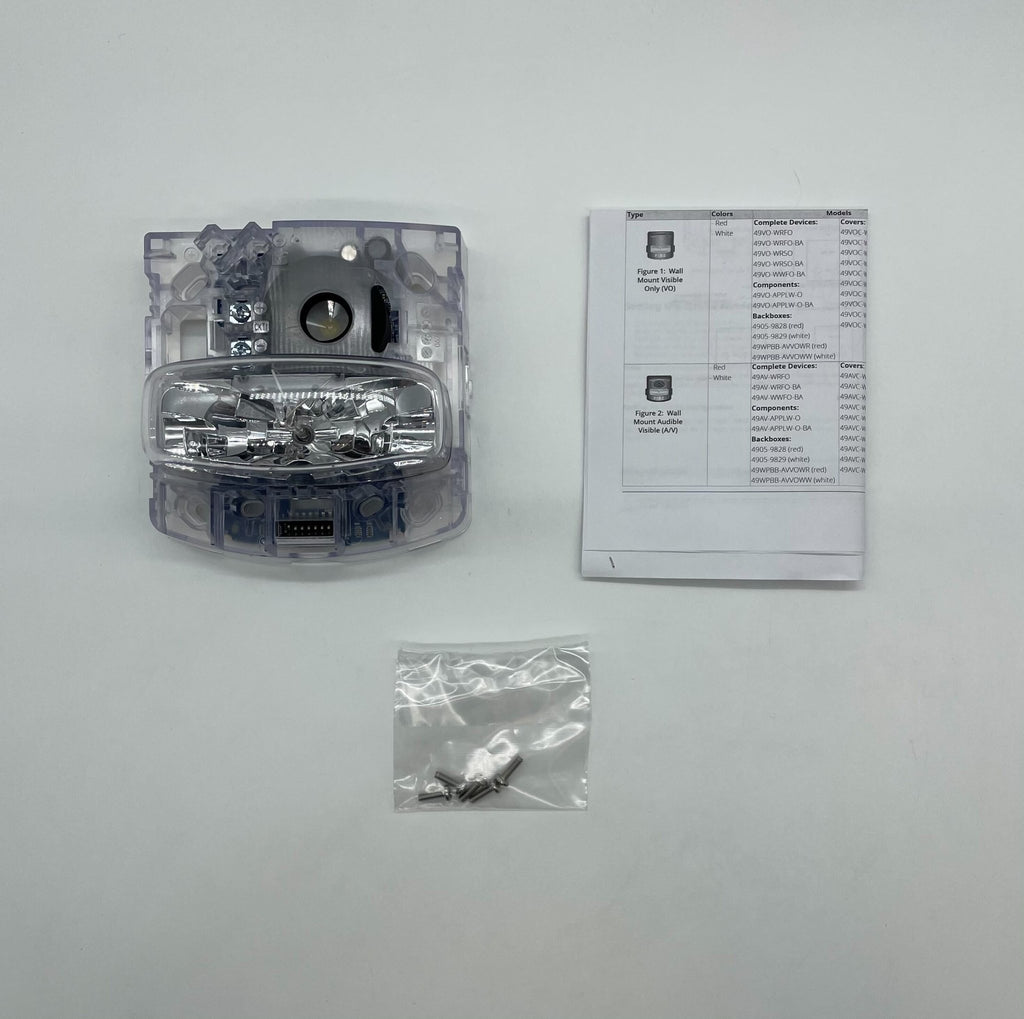

Simplex 49AV-APPLW-O is a TrueAlert ES weatherproof addressable horn/strobe for wall mounting, supplied as the appliance only. It runs on an IDNAC signaling line circuit, and the strobe is rated for indoor use at 15 or 75 cd and for outdoor use at WP75 or WP185.
The horn can sound Temporal 3, Temporal 4, March Time (20, 60 or 120 bpm) or a continuous tone, with a high or low output setting. A weatherproof 49AVC-xxx-O cover and a 49WPBB-AVVOWR or 49WPBB-AVVOWW weatherproof box are required and are ordered separately.
Features
- Weatherproof addressable horn/strobe, appliance only
- Strobe: 15 or 75 cd indoors (UL 1971), WP75 or WP185 outdoors (UL 1638)
- Horn patterns: Temporal 3, Temporal 4, March Time 20/60/120 bpm or continuous
- High/low horn output
- NEMA 3R enclosure with a -31°F to 150°F outdoor rating
- Needs a 49AVC-xxx-O cover and a weatherproof box
Specifications
| Operating voltage |
IDNAC SLC, 23 to 31 VDC |
| Rating |
NEMA 3R |
| Indoor settings (UL 1971) |
15 or 75 cd, 32°F to 120°F |
| Outdoor settings (UL 1638) |
WP75 or WP185, -31°F to 150°F (-35°C to 66°C) |
| Humidity |
Up to 98% at 104°F (UL 1638) |
| Horn output (UL 464, steady high) |
81.3 dBA at 10 ft |
| Current (A/V, 75 cd, horn high) |
165 mA at 23 VDC |
| SLC loading |
1 unit load; max 127 addresses per SLC |
| Mounting box |
49WPBB-AVVOWR (red) or 49WPBB-AVVOWW (white) required |
| Wiring |
18 to 12 AWG in/out terminals |
Specifications taken from the manufacturer data sheet S49WP-0001, Wall Mount Weatherproof Visible and Audible/Visible Notification Appliances.
