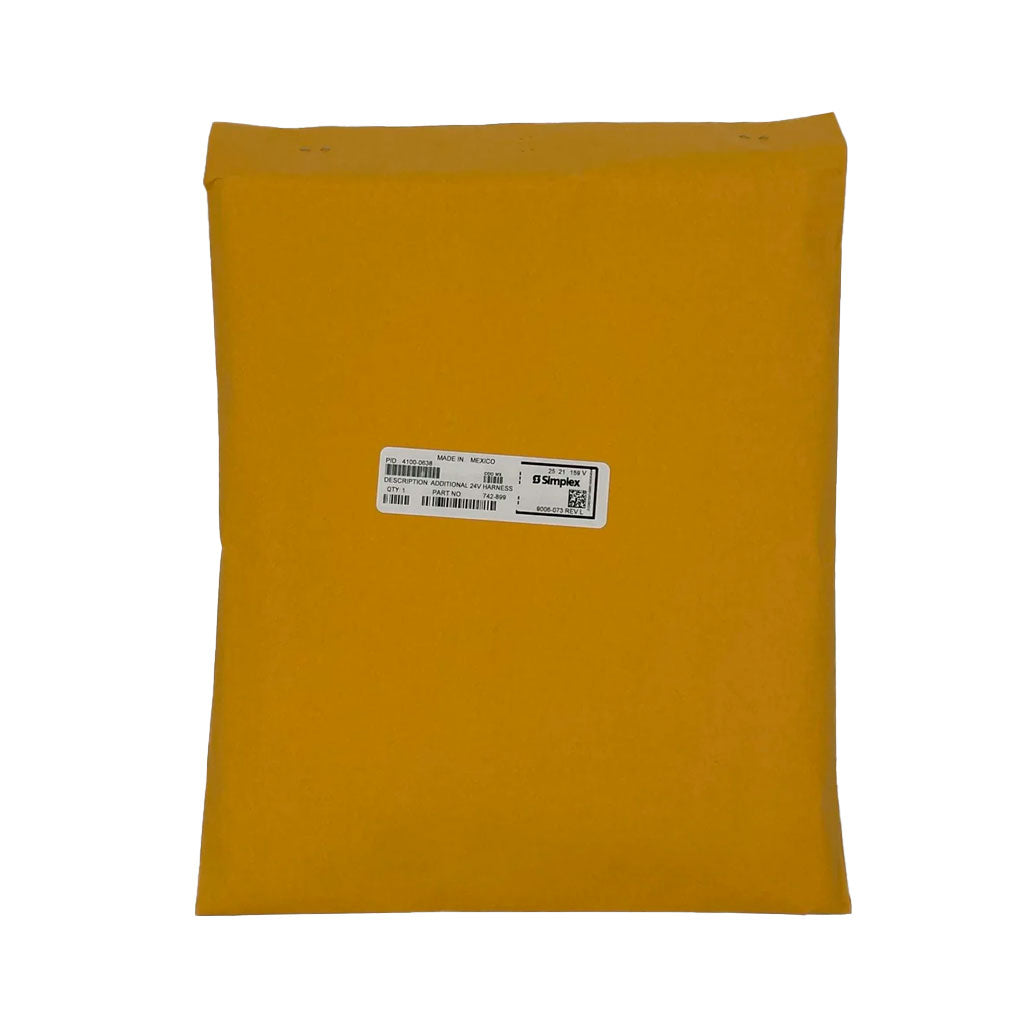

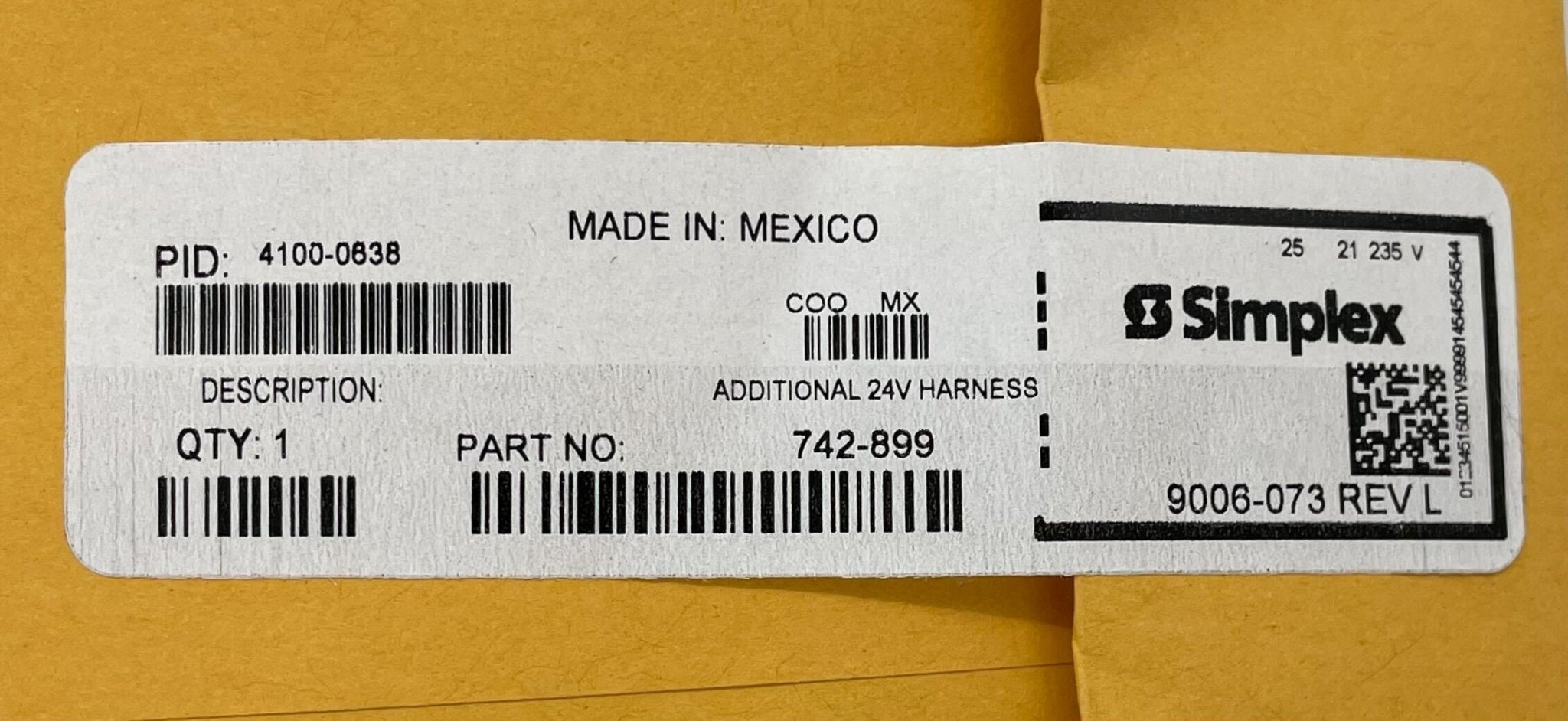

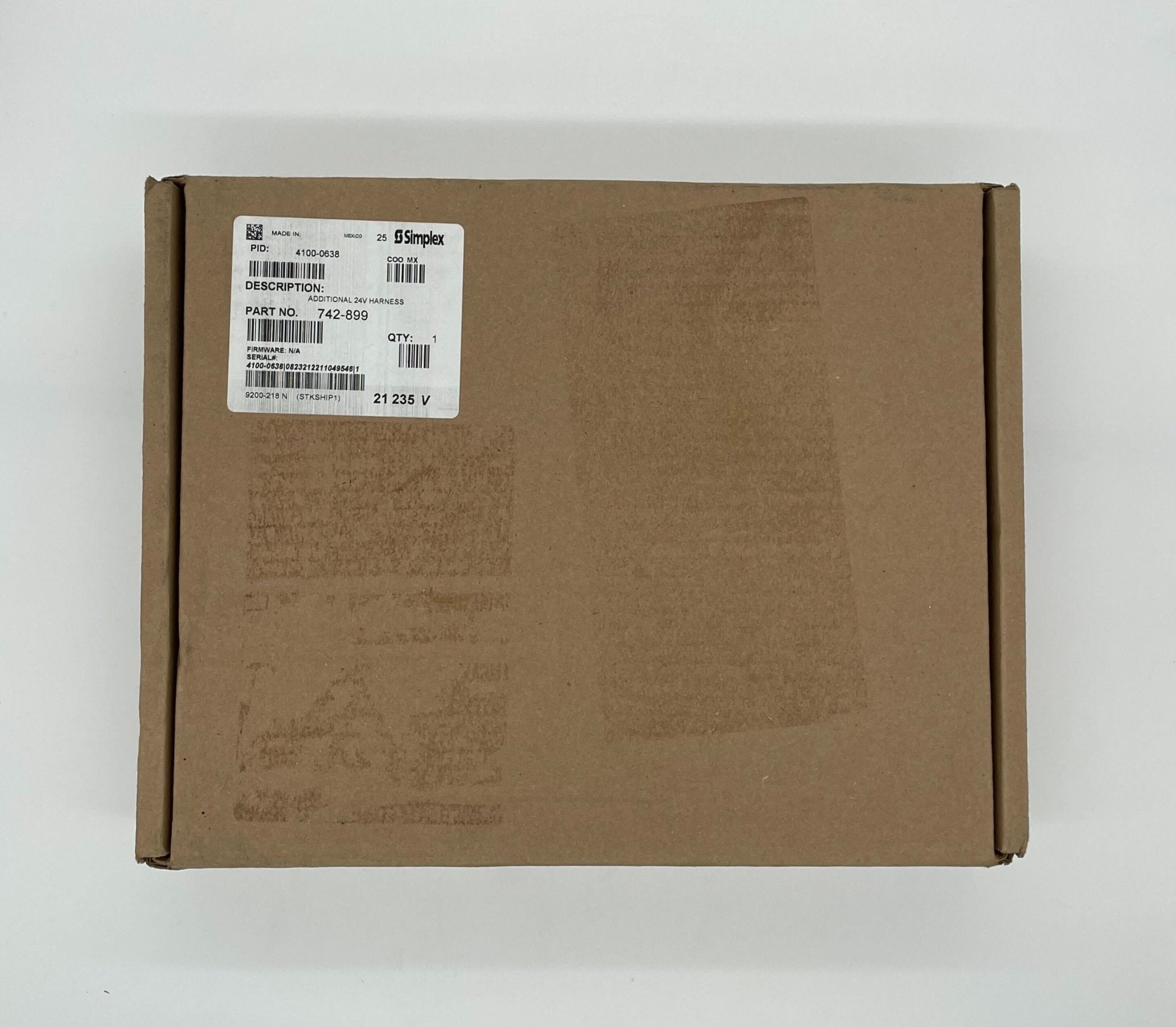

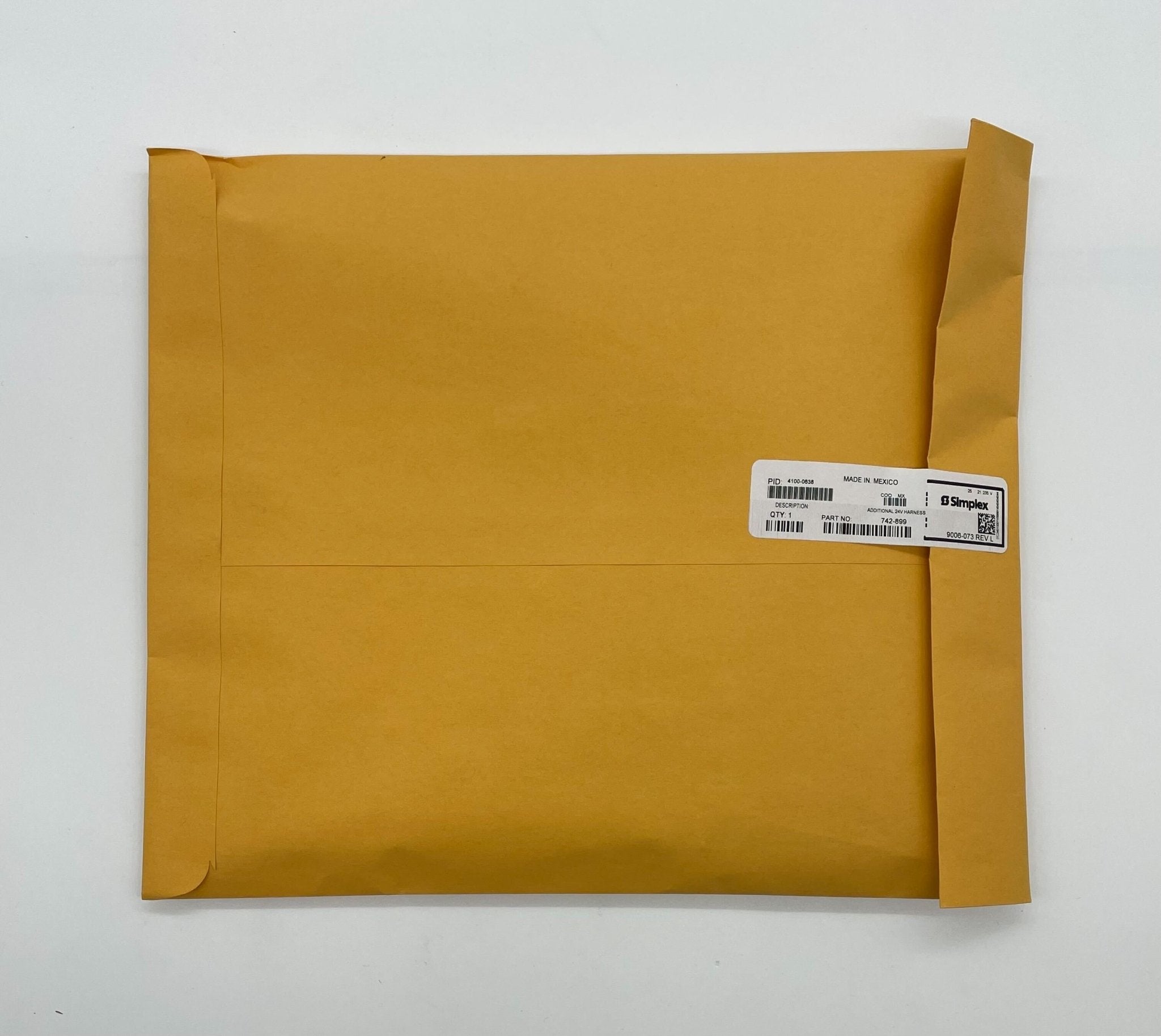

Simplex 4100-0638 — additional 24 VDC harness for legacy 4100 slot modules.
This is a power feed accessory, not a module. Simplex lists it for the case where the 4100 slot modules in a cabinet need more than 2 A of 24 VDC from the system power supply. That is the sense in which it is additional: it supplements the 24 VDC already reaching those slots rather than replacing it.
- Simplex catalog description: 4100 Slot Module Additional 24 VDC Harness
- Specified when 4100 slot module requirements exceed 2 A from the SPS
- Listed in the 4100ES service parts list as harness 734-095, Additional 24 V for Legacy Modules
- Applies to 4100 legacy slot modules rather than 4100ES block-style modules
Two neighbouring order numbers do something else entirely. 4100-0636 is the box interconnection harness kit, the non-audio power and communications link ordered one per close-nippled cabinet, and 4100-0637 is the audio box-to-box harness. Simplex publishes no length for 4100-0638, so match it by function and by service part 734-095.
