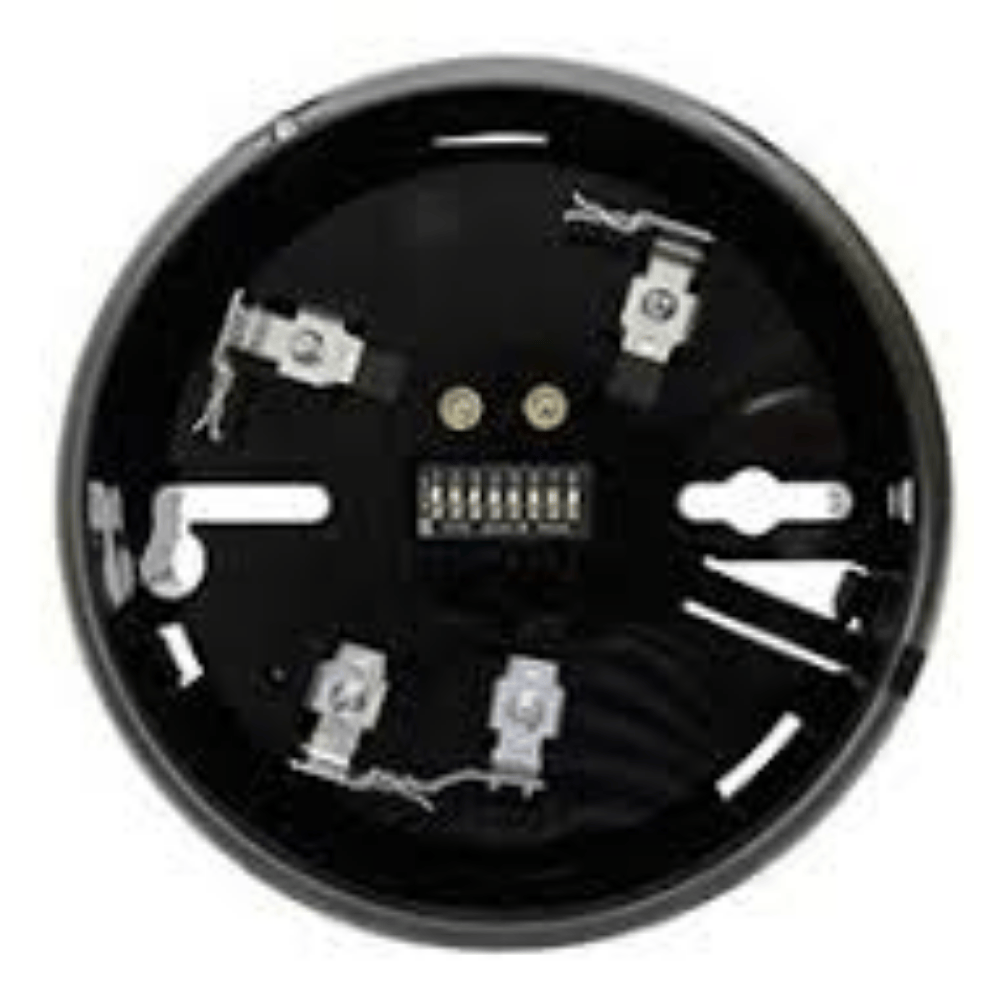

4098-9775 is the black version of the Simplex TrueAlarm sensor base with connections for a remote LED alarm indicator or an unsupervised relay. The base carries the addressable electronics and DIP-switch address, and accepts detachable TrueAlarm photoelectric and heat sensors on IDNet or MAPNET II systems. It is the black counterpart of the white 4098-9789.
Specifications
| Color |
Black |
| Communications |
IDNet or MAPNET II, auto-selected, one address per base |
| Address selection |
Base-mounted DIP switch, accessible under the sensor |
| Communications wiring |
Screw terminals for in/out wiring, 18 to 14 AWG (0.82 to 2.08 mm2) |
| Remote LED / relay connections |
Color coded wire leads, 18 AWG (0.82 mm2) |
| Remote LED alarm indicator current |
1 mA typical, no impact to alarm current |
| Base LED |
Integral red LED: pulses for communication, steady for alarm or trouble |
| Mounting box |
4 in. octagonal or 4 in. square box; depth depends on wire count and size |
| UL listed operating temperature |
32-100 F (0-38 C) |
| Storage temperature / humidity |
0-140 F (-18 to 60 C) / 10-95% RH |
| Listings |
UL, ULC, CSFM listed; FM approved (TrueAlarm family) |
Compatibility and installation notes
- Accepts TrueAlarm sensors 4098-9714/4098-9774 photoelectric and 4098-9733/4098-9778 heat; the 4098-9734 high temperature heat sensor is IDNet only on 4100ES, 4010ES and 4007ES.
- Optional 2098-9808 remote red LED alarm indicator, or 4098-9822 unsupervised relay (requires separate 24 VDC; mounts only in the base electrical box).
- For 4007ES, 4010, 4010ES, 4100ES and 4100U control units, and MAPNET II on 4020, 4100 and 4120 units and 2120 TrueAlarm CDTs.
- Locking anti-tamper design mounts on a standard outlet box; magnetically operated functional test.
Related models
Documents
Specifications from Simplex data sheet S4098-0019 Rev. 31 (06/2023). Manufacturer specifications are subject to change.
