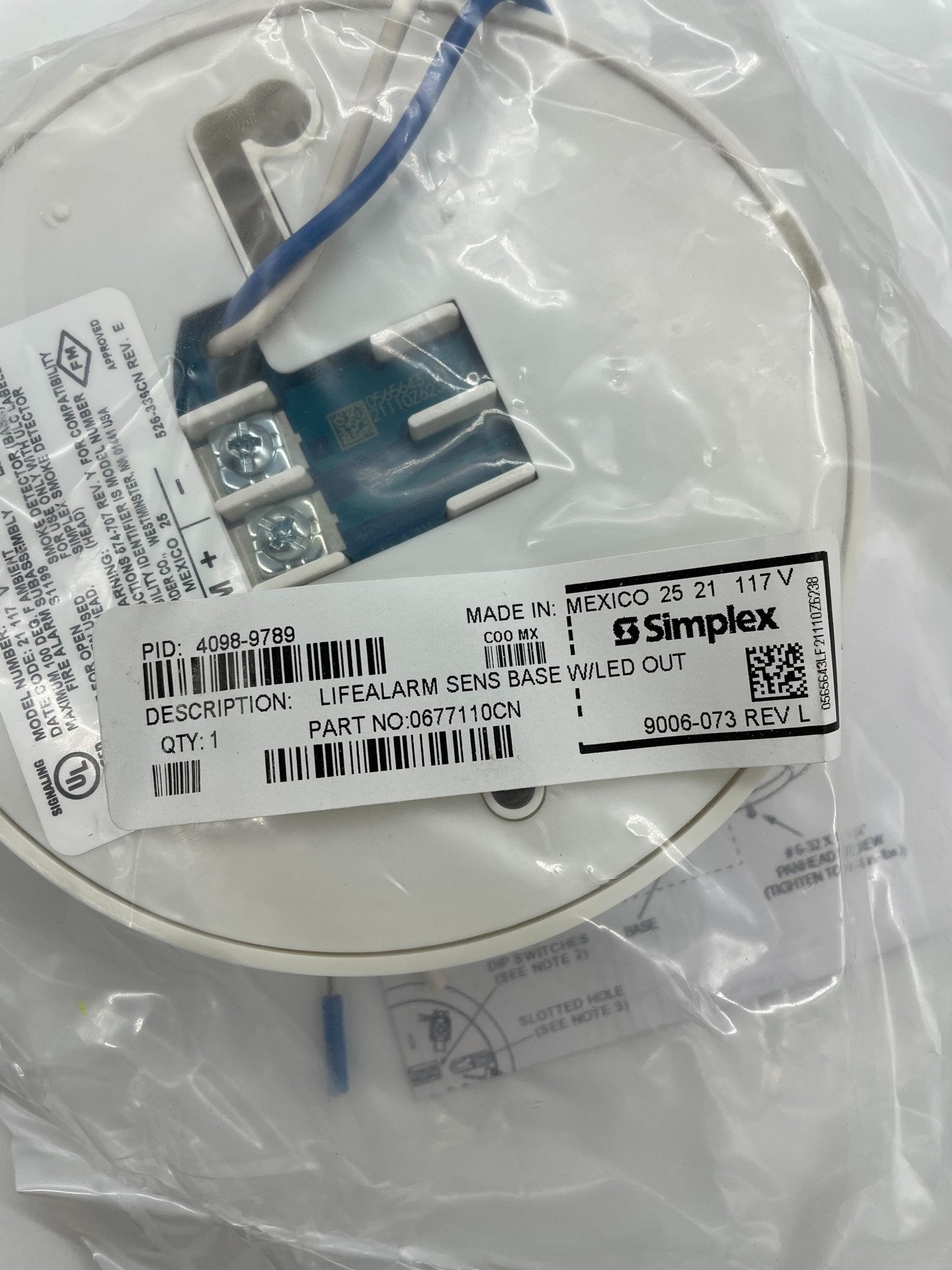

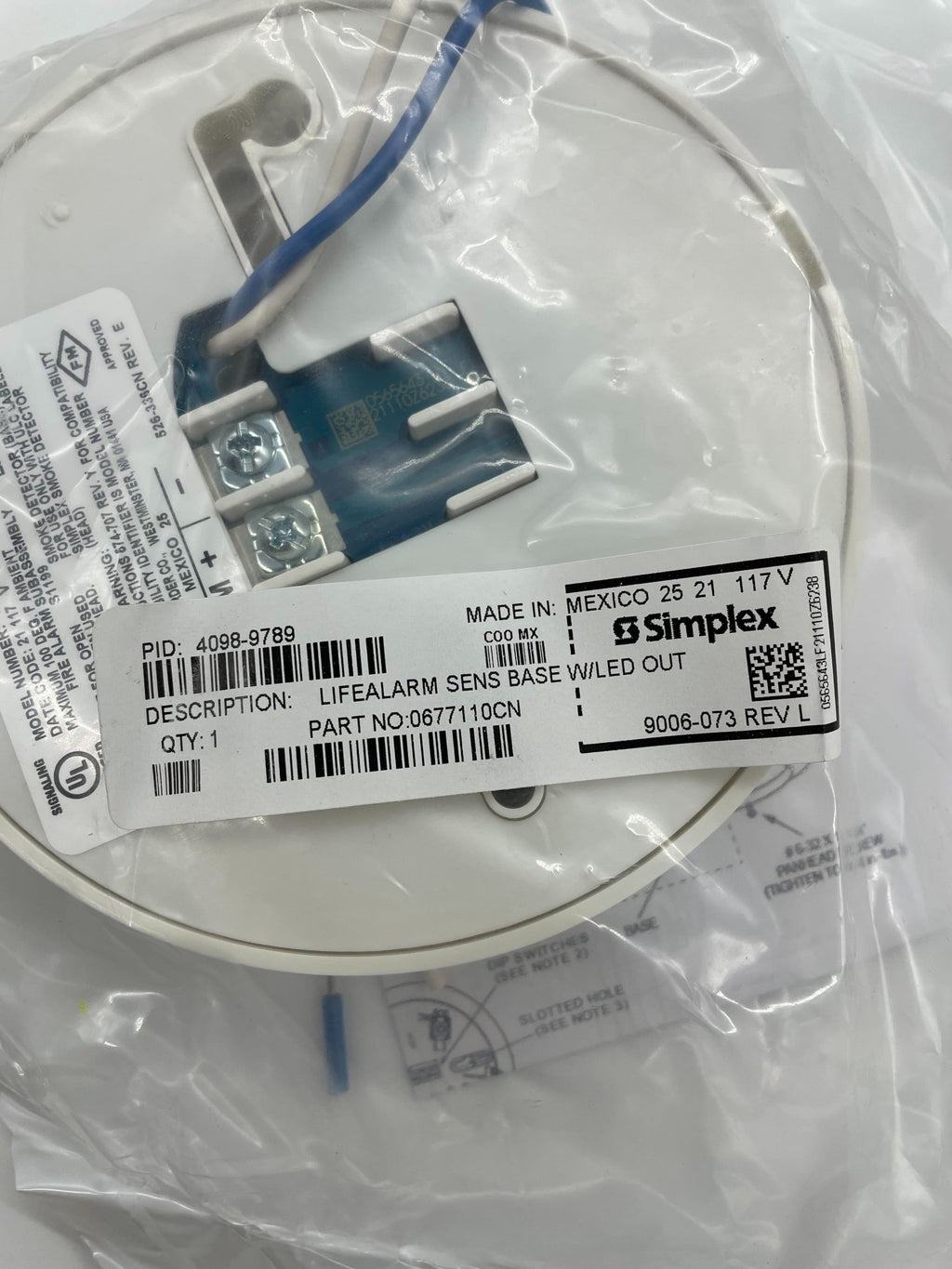

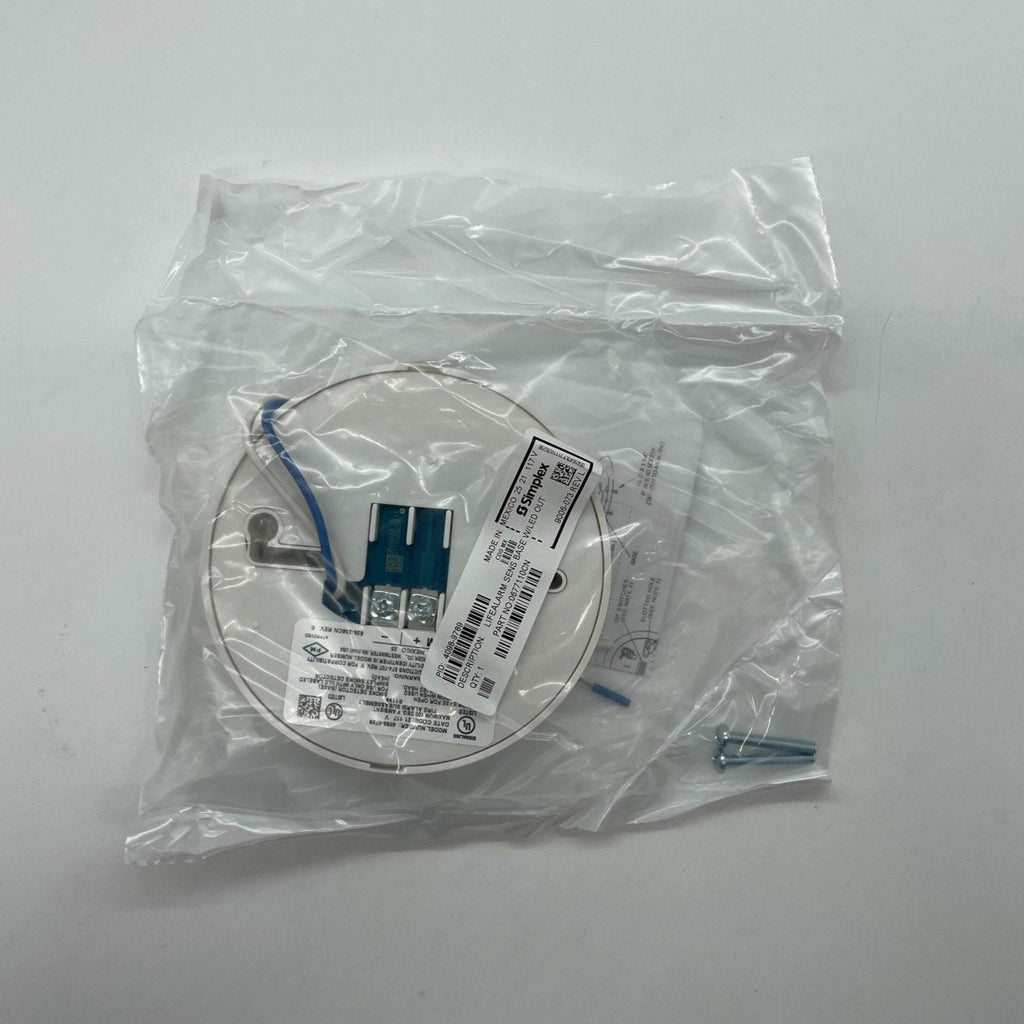

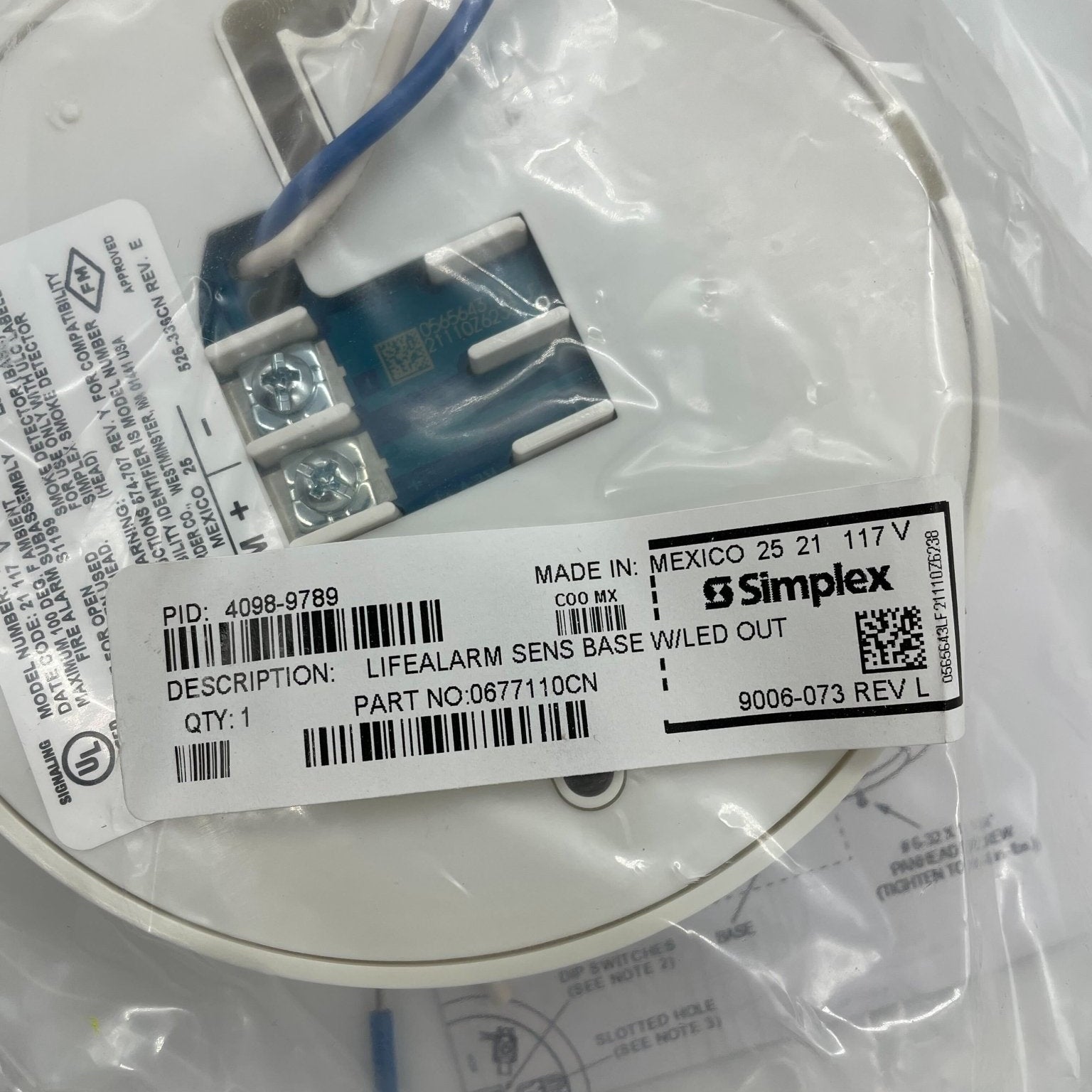

Simplex 4098-9789 — TrueAlarm analog sensor base with wired connections for a remote LED alarm indicator or an unsupervised relay.
A TrueAlarm base carries the addressable electronics and the DIP-switch address; the sensor detaches from it, so sensor type can be changed without reprogramming the panel. This version adds factory leads for showing the alarm outside the room or driving a local relay. It is not a supervised relay base.
- IDNet or MAPNET II communications, auto-selected, one address per base
- Accepts 4098-9714 photoelectric, 4098-9733 heat and 4098-9734 high temperature heat sensors
- Leads suit the 2098-9808 remote red LED indicator or 4098-9822 unsupervised relay
- Screw terminals for in and out wiring, 18 to 14 AWG
- Remote LED draws 1 mA typical, no impact on alarm current
- UL certified operating range 32° to 100° F (0° to 38° C)
4098-9792 is the plain standard base with no options, and 4098-9775 is this base in black. 4098-9791 and 4098-9780 are the supervised relay bases, four-wire and two-wire, and neither is compatible with the 2120 CDT.
Documents
FAQ
Is a sensor included?
No. The base accepts a separately ordered TrueAlarm sensor such as the 4098-9714 photoelectric or 4098-9733 heat sensor.
What can the leads connect to?
A 2098-9808 remote red LED alarm indicator or a 4098-9822 relay. The relay is unsupervised and needs separate 24 VDC.
Which electrical box do I need?
Without the relay, a 4 in. octagonal or 4 in. square box, 1-1/2 in. deep. The 4098-9822 relay mounts in the base electrical box and needs a deeper box with a 1-1/2 in. extension ring.
Which communication protocol does it use?
IDNet or MAPNET II, selected automatically, with one address per base.
