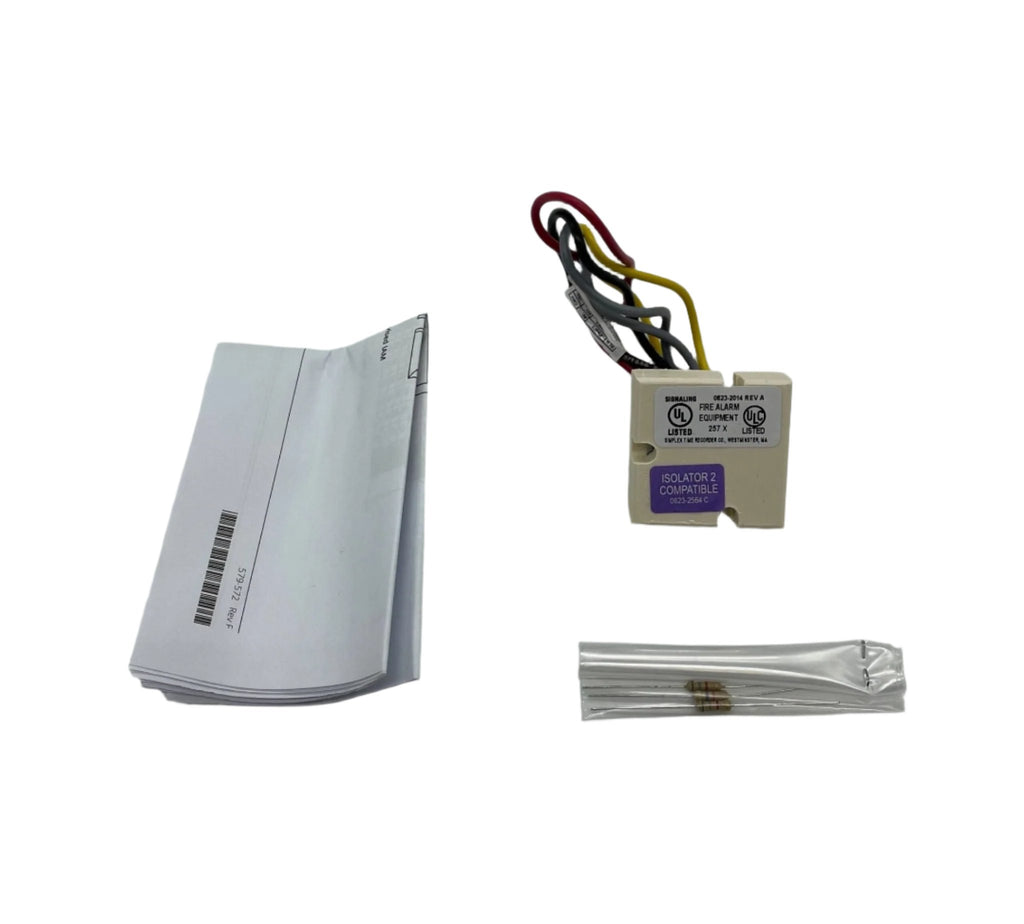

Simplex 4090-9051 — encapsulated supervised Individual Addressable Module (IAM) with wire leads, for IDNet and MAPNET II.
An IAM gives one address to a dry-contact device that has none of its own: a heat detector contact, a tamper or flow switch. Power and data arrive on the two-wire IDNet or MAPNET II pair, and the module supervises the wiring to an end-of-line resistor, so an open reports as trouble. The 4090-9051 is the potted version, for damp locations.
- Supervised Class B monitoring of normally open dry contacts; one address
- Color-coded 18 AWG leads, 8" (203 mm); no screw terminals, no LED
- Up to 500 ft (152 m) to the contacts, 400 ft (122 m) with 2081-9044 protectors
- 32° to 158°F (0° to 70°C); up to 93% RH at 100°F
- Beige epoxy, 1-9/16" × 1-9/16" × 9/16"; EOL harness 4081-9004, 6.8 kΩ
The 4090-9806 and 4090-9807 trim plates and the 4090-9810 bracket do not fit this module: Simplex lists them only for the 4090-9001, the thermoplastic version with screw terminals and an LED.
