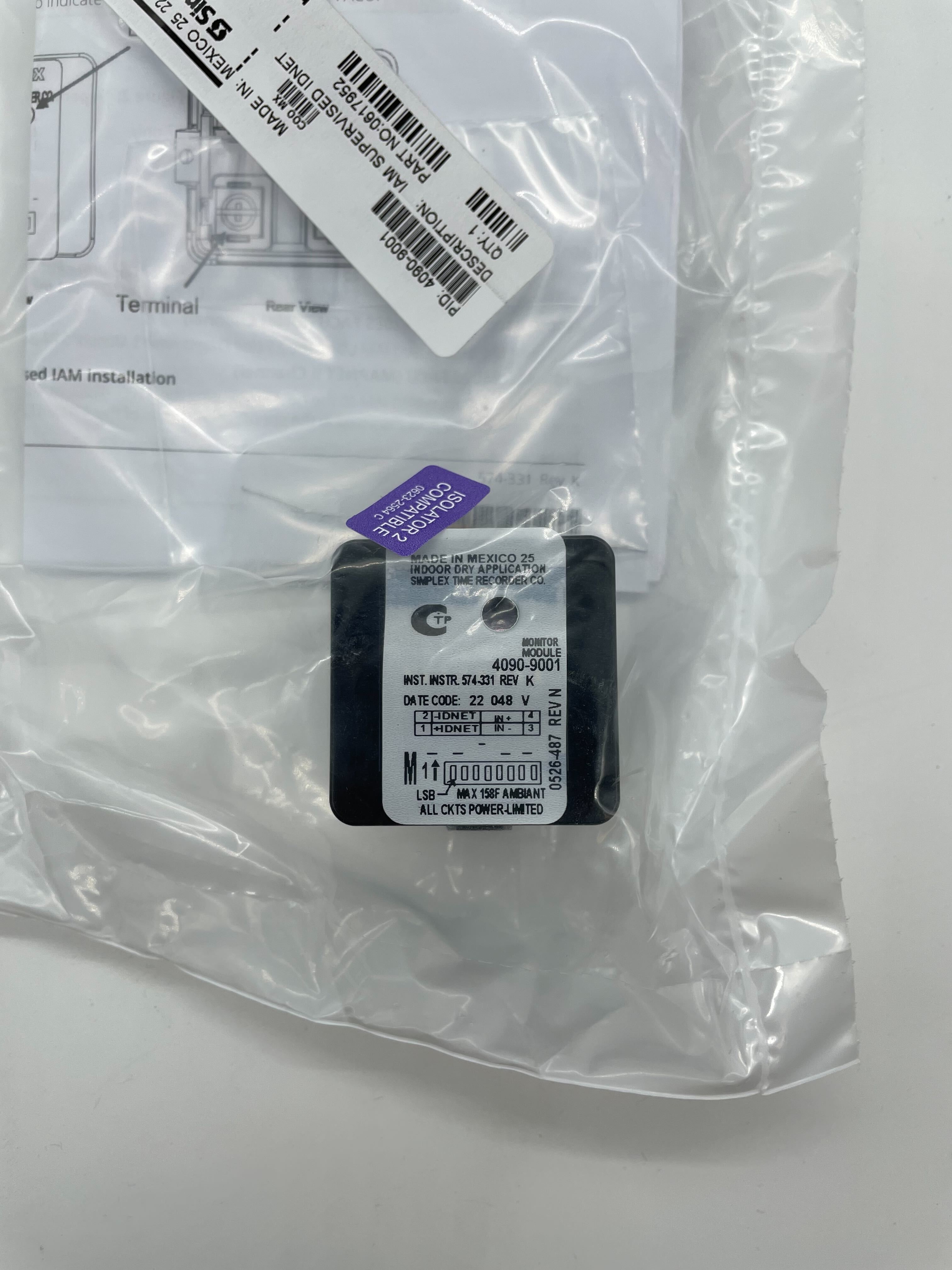

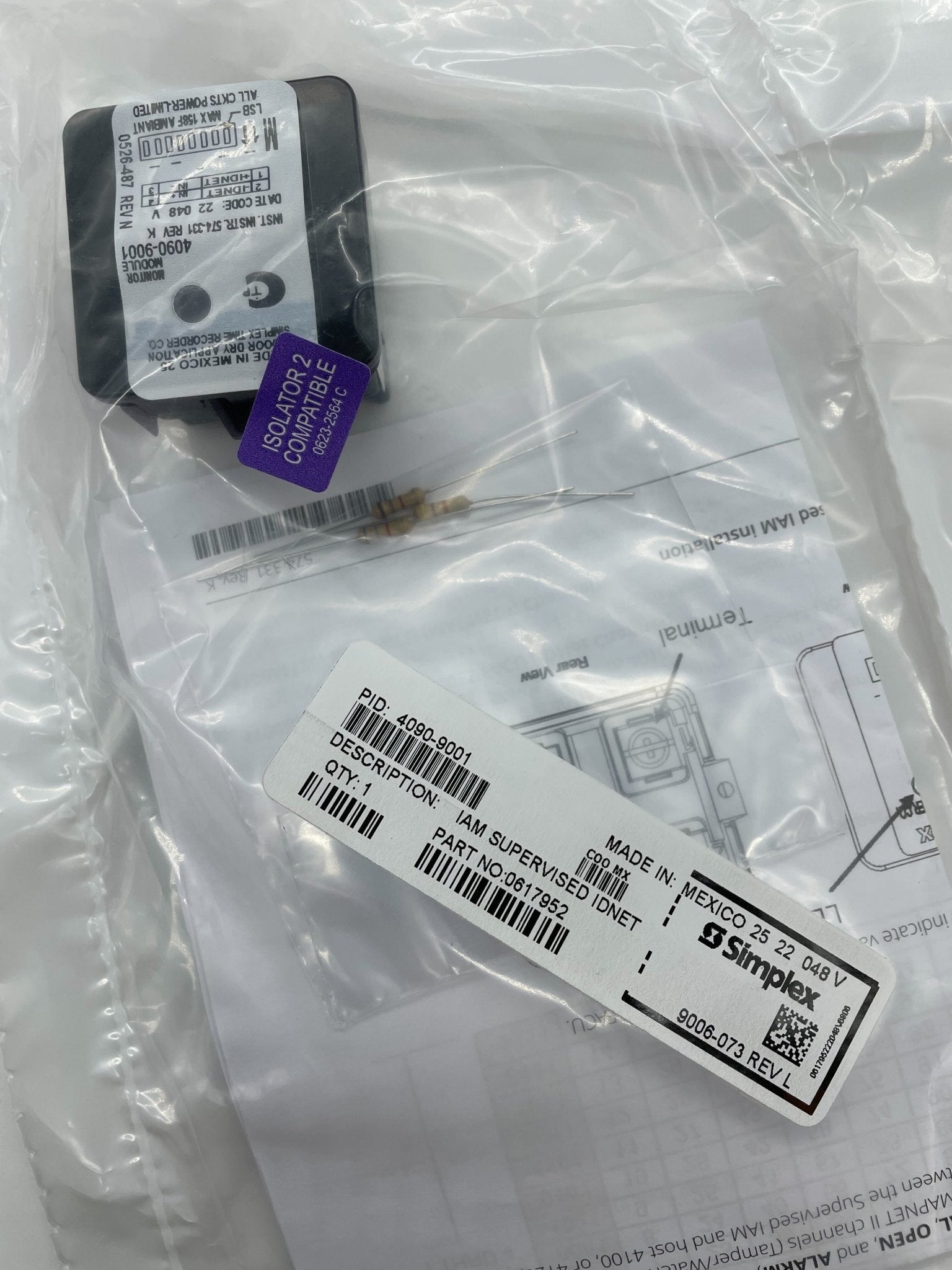

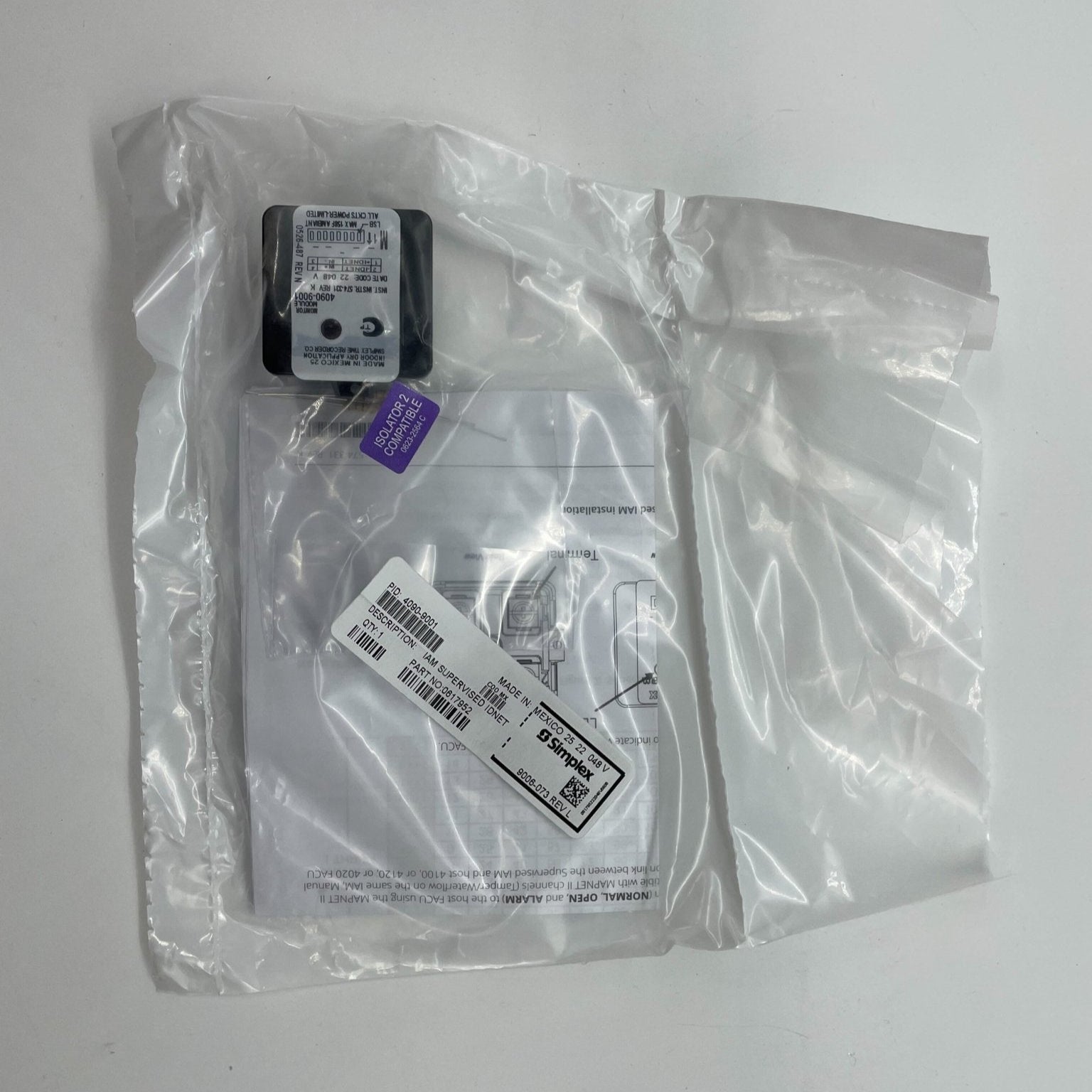

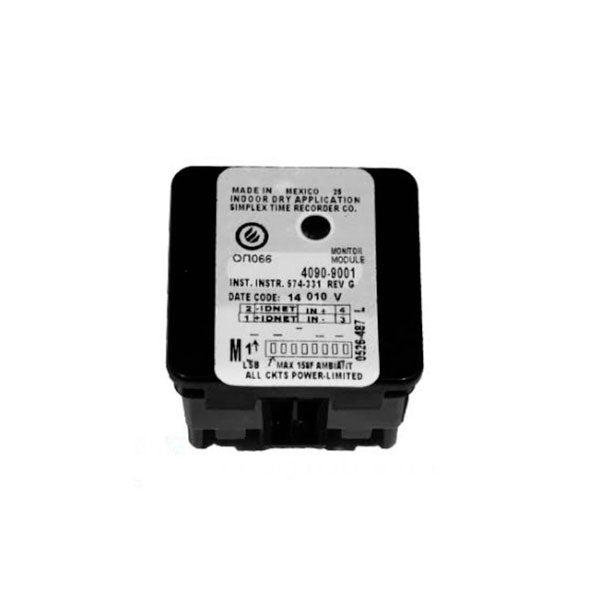

Simplex 4090-9001 is a supervised Individual Addressable Module (IAM) that gives one location-specific address on an IDNet or MAPNET II circuit to conventional normally open dry contacts.
Individual addressable modules take both power and communications from the two-wire addressable circuit, so no separate supply is needed. The 4090-9001 monitors normally open dry contacts — a single initiating device such as single-station smoke detector alarm contacts or heat detector contacts, or several devices at the same location — along with the wiring out to an end-of-line resistor, giving supervised Class B monitoring reported as one point at the panel. Contact closure initiates an alarm or whatever response is programmed; an open in the monitored wiring reports a trouble. The panel decides how the point behaves: it can latch a momentary closure, as from a rate-of-rise heat detector, or track the contact status. On IDNet channels the module also supports current-limited "T-sense" operation, sensing four states — normal, open circuit, short circuit and current limited — so that a tamper switch (supervisory) and a waterflow switch (alarm) can be distinguished on the same circuit using a single address. The module is packaged in an enclosed thermoplastic housing that minimizes dust infiltration, with screw terminals and a communications LED, and it fits a standard single-gang box.
Specifications
| Device type |
Supervised Individual Addressable Module in thermoplastic housing with screw terminals and status LED |
| Power and communications |
MAPNET II or IDNet, auto-selected, one address per IAM |
| Input requirements |
Normally open, dry contacts; supervised Class B monitoring |
| Wire connections |
Screw terminals for in/out wiring, 18 to 14 AWG (0.82 mm² to 2.08 mm²) |
| Distance from IAM to contacts |
500 ft (152 m) maximum without protectors; 400 ft (122 m) maximum with 2081-9044 overvoltage protectors |
| Channel wiring distance |
2,500 ft (762 m) maximum from the fire alarm control panel; 10,000 ft (3,048 m) maximum total including T-taps |
| Dimensions |
1-9/16 in. W x 1-3/4 in. H x 1-1/4 in. D (40 mm x 44 mm x 32 mm) |
| Housing material |
Black thermoplastic |
| Temperature range |
32°F to 158°F (0°C to 70°C), intended for indoor operation |
| Humidity range |
Up to 93% RH at 100°F (38°C) |
| Mounting |
Standard single-gang electrical box, 2-1/2 in. (64 mm) minimum depth, supplied by others |
| Standard end-of-line resistor |
4081-9004 harness, 6.8 kΩ, 1/2 W, for normally open contact supervision |
| Current-limited monitoring resistors |
4081-9003 (4.7 kΩ, 1/2 W) and 4081-9005 (1.8 kΩ, 1/2 W) |
| Compatible control panels |
4007ES, 4008, 4010, 4010ES and 4100ES series for IDNet; 4100, 4100U, 4100ES, 4120, 4020 and 2120 CDTs equipped with MAPNET II |
| Certifications |
UL certified to Standard 864; ULC certified; FM approved; CSFM certification 7300-0026:223; MEA (NYC) acceptance |
Installation notes
-
500 ft is a hard limit: total wiring distance from the IAM to the supervision resistor may not exceed 500 ft (152 m), and adding 2081-9044 overvoltage protectors for outdoor or electrically noisy runs cuts that to 400 ft (122 m).
-
T-sense is IDNet only: the quad-state current-limited mode that separates tamper from waterflow on one address requires IDNet communications and the correct end-of-line and current-limiting resistors. It is not available on MAPNET II.
-
Contact tracking is not universal: selecting the panel to track contact status rather than latch a momentary closure is not available with the 2120 CDT.
-
Seeing the LED after installation: the status LED is inside the box. Viewing it requires a trim plate with an LED window — 4090-9806 for a semi-flush box or 4090-9807 for a surface box — and both require the 4090-9810 mounting bracket, ordered separately. With a plain blank cover plate the LED is not visible.
-
Address setting is made under a resealable label on the module.
-
High-heat locations: rated to 158°F (70°C), which suits attic spaces and similar indoor applications, but it is an indoor device only.
-
Reference documents: installation instructions 574-331, field wiring diagram 842-073 for IDNet operation and 841-804 for MAPNET II operation.
Related models
-
4090-9051 — the same supervised IAM in an epoxy-encapsulated beige package with 18 AWG color-coded leads for extended exposure to high humidity; no status LED, 1-9/16 in. x 1-9/16 in. x 9/16 in.
-
4090-9806 / 4090-9807 — galvanized steel trim plates with an LED viewing window for semi-flush and surface mounted boxes
-
4090-9810 — mounting bracket that fixes the IAM to the box and provides screw holes for the trim plates; required for either plate
-
2081-9044 — overvoltage protectors for outdoor wiring or electrically noisy applications
FAQ
Does the 4090-9001 need a separate power supply?
No. It takes power and communications from the two-wire IDNet or MAPNET II circuit.
What is the maximum wiring distance from the IAM to the contacts?
500 ft (152 m), or 400 ft (122 m) with 2081-9044 overvoltage protectors.
Is T-sense available on MAPNET II?
No. The quad-state T-sense mode is IDNet only.
Specifications taken from the Simplex data sheet "Multi-Application Peripherals — IDNet and MAPNET II Communicating Devices, Individual Addressable Modules (IAMs)," document S4090-0001-12 (8/2016). Manufacturer specifications are subject to change without notice.
