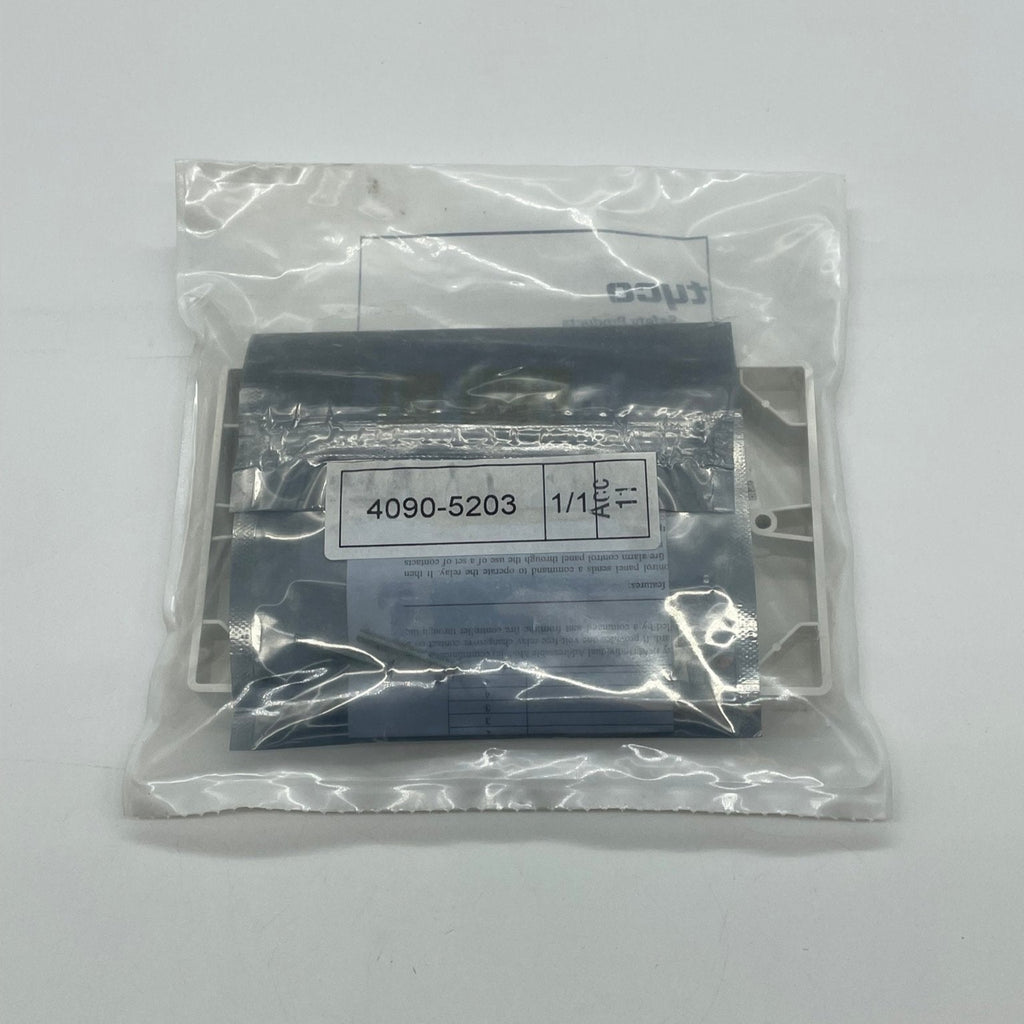

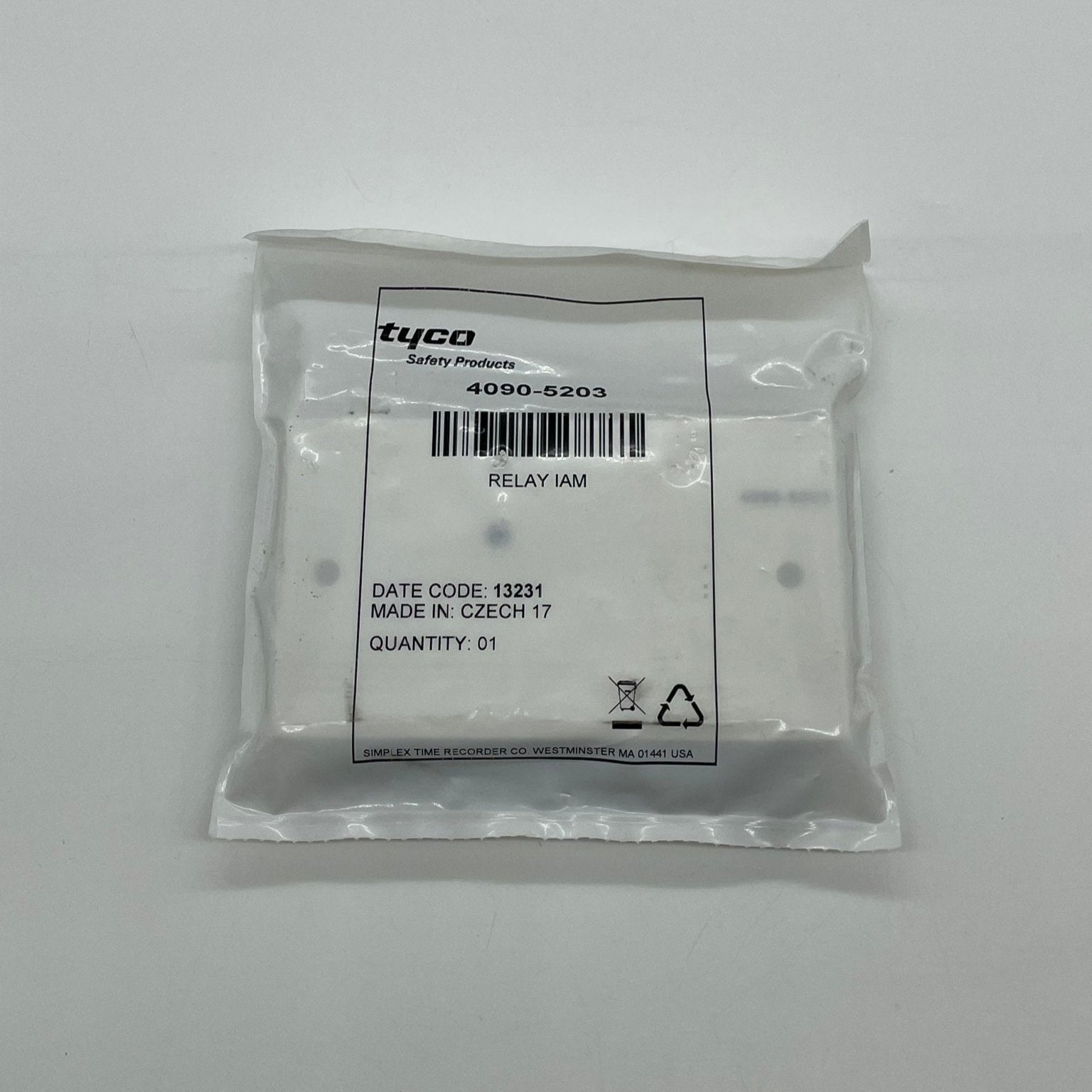

Simplex 4090-5203 is the Relay IAM, an MX Technology addressable module with a single relay output programmed from the MX Loop. Simplex lists applications such as signaling fire conditions to plant, machinery, fire doors, dampers and security systems. It works with Simplex 4100ES, 4010ES and 4100U fire alarm control panels fitted with an MX Loop Module.
Specifications
| Function |
One relay output, programmable from the MX Loop; relay coil is monitored |
| Contact rating |
2 A at 24 VDC |
| MX Loop current |
0.5 mA standby; 4.5 mA in alarm |
| Mounting |
In a cover assembly on a standard 2-gang MK box; cover gives access to the address setting port and shows the LED status indicator |
| Wiring connections |
Terminal blocks for 20 to 14 AWG (0.5 to 2.5 mm²) |
| Operating temperature |
32 °F to 120 °F (0 °C to 49 °C) |
| Humidity |
Up to 93% RH at 90 °F (32 °C) |
| Listing |
UL listed to Standard 864 |
| Installation instructions |
579-930 |
Compatibility and installation notes
- Requires an MX Loop Module in the host 4100ES, 4010ES or 4100U panel; Simplex refers to data sheet S4100-0059 for the loop module.
- The address is set with the MX Service Tool (516.800.918, ref. MX Model 801AP); 517.035.007 is the replacement module front cover.
Related models
- 4090-5202: Dual Input IAM
- 4090-5204: Signal IAM, 2 A NAC spur
- 4090-5205: Monitor ZAM for conventional detectors
-
4090-5206: Line Isolator Module
Documents
Specifications from Simplex data sheet S4090-0012-2, 3/2012, IAMs (Mini, Dual, Signal, and Relay); Monitor ZAMs, and Line Isolator Modules. Manufacturer specifications are subject to change.
