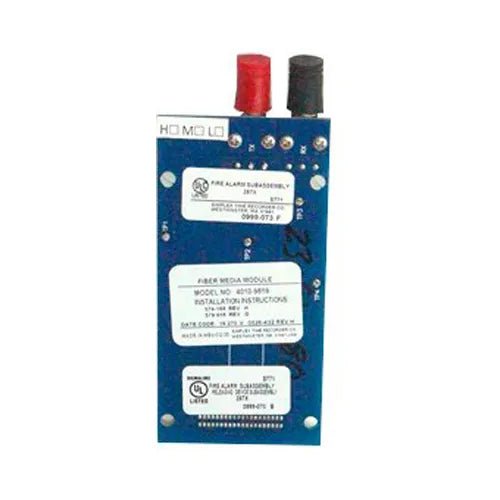

Simplex 4010-9819 is the fiber optic network media card for the Simplex 4010ES fire alarm control panel. It is not a block space module of its own: it mounts directly on the 4010-9922 modular network interface card, which requires two media modules. The wired alternative is the 4010-9818 network media card, which mounts the same way.
The 4010ES block space options include fire alarm physical bridge and network interface cards for peer-to-peer fire alarm network communication, supporting either Class B or Class X operation. Simplex lists the 4010-9819 in the 4010ES block space option card selection with a supervisory current of 25 mA and an alarm current of 25 mA, and refers to data sheet S4100-0056 for network communications details.
Specifications
| Model |
4010-9819 network media card, fiber optic |
| Panel |
Simplex 4010ES |
| Mounts on |
4010-9922 modular network interface card |
| Block space |
None (mounts to 4010-9922) |
| Supervisory current |
25 mA |
| Alarm current |
25 mA |
Installation notes
- The 4010-9922 modular network interface card requires two media modules
- The 4010-9818 is the wired media card; it also mounts to the 4010-9922
- Network media modules mount directly to the 4010ES network interface card
- Include the 25 mA card current in the panel battery calculation
Related models
- 4010-9818: wired network media card
- 4010-9922: modular network interface card
Documents
FAQ
What does the 4010-9819 mount on?
It mounts directly on the 4010-9922 modular network interface card in a 4010ES panel and uses no block space of its own.
How many media cards does a network interface card need?
The 4010-9922 requires two media modules, which can be fiber (4010-9819) or wired (4010-9818).
How much current does it draw?
25 mA in both supervisory and alarm conditions.
What kind of network does it support?
Network interface cards provide peer-to-peer fire alarm network communication with either Class B or Class X operation.
