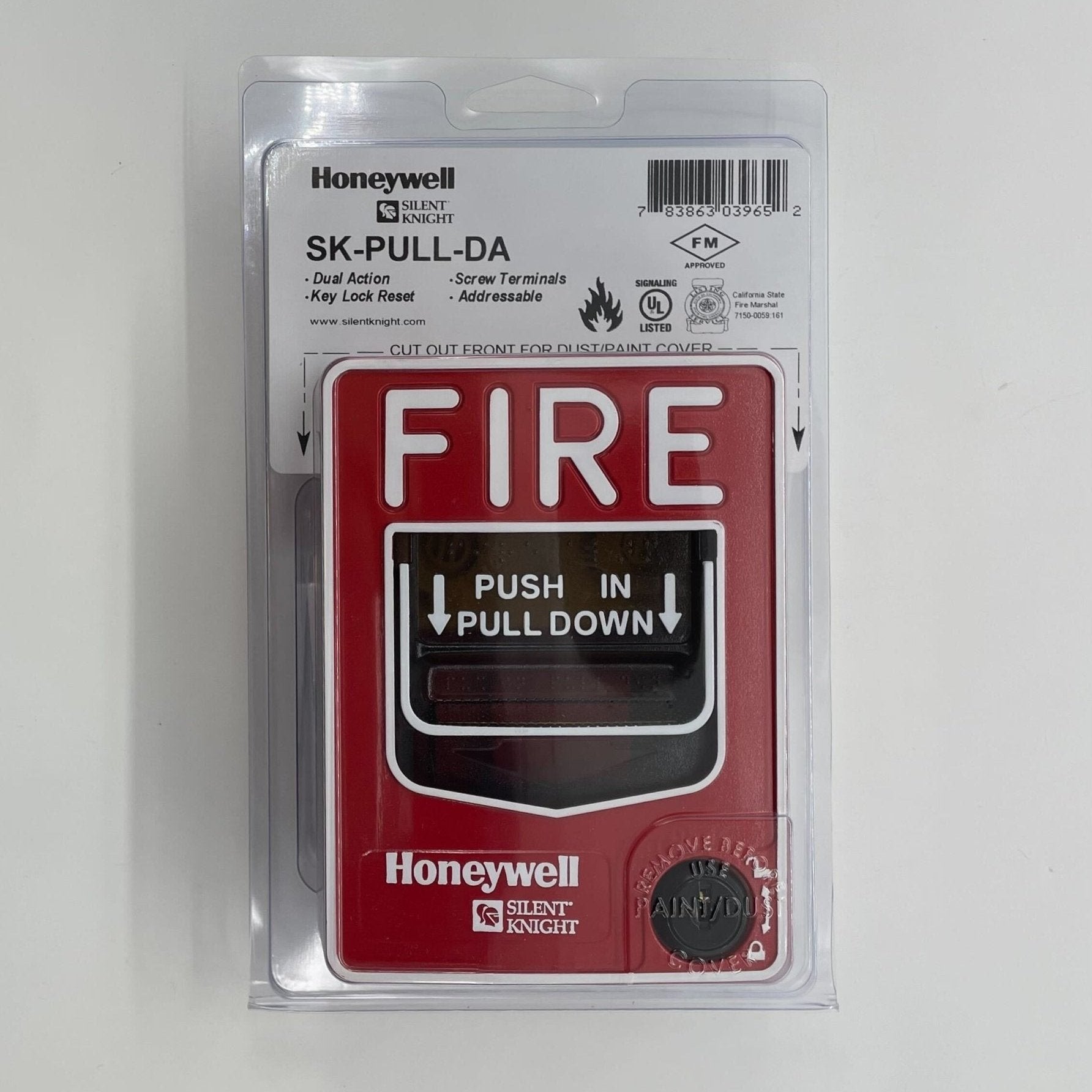

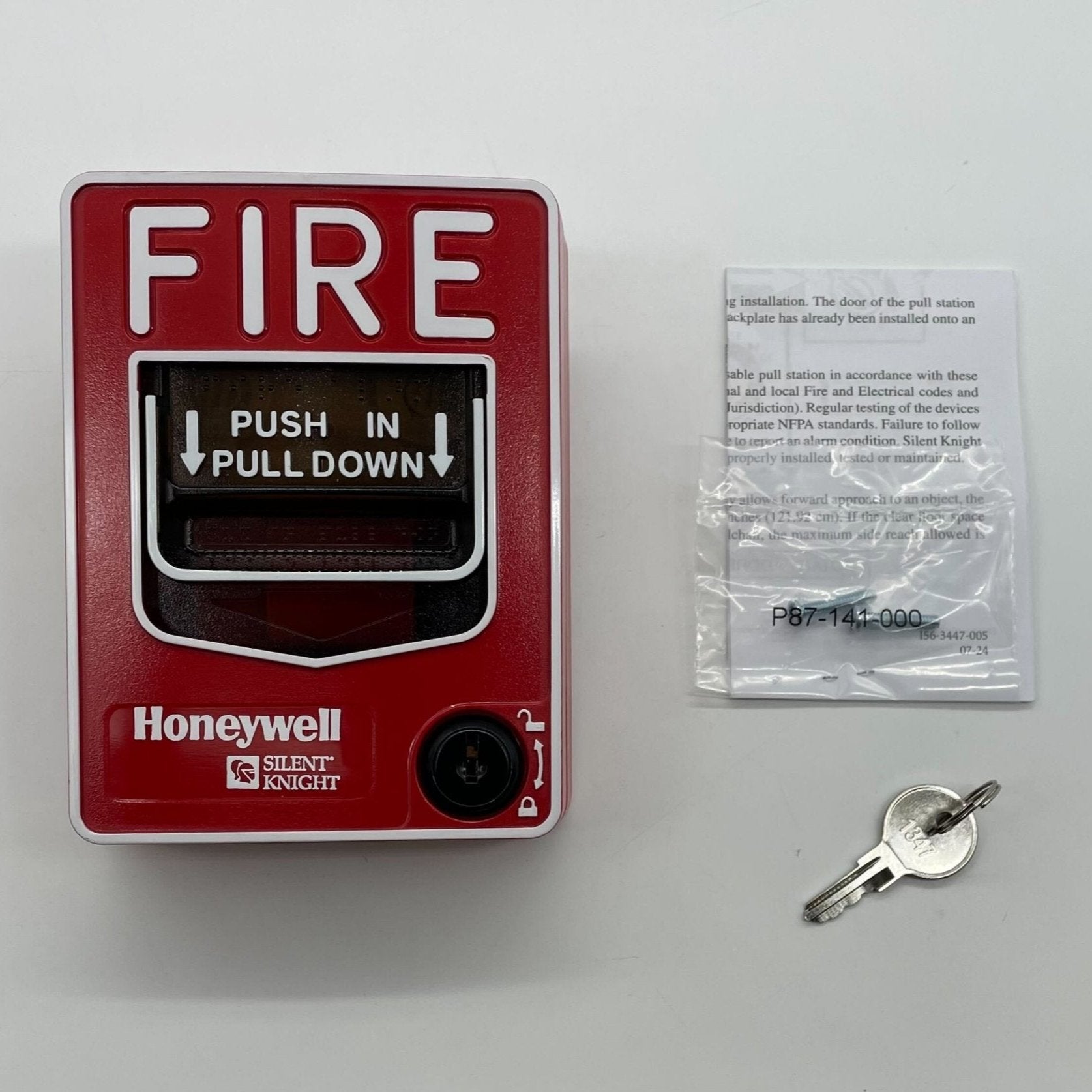

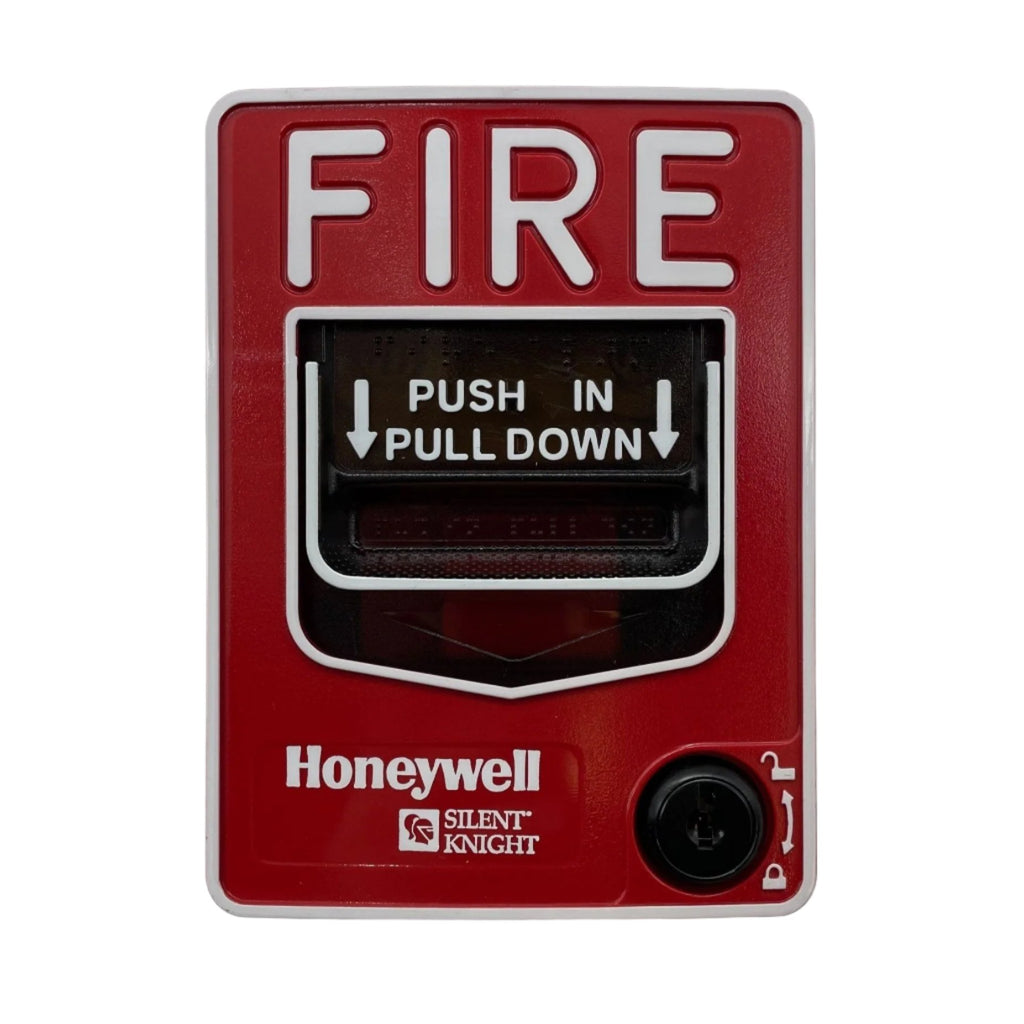

Silent Knight SK-PULL-DA is a dual-action addressable manual pull station for Silent Knight addressable fire alarm systems. It requires two motions to activate, which helps reduce accidental activations while keeping manual alarm initiation fast. Each station is individually addressable, so the control panel identifies the exact location of an alarm.
The installer can open the station without causing an alarm condition. A dual-color LED visible through the handle blinks green in normal operation and stays steady red in alarm. The handle latches in the down position and the word "Activated" appears, clearly showing the station has been pulled. A key-operated test and reset lock uses a key that matches compatible Silent Knight FACP locks. Rotary address switches speed installation, and Braille text on the handle supports accessibility.
Specifications
| Type |
Addressable dual-action pull station |
| Operating voltage |
15-32 VDC |
| Operating current |
300 µA average (LED flashing) |
| Switch |
SPST normally open, closes on activation |
| Housing |
LEXAN polycarbonate; 5.5 in. H x 4 in. W |
| Wire gauge |
Up to 12 AWG |
| Environment |
32°F to 120°F; 10% to 93% non-condensing |
| Accessibility |
Meets ADAAG operating mechanism guidelines; 5 lb maximum pull force |
| Standard |
UL 38 certified |
| Accessories |
BG-TR trim ring; SB-I/O surface backbox |
Features
- Suited to commercial, industrial, healthcare and educational facilities
- Two-step operation reduces accidental activations
- Key-operated reset
- Rotary address switches
FAQ
Is the SK-PULL-DA single or dual action?
Dual action: two motions are required. The SK-PULL-SA is the single-action version.
Can the station be opened without causing an alarm?
Yes. The installer can open the station without causing an alarm condition.
How is it reset?
With the key; the key-operated test and reset lock matches compatible Silent Knight FACP locks.
