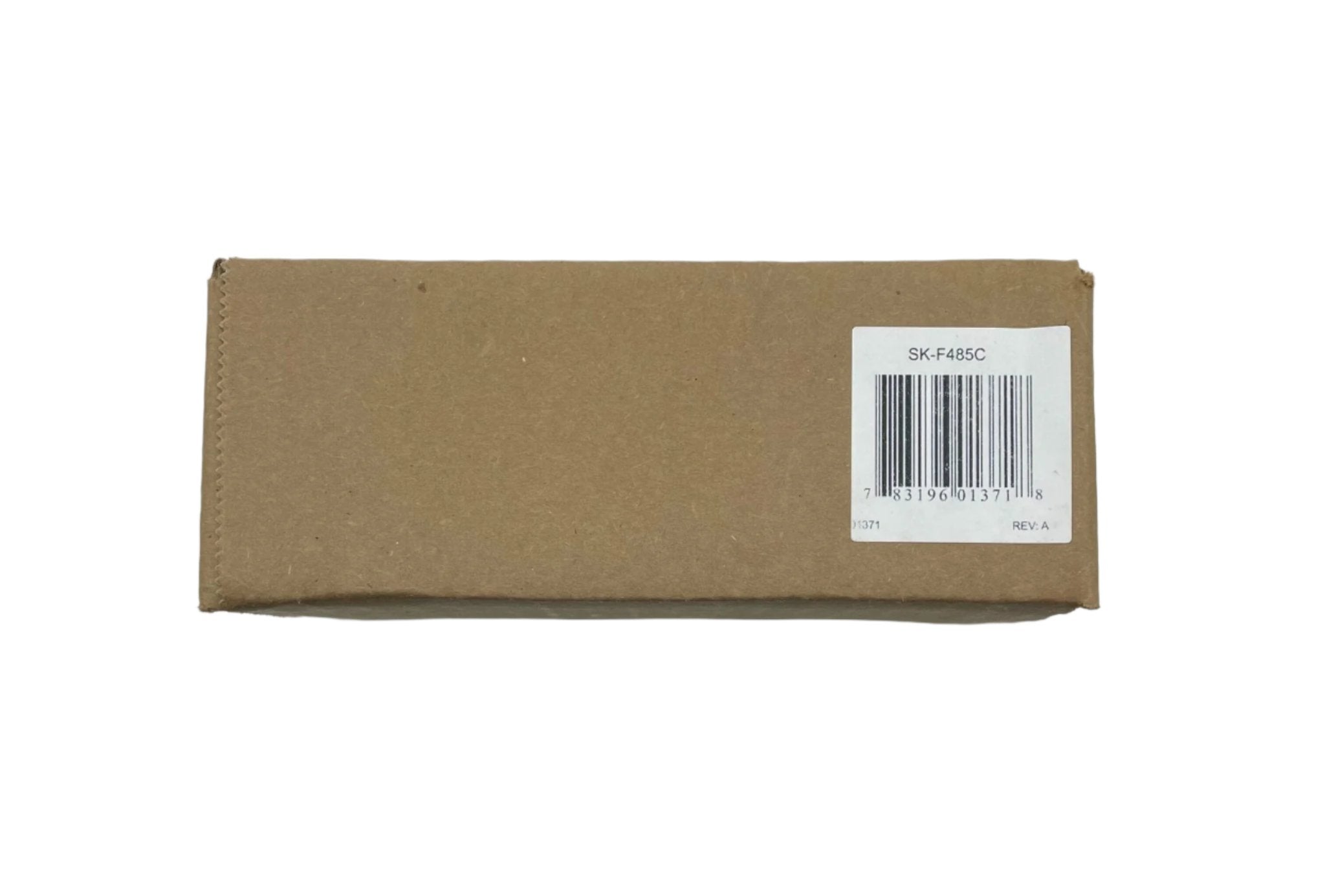

Silent Knight SK-F485C — fiber to SBUS converter card for Silent Knight and Farenhyt addressable fire alarm control panels.
Used in pairs, the SK-F485C takes the panel SBUS off copper, onto fiber-optic cable and back again, so SBUS equipment such as a 5895XL power module can sit in another building without copper between buildings. It mounts on standoffs in a compatible panel or power supply cabinet, or in a 5815RMK remote mounting kit, which holds two. It is not for networking panels.
- Fiber: duplex 62.5 micron multimode, duplex ST connectors for Tx and Rx
- Distance up to 1.0 mile (1.6 km); maximum attenuation 5.5 dB
- Data rate 115.2 kbit/s with automatic half-duplex transmit control
- Power 9–35 VDC at 125 mA maximum
- Panels per data sheet 350806: 6820, 6820EVS, 6808, 6700, 5700, 5808, 5820XL, 5820XL-EVS; power modules 5895XL and 5496
- 4.75 × 4.25 × 1.0 in.; 32–120 °F; UL 864 listed
One link needs two SK-F485C cards. With the 5808, 5700 or 6700 the 5815RMK kit is required. Farenhyt IFP panels use the same SK-F485C.
