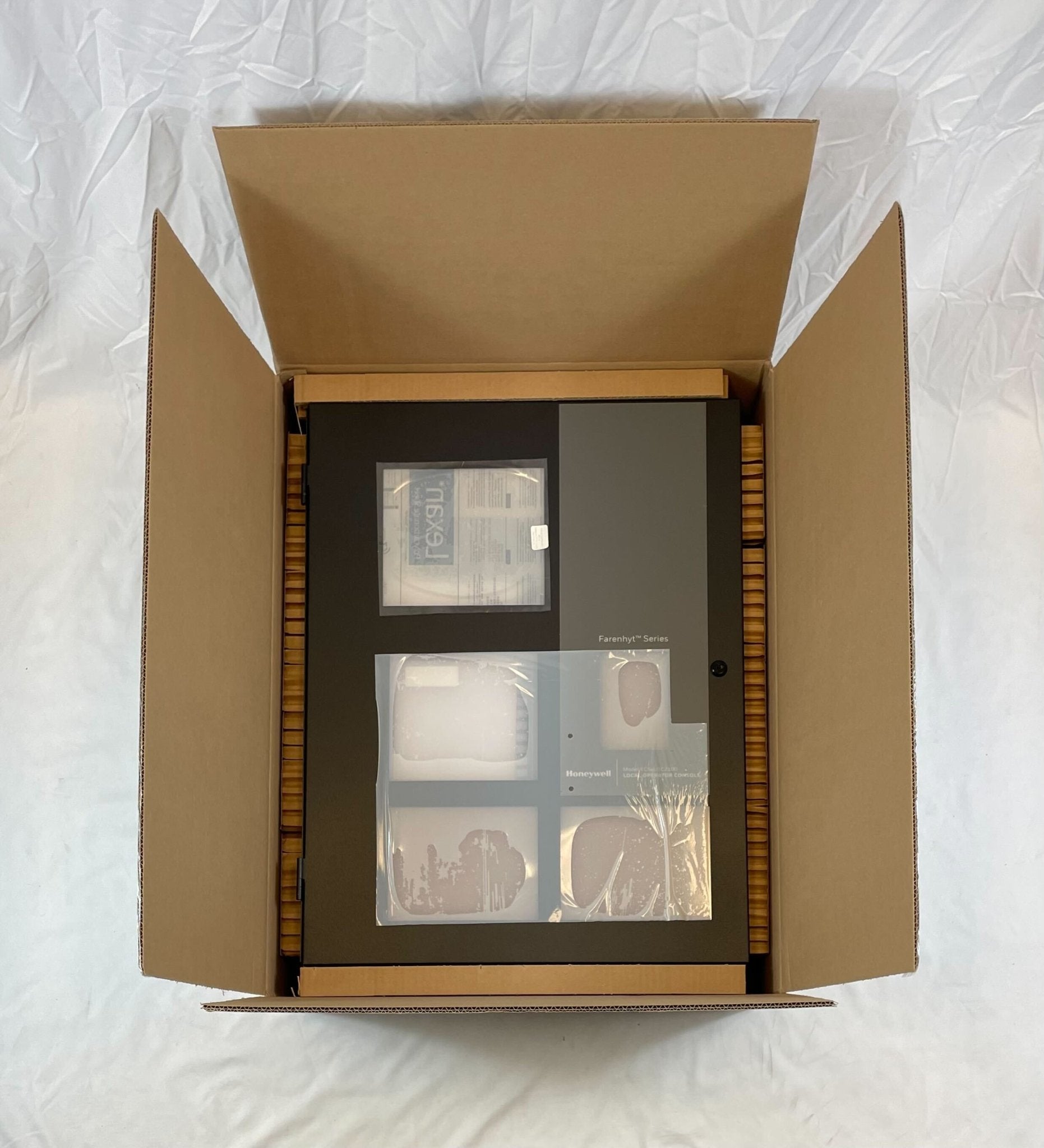

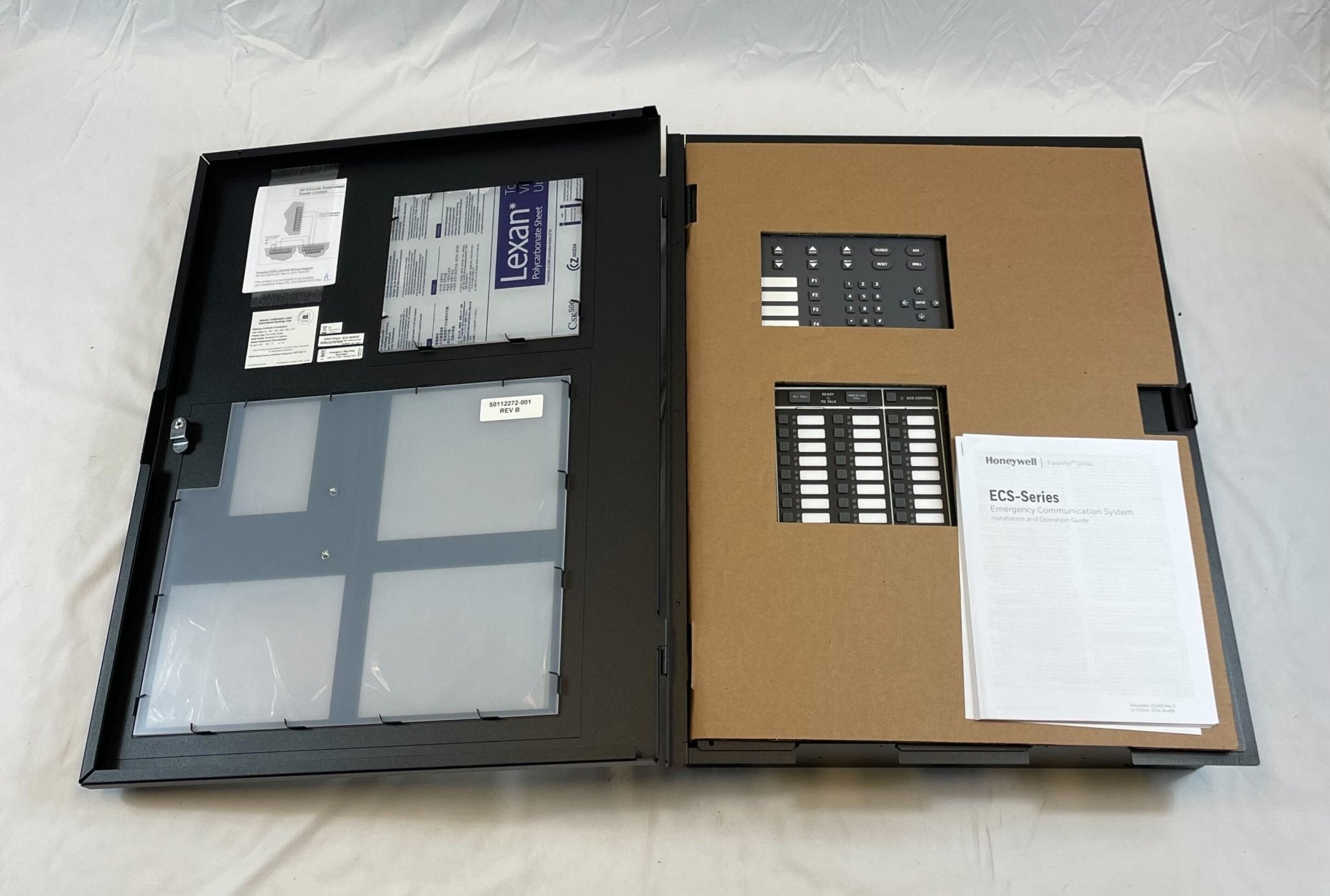

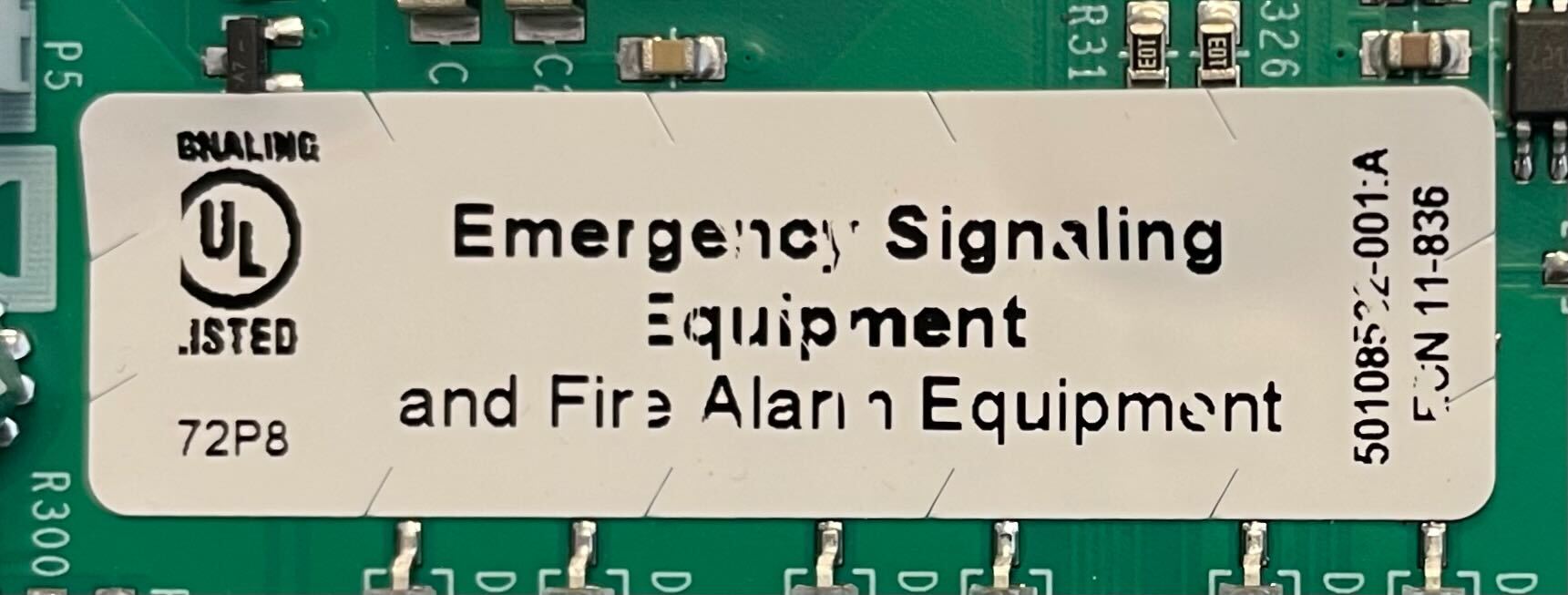

Silent Knight ECS-LOC2100B is a local operating console in a black cabinet for the ECS Series Emergency Communication System. It pairs a supervised remote microphone with an annunciator and meets UL requirements for a local operating console (LOC).

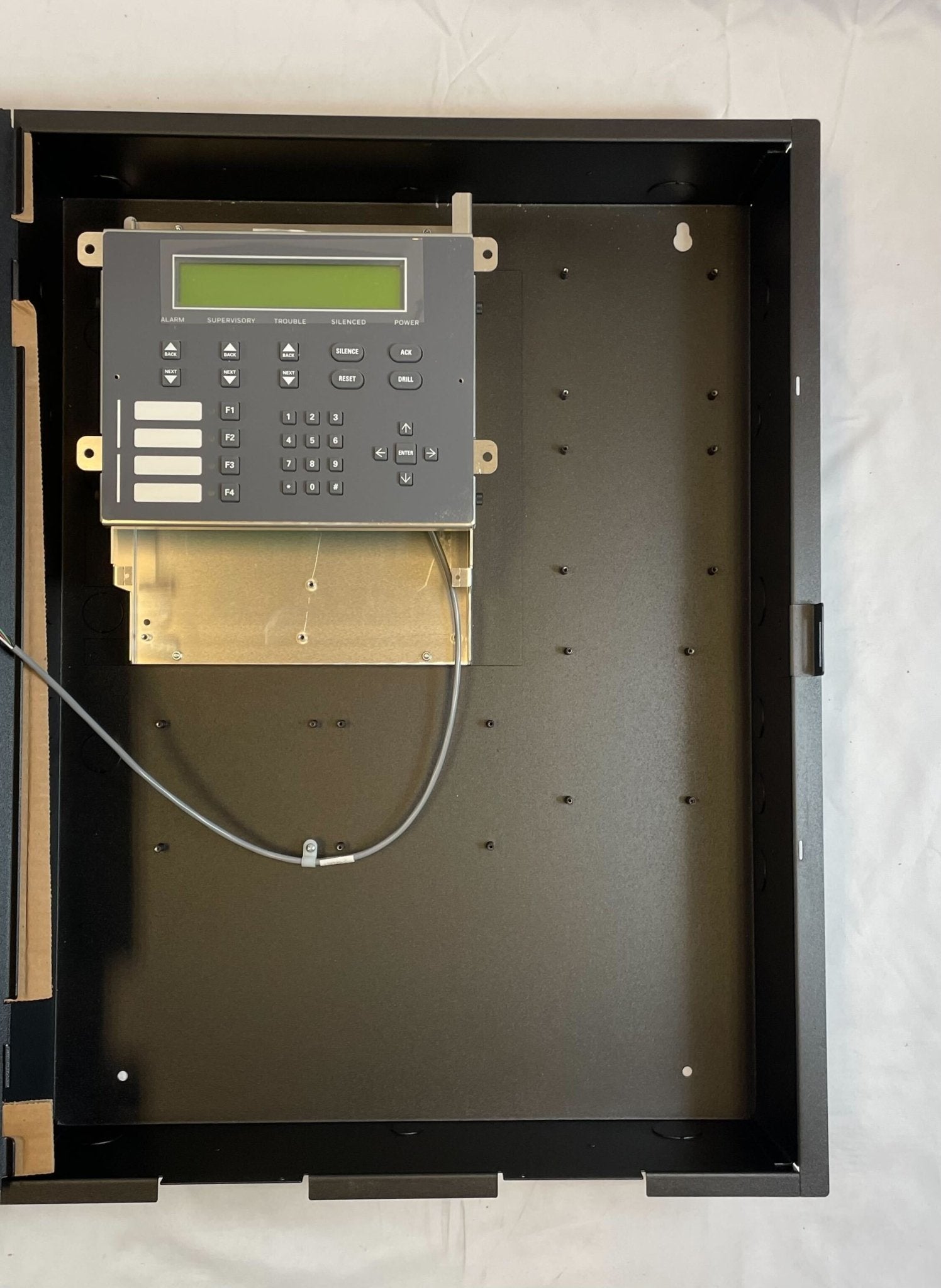

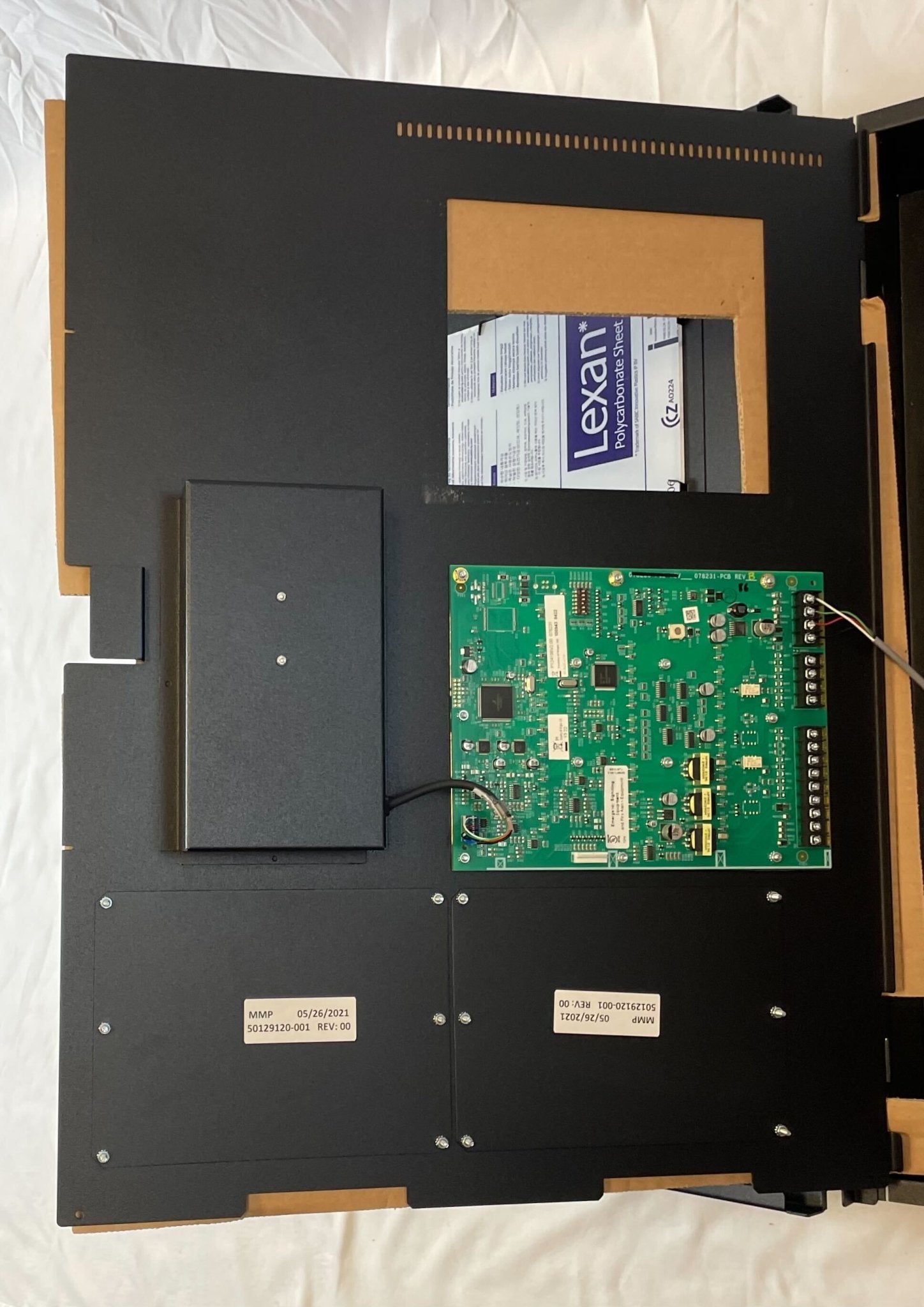

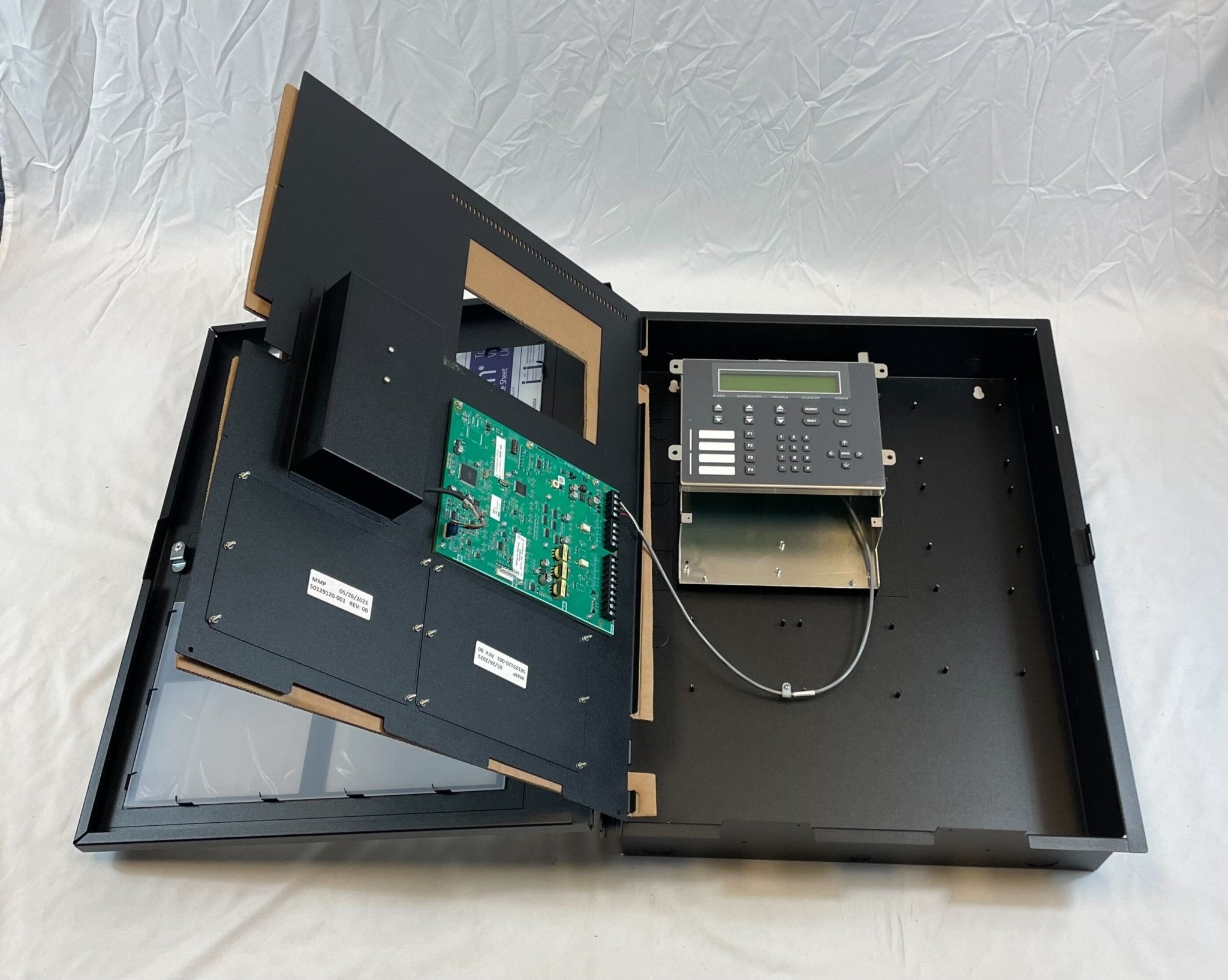

It consists of an ECS-RVM Remote Voice Module and its RA-2000 keypad annunciator. The RVM interfaces with the emergency communication system, and the annunciator can perform complete operation of the fire alarm system, including silencing and resetting. An IFP-2100ECS or IFP-2000ECS panel supports up to 15 consoles in any combination of ECS-LOC, ECS-LOC2100 and ECS-LOC2100B units.
Features

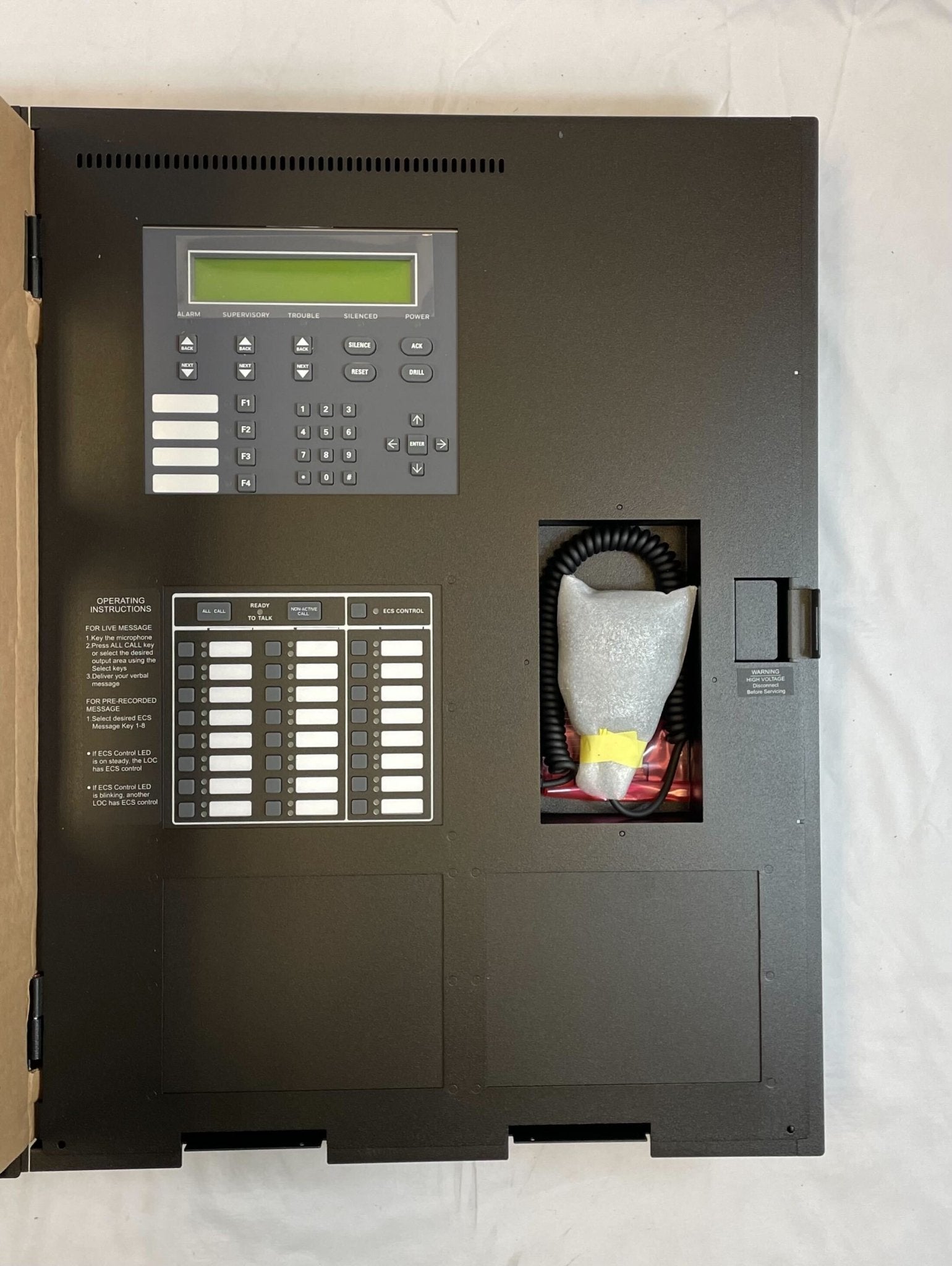

- On-board supervised microphone for live voice communication

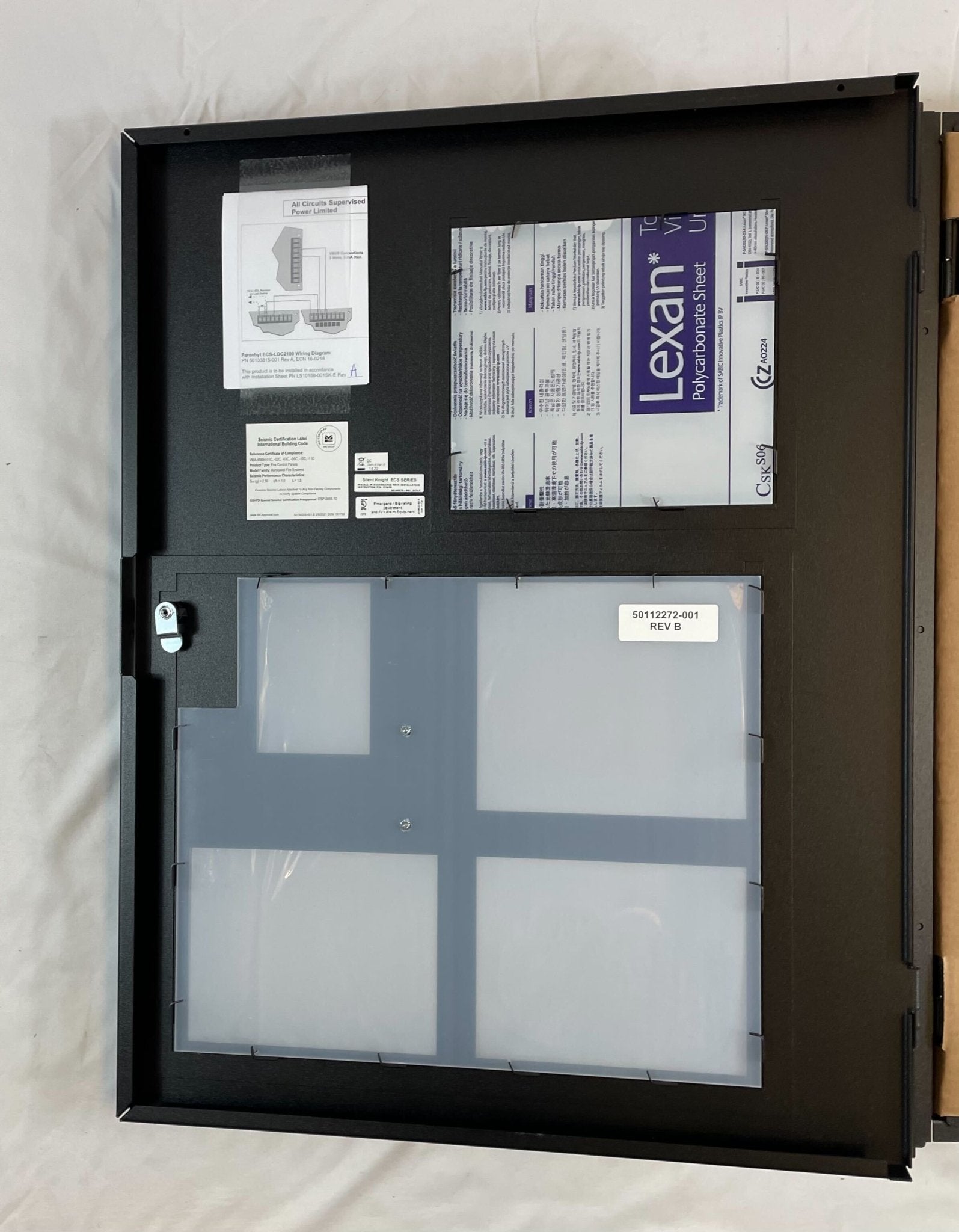

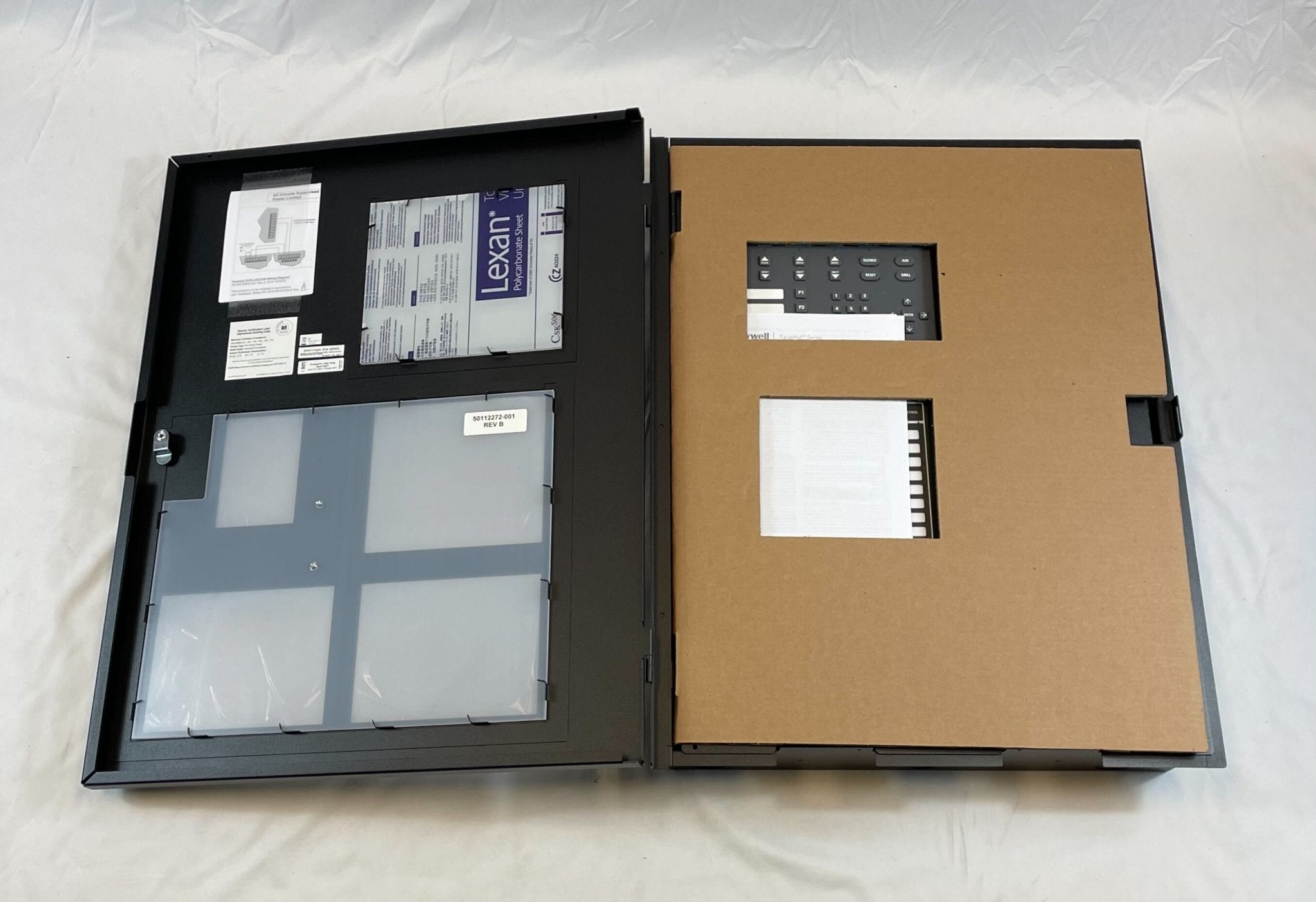

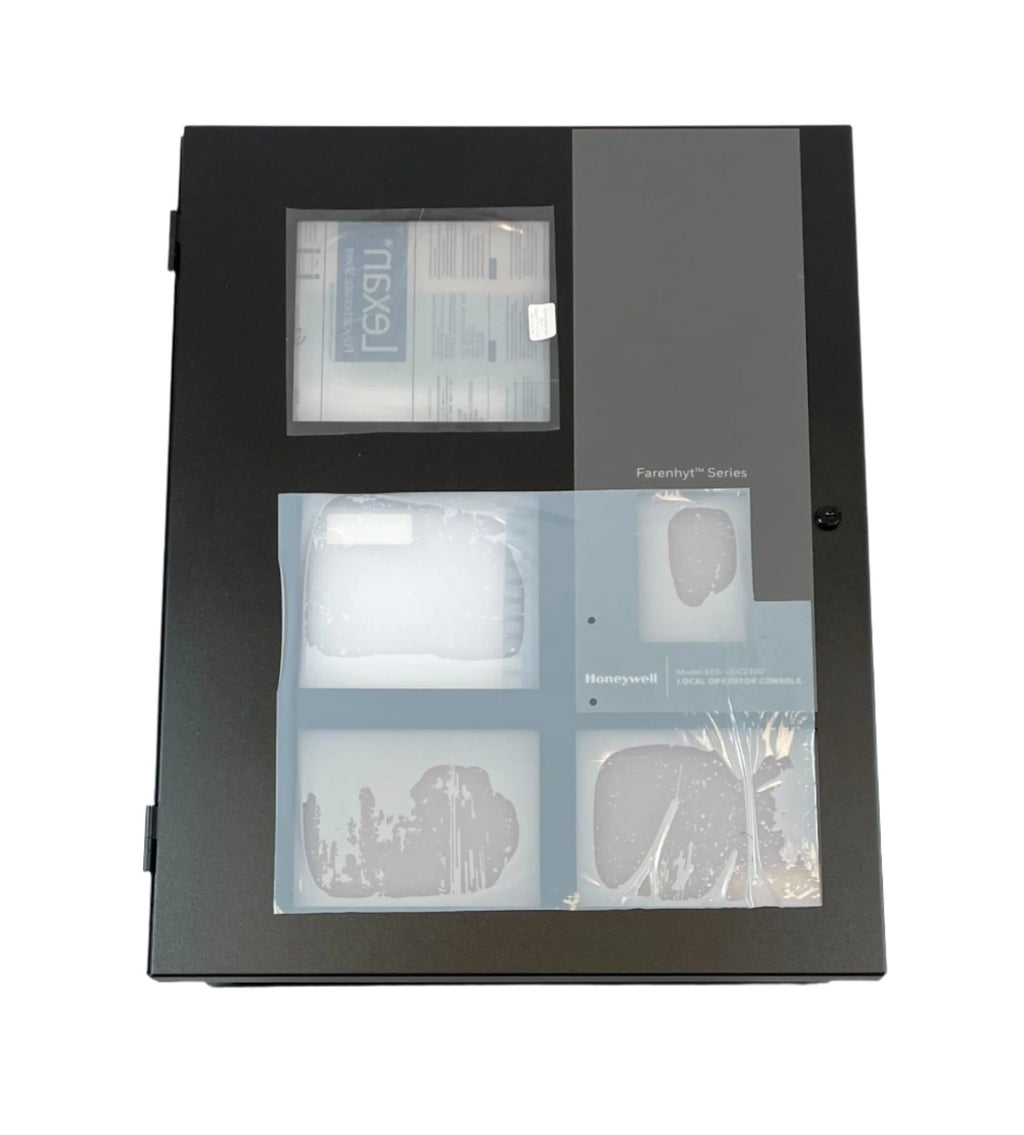

- Black cabinet (the ECS-LOC2100 is the red version)
- Programmable trigger inputs from an external source to the ECS-RVM or the 5880 module, with up to eight inputs on the 5880
- Up to 128 mappable speaker circuits using ECS-50W, ECS-125W or ECS-DUAL50W units, mapped to 64 buttons that control selected output groups
- All Call and Non-Active Call buttons to select all active or all non-active output groups quickly
- Six-wire connection to the ECS system: two wires for the voice bus and four for the SBUS
