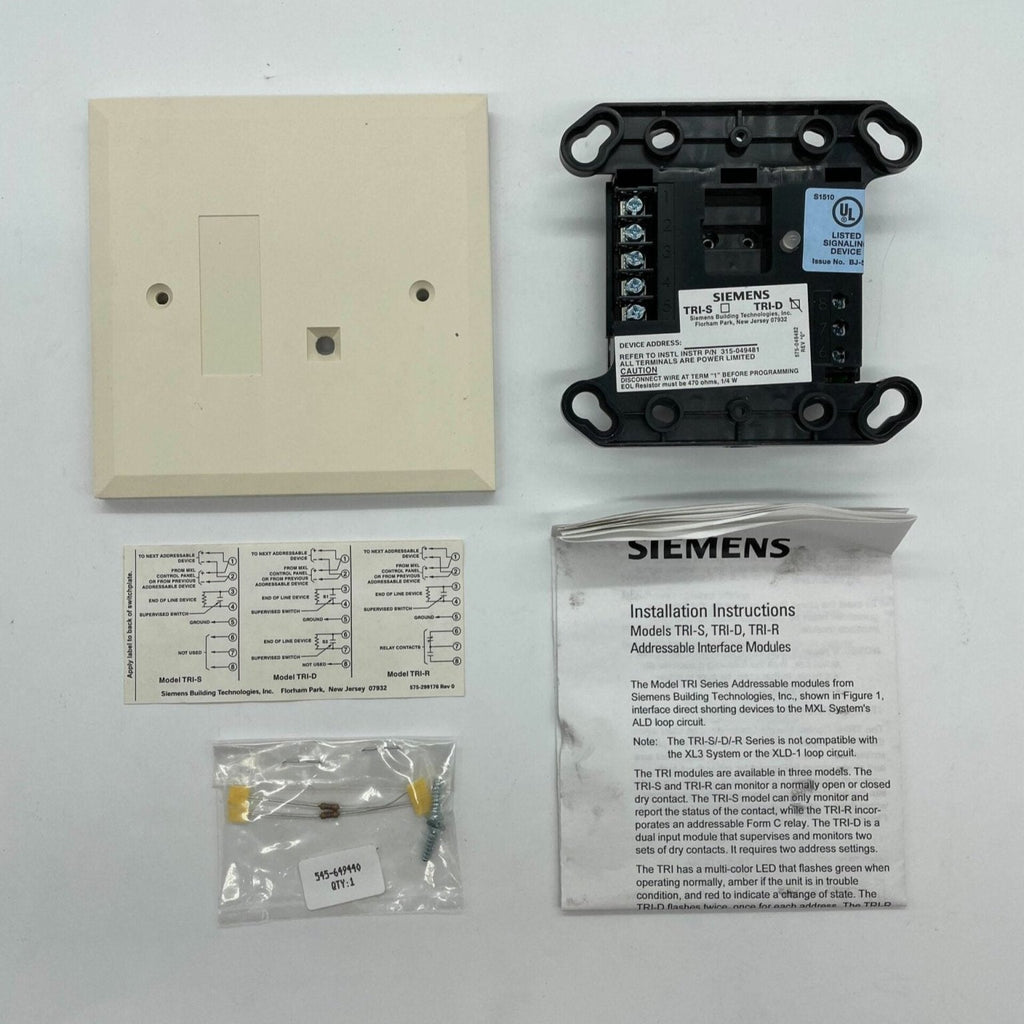

Siemens TRI-D — dual input intelligent initiating interface module, part number 500-896226, for FireFinder XLS and MXL control panels.
The TRI-D supervises two separate sets of normally open dry contacts from one enclosure, which is why Siemens names a waterflow switch and its matching valve tamper switch as the typical application. It differs from the single input members of the series in taking two address settings.
- Two supervised inputs for normally open dry contacts
- Requires two address settings on the addressable circuit
- Current draw 1.5 mA, active or standby; two-wire operation with dynamic supervision
- Electronic addressing set with a Model DPU or FPI-32 programmer
- Multi-color LED, flashing twice, once per address: green normal, amber trouble, red change of status
- Mounts in a 4 in. square or double-gang box; UL and ULC certified, CSFM and NYCFD Approved
TRI-S (500-896225) is the single input module and TRI-R (500-896224) the single input module with an addressable Form C relay. The later HTRI-D and XTRI-D are separate lines, not drop-in equivalents: HTRI-D needs only one address.
Documents
FAQ
Which panels is the TRI-D used with?
Siemens lists the TRI series for the FireFinder XLS and MXL fire alarm control panels, connecting to the MLC loop on FireFinder XLS or the ALD loop on MXL.
How many addresses does the TRI-D use?
Two. The TRI-D supervises two separate sets of normally open dry contacts and requires two address settings, which is why Siemens names a waterflow switch and its valve tamper switch as the typical pairing.
How is the address set?
Electronically, with the Model DPU or FPI-32 programmer/tester. There are no jumpers, DIP switches or rotary dials on the module.
Is the TRI-D still current?
No, the TRI-D is discontinued. The XTRI-D dual-input interface module is offered as its replacement; confirm it is supported by your panel before ordering.
