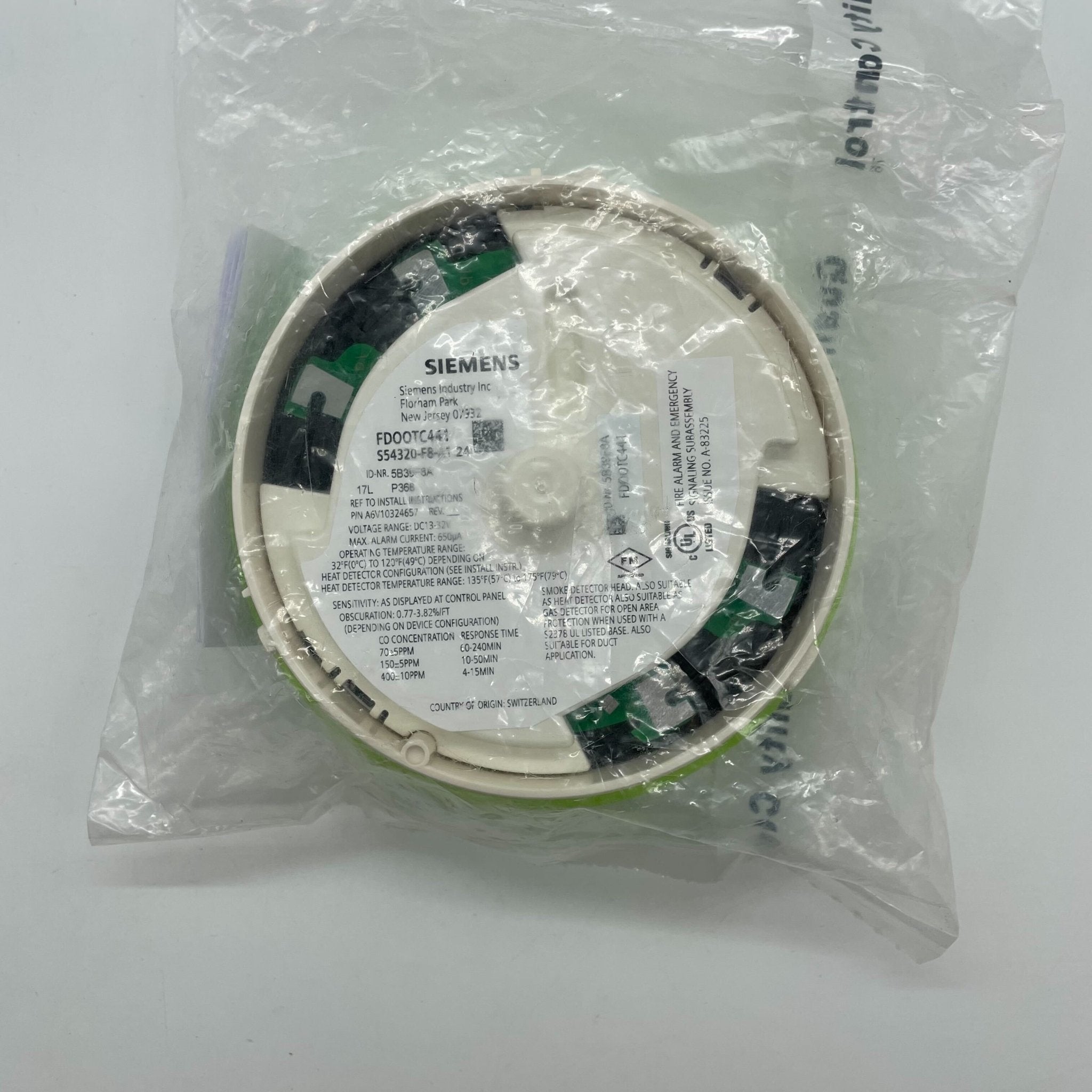

Siemens FDOOTC441 (S54320-F8-A1) — two-wire addressable multi-criteria fire and CO detector for the Desigo Fire Safety platform, combining dual optical (forward and backward light-scattering) sensing, thermal sensing and an electrochemical carbon monoxide sensor in one ceiling footprint.
The FDOOTC441 takes a single address on the signalling line circuit while functioning as a multi-criteria smoke detector, a heat detector with field-selectable temperature and rate-of-rise settings, a direct in-duct detector, a CO supervisory sensor, and an NFPA 76 Very Early Warning Fire Detector. ASAtechnology (Advanced Signal Analysis) combines the sensor signals through a neural-network algorithm so the detector can distinguish real products of combustion from dust, steam and aerosols, responding to both smouldering and flaming fire signatures. The CO sensor gives faster response on fires with incomplete combustion and is rated for a 10-year lifetime. Built-in ISOtechnology supplies the NFPA 72 Class X SLC isolation feature, and because the detector is photoelectric rather than ionization there is no radioactive source to dispose of.
Specifications
| Part number |
S54320-F8-A1 |
| Sensors |
Dual optical (forward and backward scatter), thermal, and carbon monoxide |
| Operating temperature |
+32°F to +120°F (0°C to +49°C) |
| Heat detector range |
+135°F to +175°F (+57°C to +79°C), field selectable |
| Detector sensitivity range |
UL certified 0.88 to 3.35% per ft.; NFPA 76 VEWFD 0.2% per ft. pre-alarm, 1.0% per ft. alarm |
| Programmable supervisory temperature warning |
-4°F to +120°F (-20°C to +49°C), with compatible FACPs |
| Programmable supervisory CO-gas warning |
30 to 600 ppm, with compatible FACPs |
| CO concentration response times |
70±5 ppm in 60–240 min; 150±5 ppm in 10–50 min; 400±10 ppm in 4–15 min |
| Air velocity |
0 to 4,000 fpm open area; 0 to 4,000 fpm direct in-duct |
| Air pressure |
No effect |
| Active, standby current |
0.75 mA |
| Application profiles |
26, field configurable |
| Relative humidity |
0 to 95%, non-condensing |
| Compatible panels |
Desigo Fire Safety FC2005 (50-point), FC2025 (252-point), FC2050 (504-point), FV2025 and FV2050 (with Intelligent Voice Communication), Desigo Modular; FireFinder XLS and XLSV |
| Mounting base |
DB-11 series mounting bases; ordered separately |
| Standards |
UL 268 7th edition certified, UL 268A, UL 521, UL 2034, UL 2075; ULC certified; FM and CSFM Approved; complies with NFPA 25, 72 and 76 |
Installation notes
-

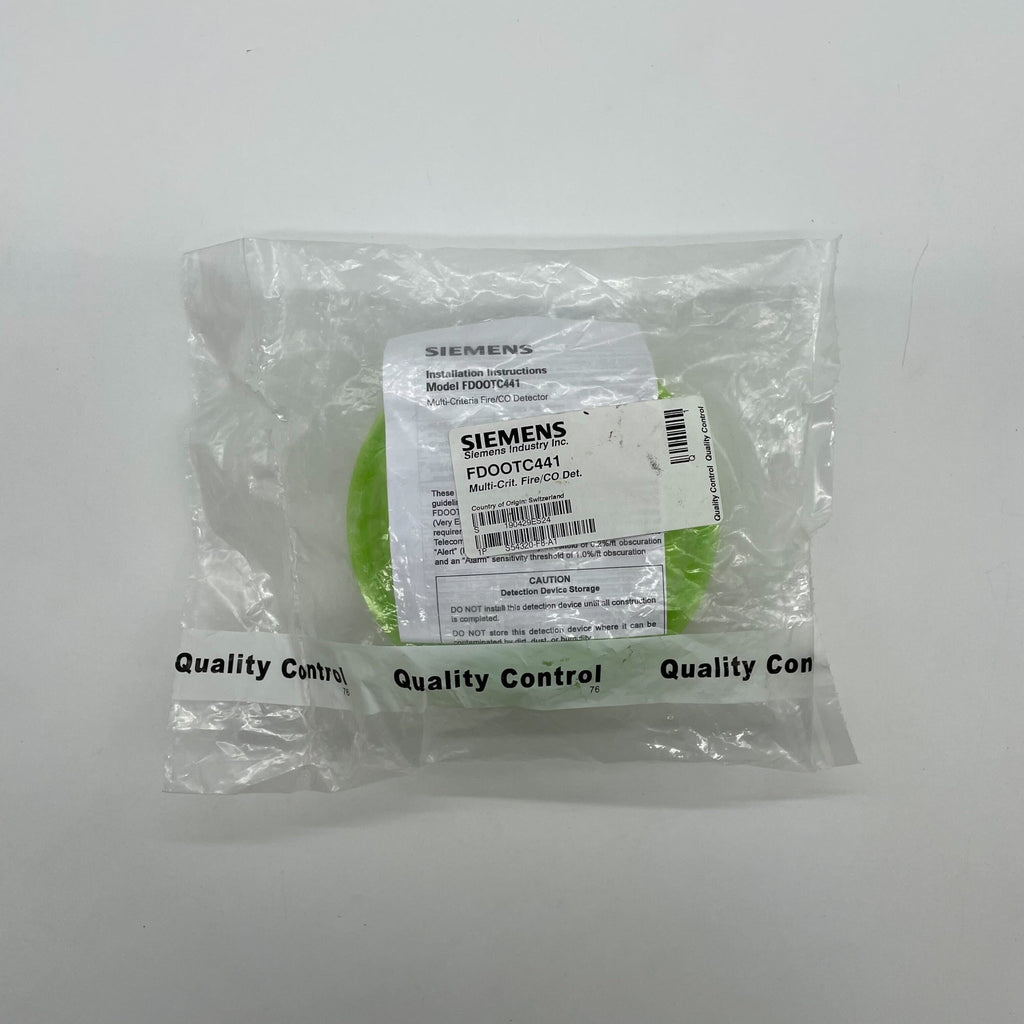

Base ordered separately: the head plugs into a DB-11-series base; the detector itself ships with a protective dust cover and should stay covered until construction is finished.
-
One address, several functions: the optical, thermal and CO elements can be configured for simultaneous or independent operation, so one address can report a multi-criteria fire alarm alongside independent heat and CO supervisory signals. Configure per installation manual P/N A6V10324657.
-
Direct in-duct certification: UL 268A certified to 4,000 fpm, so the same head covers open-area and duct applications — provided the duct application profile is selected.
-
CO cell lifetime: the carbon monoxide sensor is rated for 10 years. Plan replacement of the detector, not of the cell.
-
Low-temperature warning: configurable for sprinkler-pipe freeze warning per NFPA 25, when connected to a compatible FACP.
-
Sensitivity self-monitoring is automatic and reported at the panel in percent-per-foot, satisfying the NFPA 72 sensitivity-test requirement without a separate meter.
Related models
-
OOHC941 (S54320-F8-A2) — the identical detector with identical published technical data, catalogued for the Cerberus PRO platform (FC901/FC922/FC924, FV922/FV924) instead of Desigo Fire Safety
-
FDOOT441 — the dual-optical and thermal multi-criteria head without the carbon monoxide element
-
FDO421 (S54320-F4-A1) — photoelectric smoke detector only, on the same Desigo platform and base
-
FDT421 (S54320-F5-A1) — thermal-only heat detector for the same platform
Specifications taken from the Siemens data sheet "Desigo® Fire Safety Multi-Criteria Fire | CO Detector [with ASAtechnology™], Model FDOOTC441," document 6153 (February 2022, Rev. 9). Manufacturer specifications are subject to change without notice.
FAQ
Is a base included with the FDOOTC441?
No. The detector plugs into a DB-11 series mounting base, ordered separately. It ships with a protective dust cover.
Which panels support it?
Desigo Fire Safety FC2005, FC2025, FC2050, FV2025 and FV2050, Desigo Modular, and FireFinder XLS and XLSV. The OOHC941 is the equivalent detector for Cerberus PRO panels.
Can it be used in ducts?
Yes. It is UL 268A certified for direct in-duct use up to 4,000 fpm when the duct application profile is selected.
How long does the CO sensor last?
The carbon monoxide sensor is rated for a 10-year lifetime.
