Rixson FM998 — flush wall mount electromagnetic door holder for fire and smoke barrier doors, wired concealed into an outlet box.

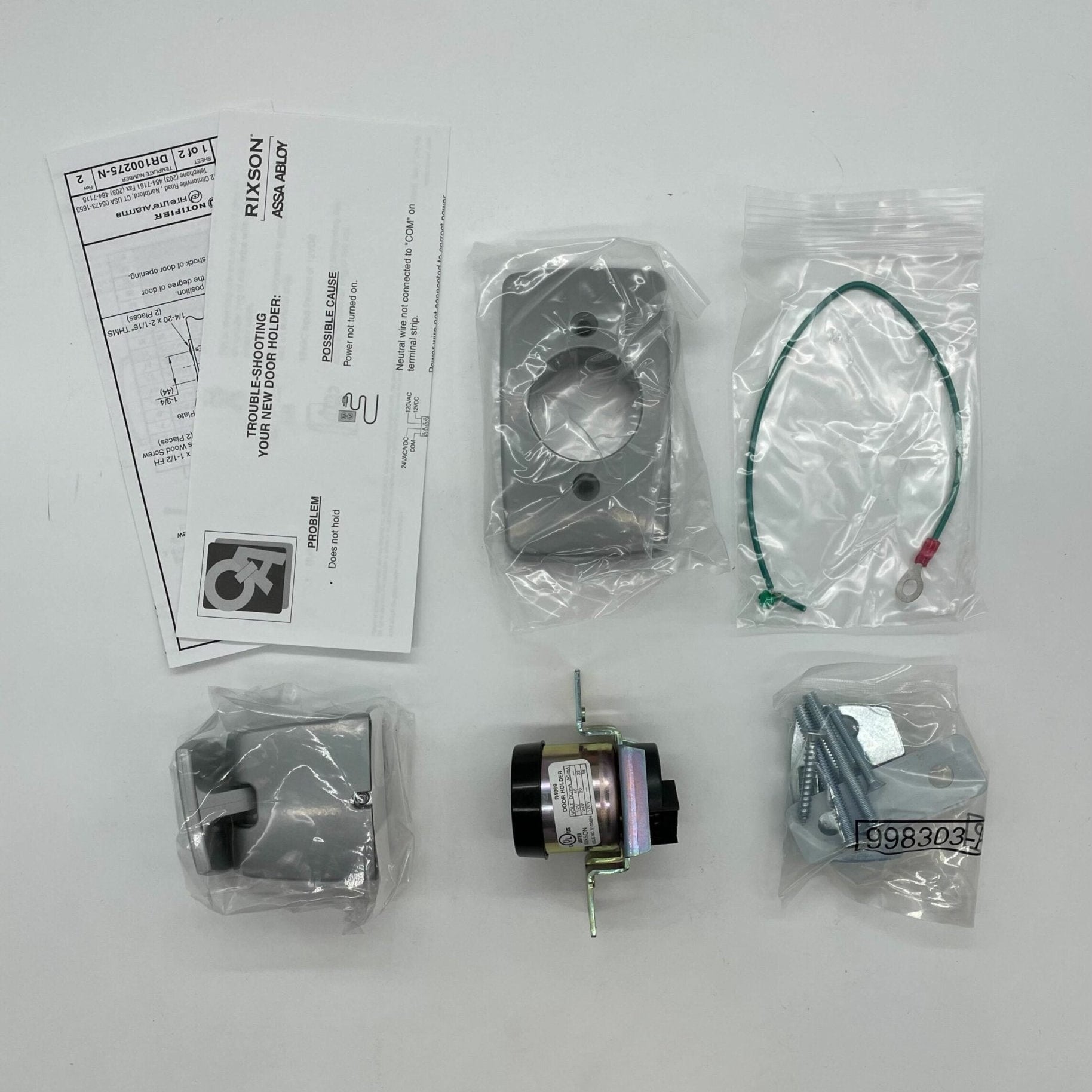

FM Series holders keep a fire or smoke door standing open and let it go the instant power is interrupted by a smoke detector, panel or remote switch. The assembly is a wall electromagnet plus an armature contact plate on the door. A separate closing device is required: this releases the door, it does not close it.
- Tri-voltage: 120 VAC at 0.020 amp, 24 VAC/VDC at 0.020 amp, 12 VDC at 0.040 amp
- 25 to 40 lb. holding power; fail-safe on loss of power
- Projection 3-5/8" (92 mm); 2" × 4" × 1-3/4" box
- Protected against surges to 600 V on AC models
- Mount two to four ft. above the floor
- Shipping weight 2-1/2 lb., UL certified
FM996 is the surface wiring wall version, projecting 4-1/8" onto a 1-1/2" adapter housing, and FM980 is the floor mount holder for a single door. FM900-50, FM900-75 and FM-900-100 are 1/2", 3/4" and 1" spacers, accessories not holders. Rixson literature numbers the matching holder 998M.
Documents
FAQ
What voltages does it run on?
It is multi-voltage: 12 VDC at 0.040 A, 24 VAC/DC at 0.020 A, or 120 VAC at 0.020 A.
What happens on power failure?
Operation is fail-safe: on loss of power the door is released to close by its closer. Doors can still be opened or closed manually at any time.
Does the FM998 close the door?
No. It only holds the door open and releases it; a separate door closer is required.
How is the FM998 wired?
It is the recessed model with concealed wiring. The FM996 is the surface-mount version.
