TWO-WAY FAN COIL VALVE, 3/4 IN. SWEAT, 8.0 CV

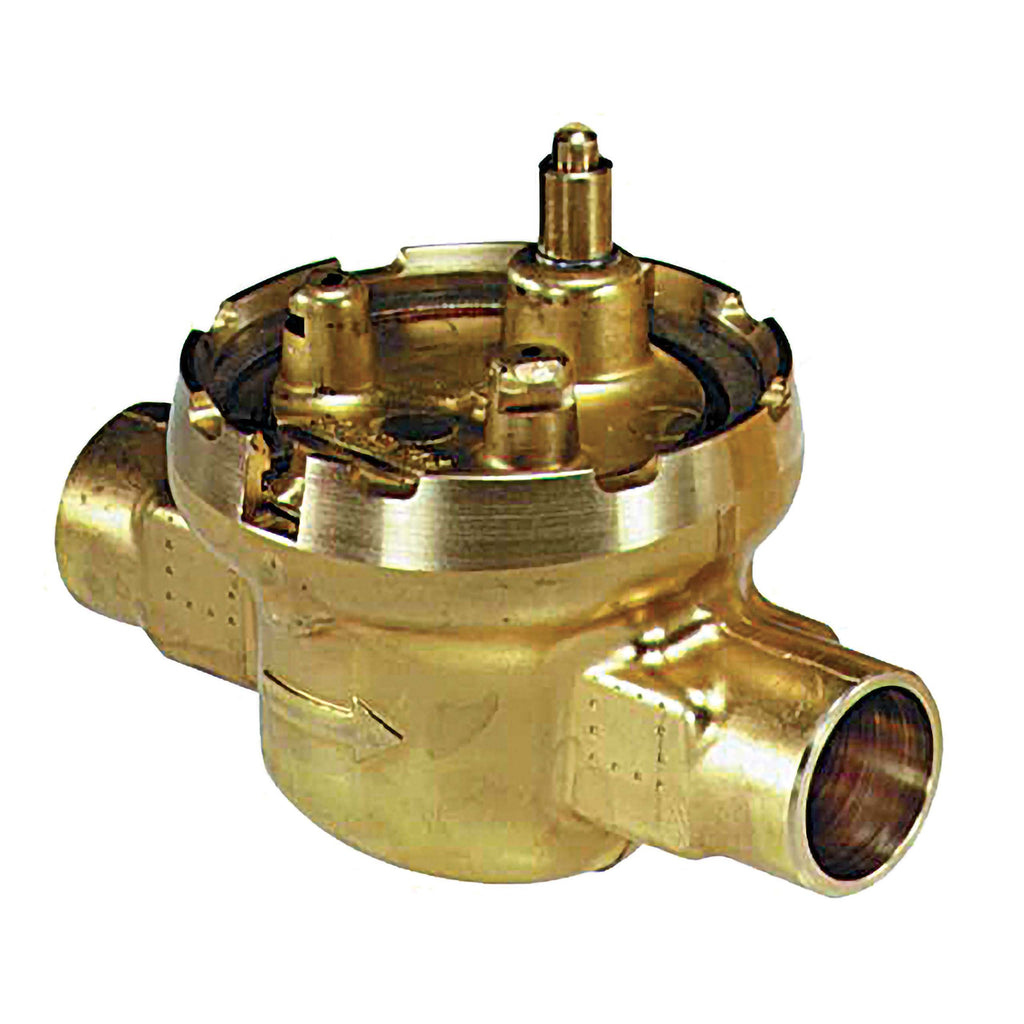

The VU53S2059/B is a two-way, straight-through fan coil valve body with 3/4 in. sweat connections and a flow coefficient of 8.0 Cv (7.0 Kvs). It has a brass body and is normally closed with a quick-opening flow characteristic. It belongs to the VU53 fan coil valve series, which is covered in the VU fan coil valves and actuators product data.
Key Features
- Two-way straight-through pattern
- 3/4 in. sweat connections
- 8.0 Cv / 7.0 Kvs
- Brass body, seat and stem; Buna-N (NBR) rubber ball/disc
- Normally closed, quick-opening characteristic
Specifications
| Valve Ball Material |
Buna-N (NBR) Rubber |
| Connection Type |
Sweat |
| Differential pressure for close-off (Max) |
10 psi, 69 kPa |
| Flow Coefficient |
8.0 Cv; 7.0 Kvs |
| Operating Pressure (Max) |
300 psi, 2000 kPA, PN20 |
| Valve Body Material |
Brass |
| Valve Body Pattern |
Two-way, Straight Through |
| Valve Flow Characteristic |
Quick Opening |
| Valve Start Position |
Normally Closed |
Compatible With
- Fan coil units and hydronic zone applications
- VU series fan coil valve actuators (see the VU443/VU444/VU53/VU54/VU843/VU844 product data)
