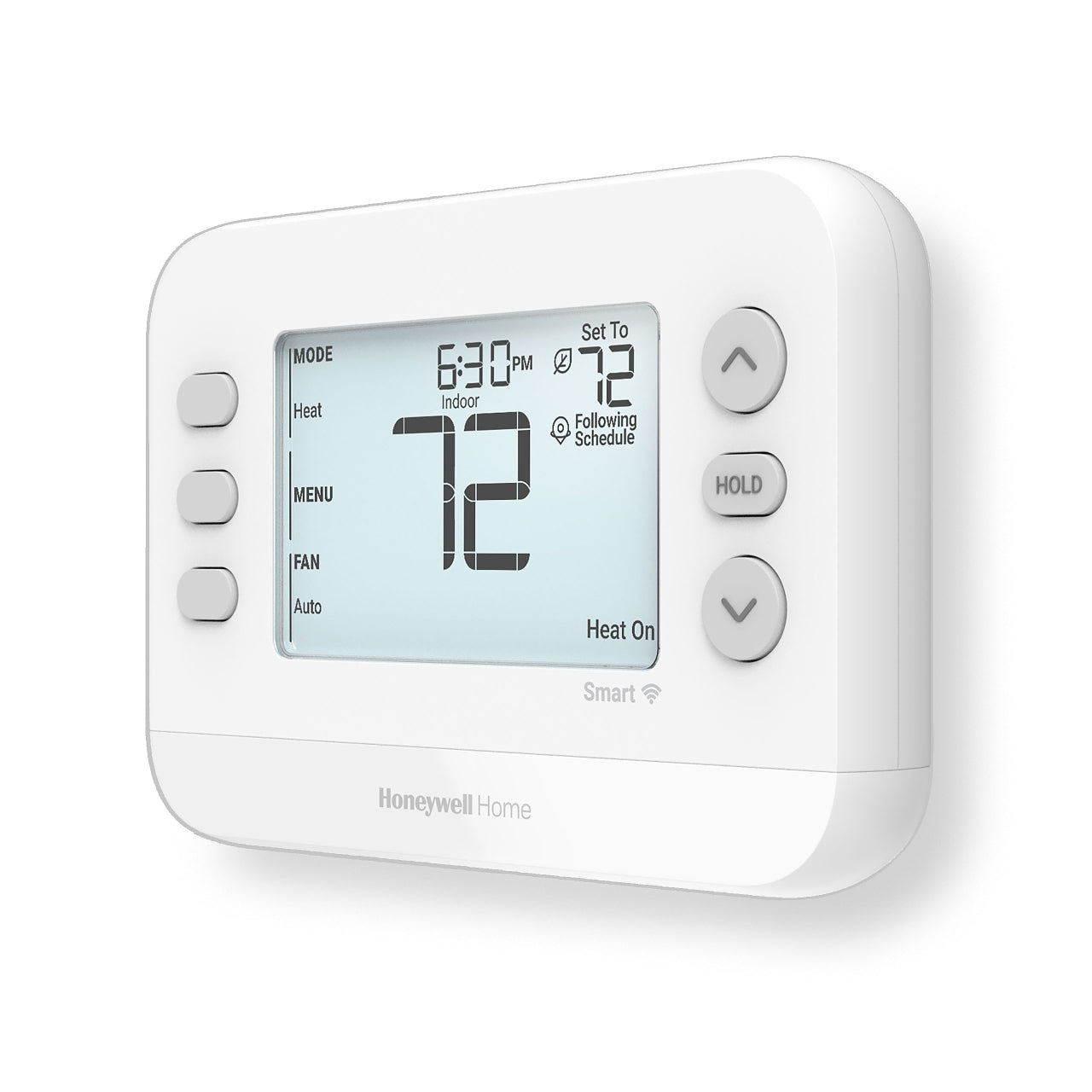

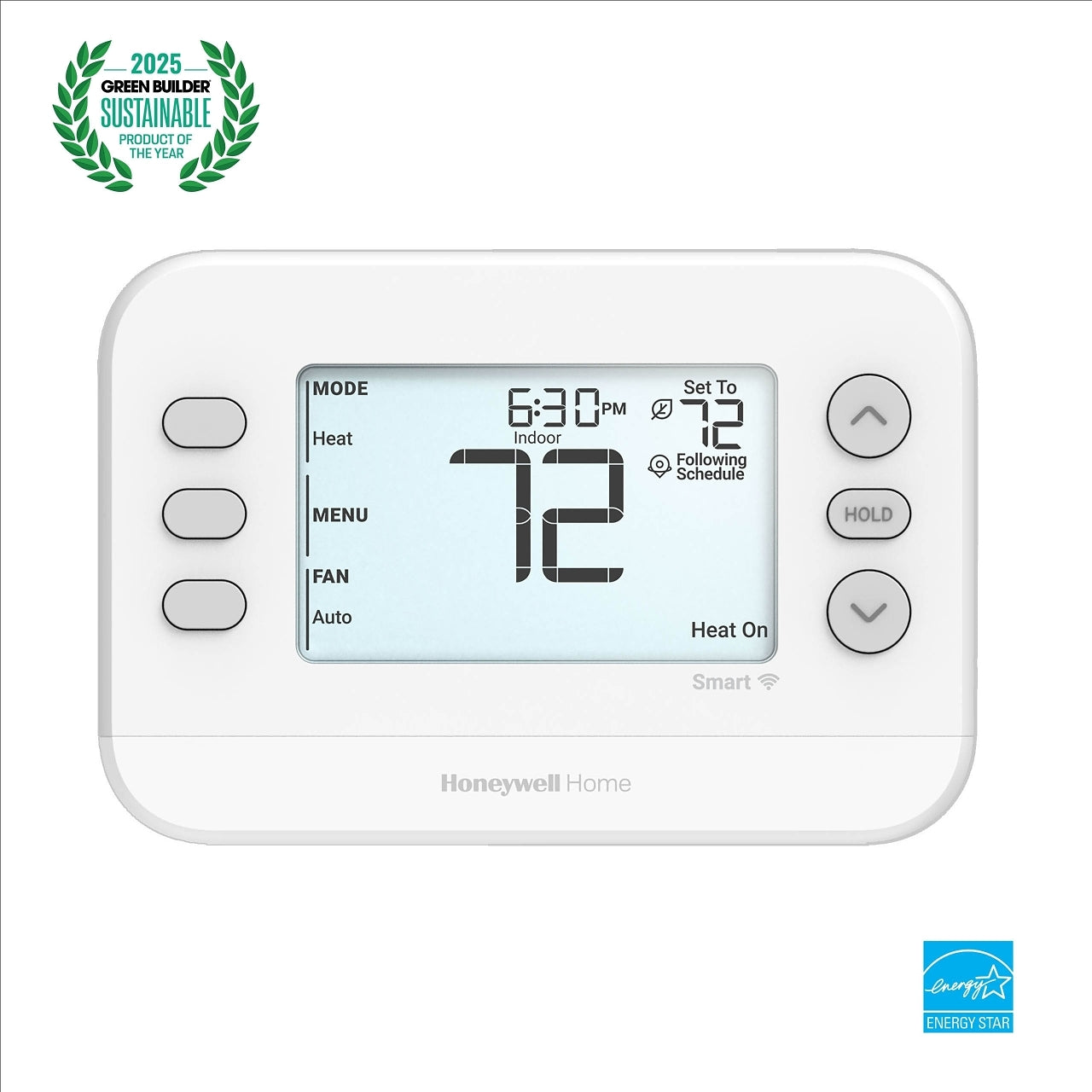

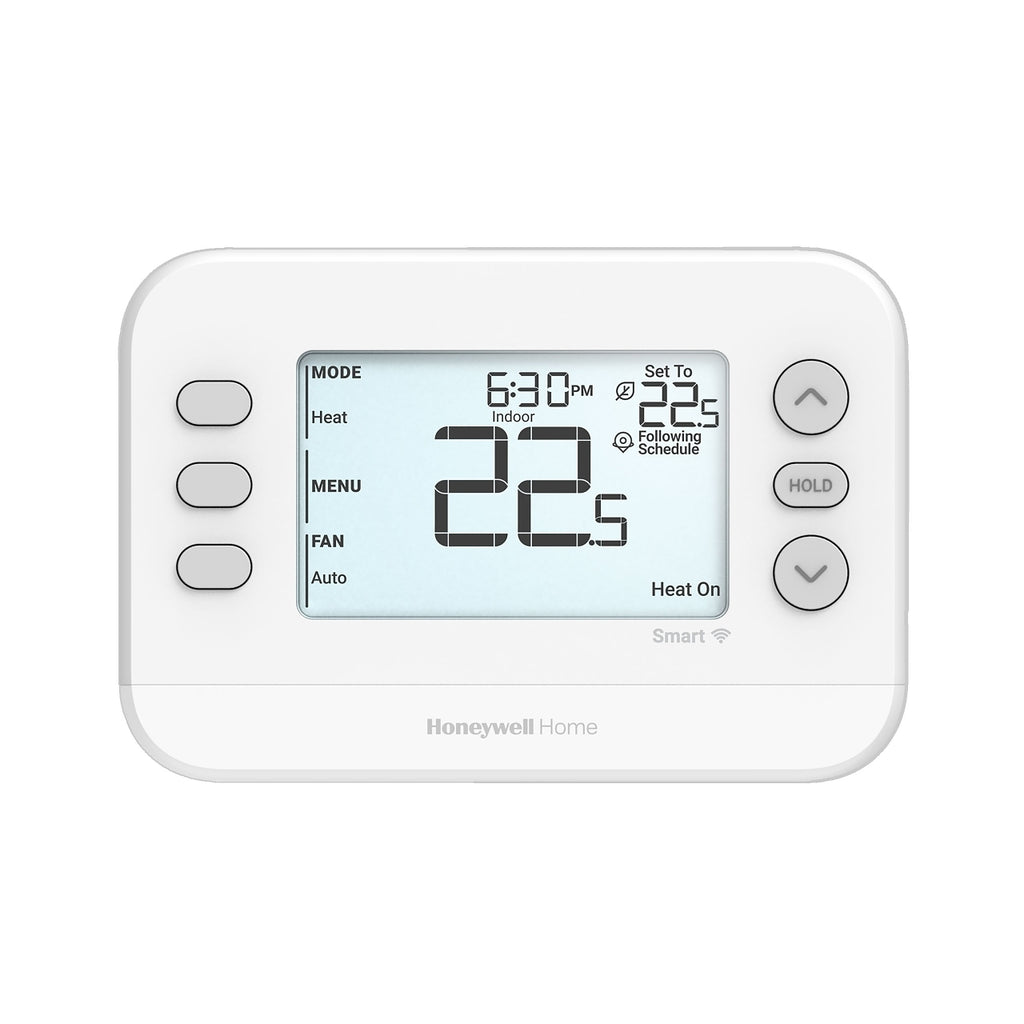

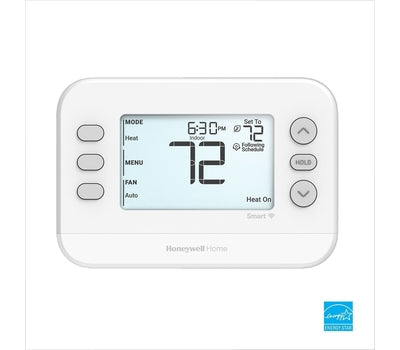

Honeywell Home TH2320WF4010 — FocusPRO S200 series Wi-Fi programmable thermostat for multi-stage heat pump and conventional forced-air systems.
The S200 replaces a low-voltage wall thermostat, adding phone or tablet control once registered to the Resideo app, with flexible scheduling or a smart schedule with geofencing. It ships on a UWP mounting system with a medium cover plate and J-box adapter.
- Up to 3H/2C heat pump or 2H/2C conventional forced air; radiant heat and dual fuel
- Terminals R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S and S
- 24 Vac at Rc and C required, no batteries; 1.0 VA typical, 1.5 VA maximum
- 2.4 GHz or 5 GHz 802.11 b/g/n wireless
- Setpoints 32 to 90 °F heating, 50 to 99 °F cooling; operating ambient 32 to 102 °F
- 5-1/8" W × 3-7/16" H × 1-3/16" D; ENERGY STAR certified
Do not confuse it with the TH2110WF4008, a single-stage S200 with no W2-AUX, E or Y2 terminals, or with TH2320WF4011, the same thermostat sold in the Middle East. Compressor and aux heat lockout needs the C7089U1006 outdoor sensor, ordered separately.
