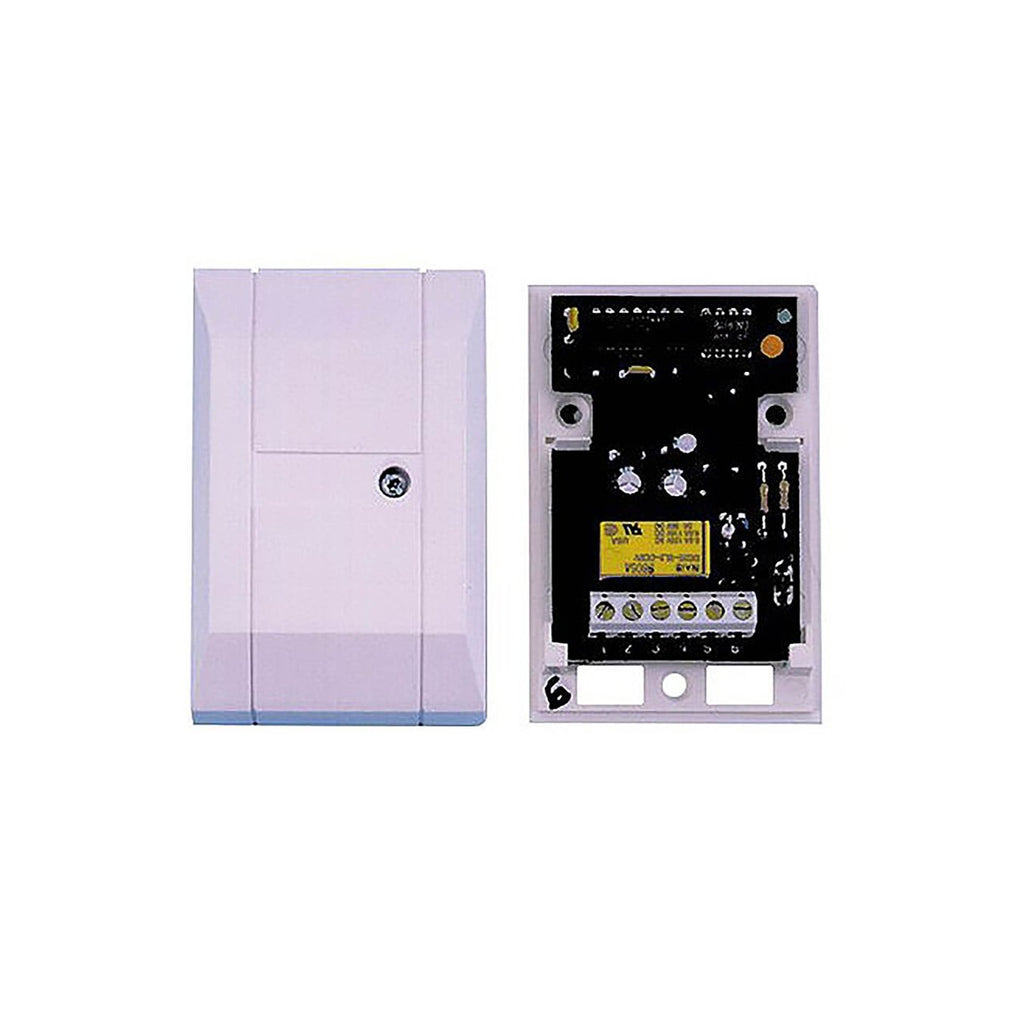

Resideo 4101SN — addressable V-Plex single output relay module with one supervised auxiliary input zone.
V-Plex is a two-wire polling loop: power and data share one pair and every device carries a serial number, so the panel names the exact point in alarm. This module puts a relay on that loop, plus an input zone.
- Form C contacts rated 2 A at 28 VAC or VDC, resistive and inductive, with supervision of relay position but not external wiring
- One Class B / Style B auxiliary input zone, EOLR supervised, 300 Ω maximum resistance, responding to faults of 250 ms or longer
- 10 kΩ EOLR internal while the white jumper is intact, external once cut; it and the WA 610-13 fire resistor are supplied
- Polling loop input 8 to 14 VDC at 7 mA; plastic case with tamper cover, 53 × 84 × 25 mm
Resideo calls it an accessory for control panels supporting serial number addressable polling loop output devices, filed in the VISTA line. It is an output device carrying an input zone, unlike the expanders near it: 4190SN and 4193SN add zones but no relay, and 4208SNF expands zones only.
