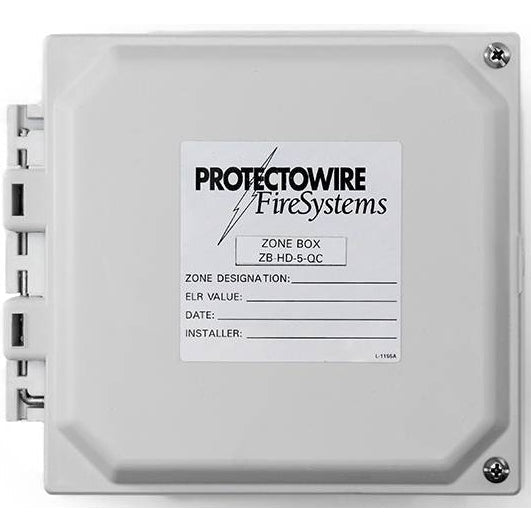

Protectowire ZB-HD-5-QC is a fiberglass NEMA 4X (IP66) junction box with a DRTB-T-2 terminal block. It is used as the end-of-line box for CTM series modules with Protectowire CTI linear heat detector.
Because the CTI detector has thermocouple characteristics, electrical polarity must be observed, and the DRTB-T-2 connector block must be used to keep the thermocouple measurement accurate. Type T thermocouple extension cable is used as interposing cable on the detection circuit. The enclosure is molded from reinforced polyester for highly corrosive atmospheres.
Specifications
| Enclosure |
Fiberglass, NEMA 4X (IP66) |
| Terminal block |
DRTB-T-2, included |
| Dimensions |
6 x 6 x 4 in. (H x W x D) |
| Mounting panel |
4.81 x 4.81 in., inside the box |
| Operating temperature |
-40 to +266 °F |
| Cover |
Stainless steel captive screws, #10-32 brass inserts |
Installation notes
- Install in an accessible location, preferably not more than six feet above the floor
- Install the end-of-line resistor only at the last box for Class B wiring
- For Class A, return to the CTM module, using type T thermocouple extension cable if needed
- SR-502 series strain relief connectors are sold separately
Related models
- ZB-HD-4-QC: Protectowire heavy-duty junction box
Documents
FAQ
What is the ZB-HD-5-QC used for?
As the end-of-line box for Protectowire CTM series modules with CTI linear heat detector.
Why is the DRTB-T-2 terminal block needed?
CTI detector behaves like a thermocouple, so the DRTB-T-2 block is required to keep the measurement accurate, and polarity must be observed.
Are strain relief connectors included?
No. SR-502 series strain relief connectors are sold separately.
Can it be used in corrosive areas?
Yes. The enclosure is molded from reinforced polyester and is designed for highly corrosive atmospheres.
