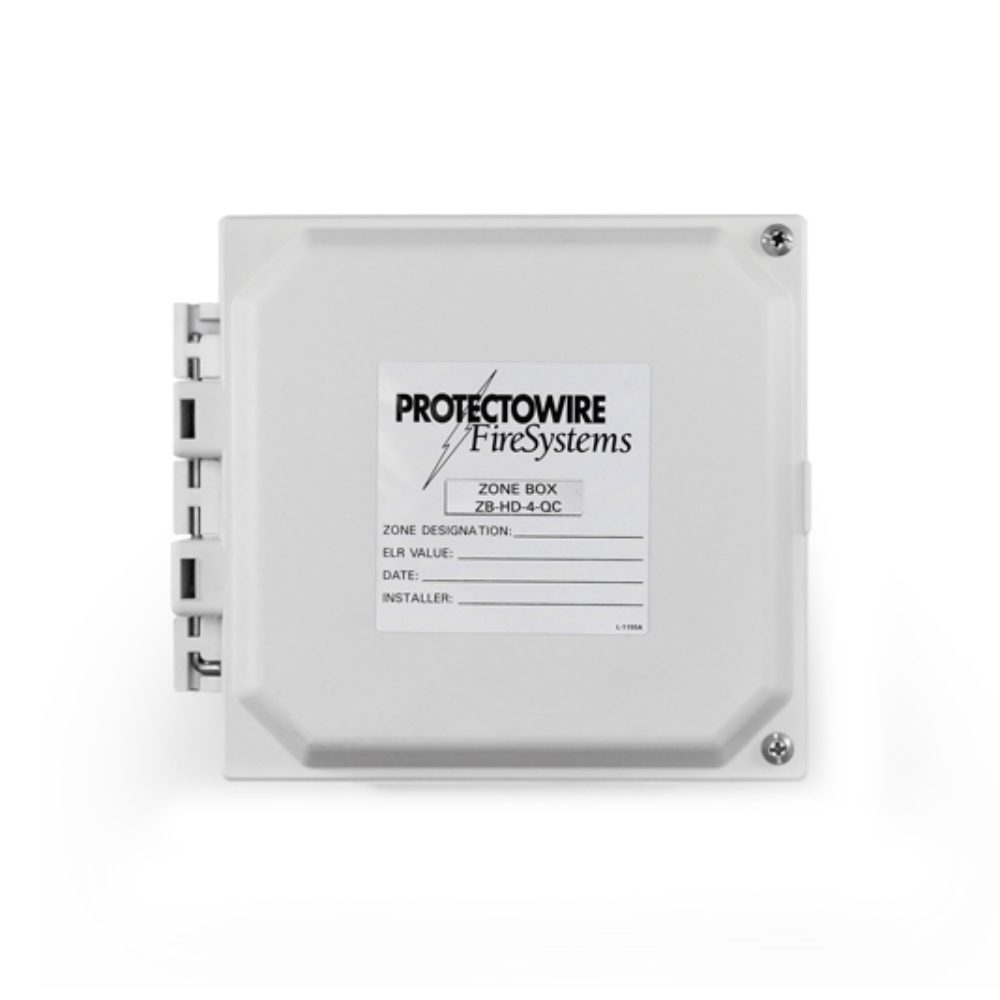

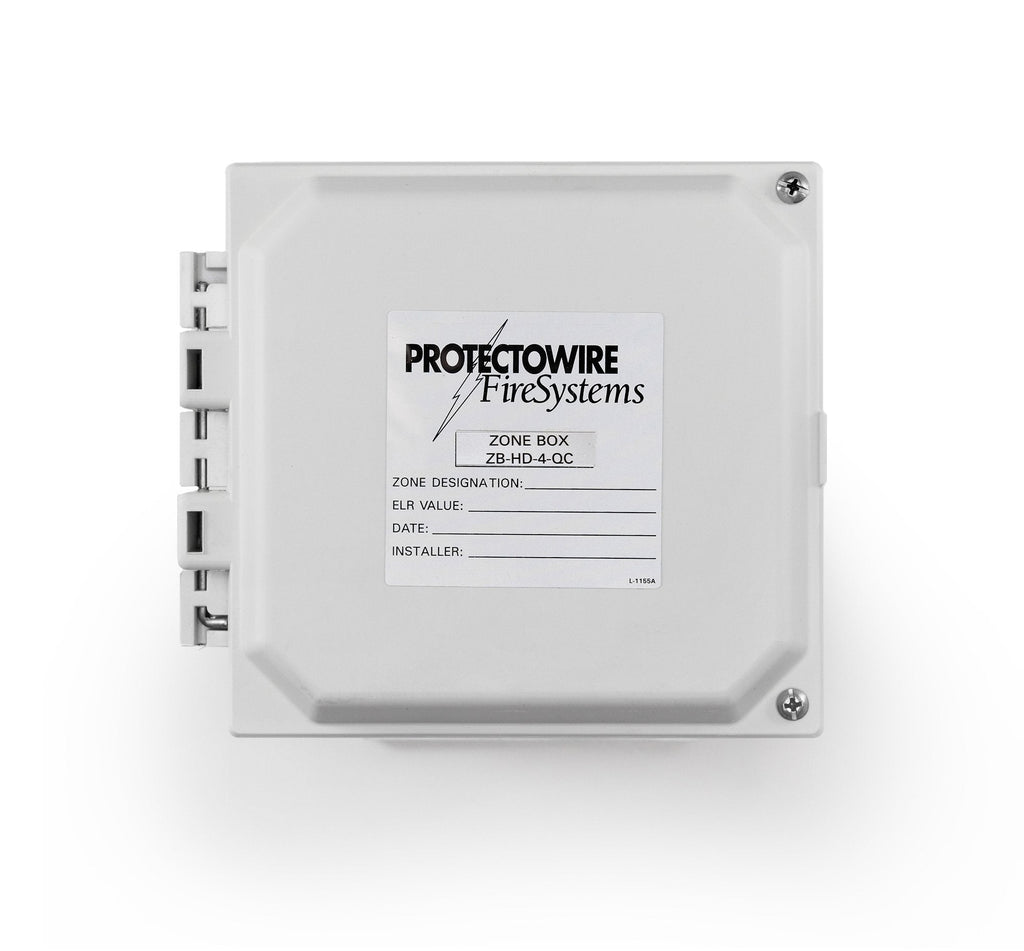

Protectowire ZB-HD-4-QC Fiberglass NEMA-4X (IP66) Junction Box with PWSC Compression Terminals
The Protectowire ZB-HD-4-QC is a heavy-duty fiberglass NEMA-4X (IP66) zone/junction box fitted with PWSC compression (quick-connect) terminals, so PHSC or PLR linear heat detector cable can be landed directly on the terminals. The enclosure is molded from reinforced polyester for use in highly corrosive atmospheres. Strain relief connectors are sold separately.
Key Features
- Fiberglass (reinforced polyester) NEMA-4X (IP66) junction box
- PWSC compression terminals for direct connection of the detector
- Designed for highly corrosive atmospheres
- Compatible with all controls
- Captive stainless steel cover screws
- SR-502 series strain relief connectors sold separately
Specifications
| Enclosure rating |
NEMA-4X (IP66) |
| Dimensions |
6 in H x 6 in W x 4 in D |
| Operating temperature |
-40°F to +266°F (-40°C to +130°C) |
| Terminals |
PWSC compression terminals |
| Recommended field wiring |
#18 to #14 AWG copper |
| Weight |
2.0 lb |
Compatible With
- Protectowire PHSC linear heat detector
- Protectowire PLR linear heat detector
- SR-502 series strain relief connectors
Documents & Downloads
FAQ
Can the detector cable be landed directly in the box?
Yes. The ZB-HD-4-QC has quick connect (PWSC compression) terminals, so Protectowire linear heat detector can be fastened directly to the terminals.
Are strain relief connectors included?
No. SR-502 series watertight strain relief connectors, for cable diameters of 0.100 to 0.200 in., are sold separately.
Where should it be installed?
In an accessible location, preferably not more than six feet above the floor. The reinforced polyester enclosure is designed for highly corrosive atmospheres.
What wire size is recommended to the panel?
Copper conductors from 18 to 14 AWG. Bends in the Protectowire detector should have a radius of at least 2.5 in.
