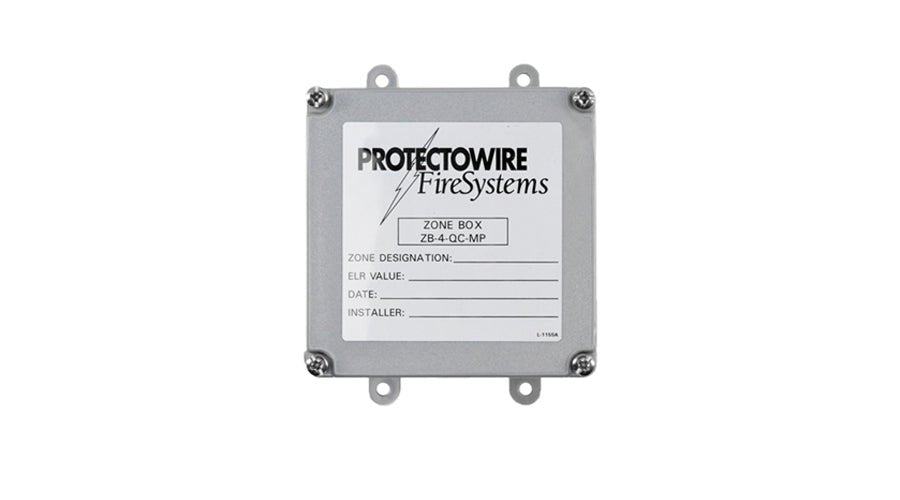

Protectowire ZB-4-QC-MP is a non-metallic, moisture resistant zone box with compression terminals. It houses the termination between Protectowire PHSC and PLR linear heat detector cable and the copper feed conductors, and it also houses the end-of-line device on a Class B two-wire detection circuit. Installers use it at each zone transition and at the last box of the circuit.
Specifications
| Enclosure |
Non-metallic, moisture resistant |
| Size |
4 in. H x 4 in. W x 2 in. D nominal; outside depth 2.44 in. |
| Copper conductors |
18 to 14 AWG |
| Terminals |
Compression |
| Cover screws |
#10-32 stainless steel, captive in cover |
| Operating temperature |
-22 to 212 degrees F |
| Circuit |
Two-wire Class B detection circuit |
Installation notes
- Install the end-of-line resistor (ELR) only at the last box of a Class B circuit
- All bends in the detector cable should have a radius of at least 2.5 in.
- Mount in an accessible location, preferably not more than six feet above the floor
- Strain relief connectors are not furnished; SR-502 or equal (cable diameter .100 to .200 in.) is sold separately
- Not recommended for outdoor use in direct sunlight
