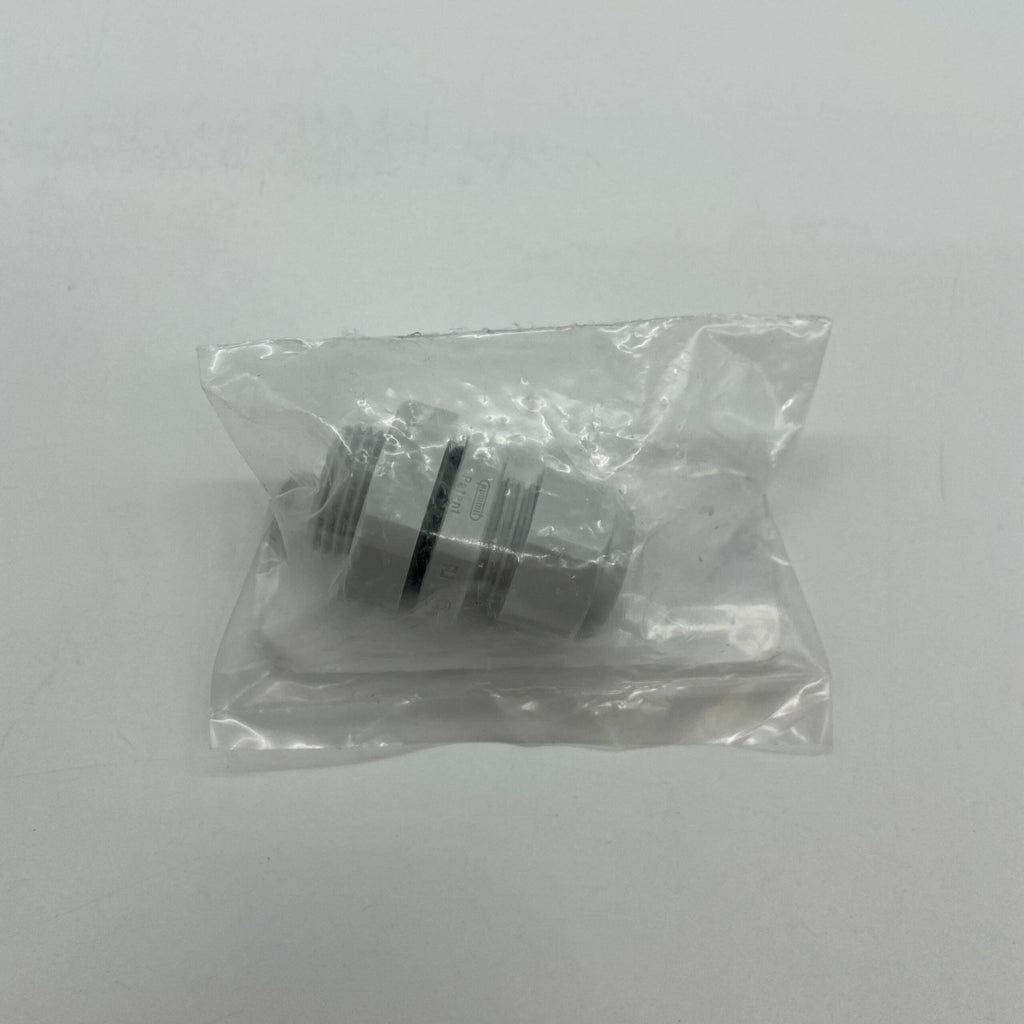

Protectowire SR-502-N Non-Metallic Strain Relief Connector
The Protectowire SR-502N is a non-metallic strain relief connector (cable gland) used wherever Protectowire linear heat detector cable enters a junction box, zone box or end-of-line box. It seals around the cable jacket to give a watertight and oiltight entry and threads into the enclosure with a 3/8 in NPT fitting and locknut.
Key Features
- Sealed strain relief / cable gland for linear heat detector cable entering junction and end-of-line boxes
- Nylon 6/6 body with PVC grommet; RoHS compliant
- Watertight and oiltight; UL Listed NEMA 4 and 6P
- Accepts cable outer jacket diameters from 0.08 in to 0.24 in (2 mm to 6 mm)
- Two SR-502N connectors are also included with each PWSH splice housing
Specifications
| Material |
Nylon 6/6 with PVC grommet |
| Thread |
3/8 in NPT (dome fitting and locknut) |
| Cable jacket diameter range |
0.08 in to 0.24 in (2 mm to 6 mm) |
| Temperature range |
-40°F (-40°C) to 212°F (100°C) |
| Rating |
Watertight and oiltight; UL Listed NEMA 4 & 6P |
| Enclosure clearance hole |
27/32 in (21 mm) |
| Torque |
Dome nut 22.1 in-lb (2.5 Nm); thread and locknut 33.2 in-lb (3.75 Nm) |
Compatible With
- Protectowire PHSC linear heat detector
- Protectowire PLR linear heat detector
- Protectowire CTI linear heat detector
- Protectowire fiber optic linear heat detector
- Protectowire ZB-series zone boxes
