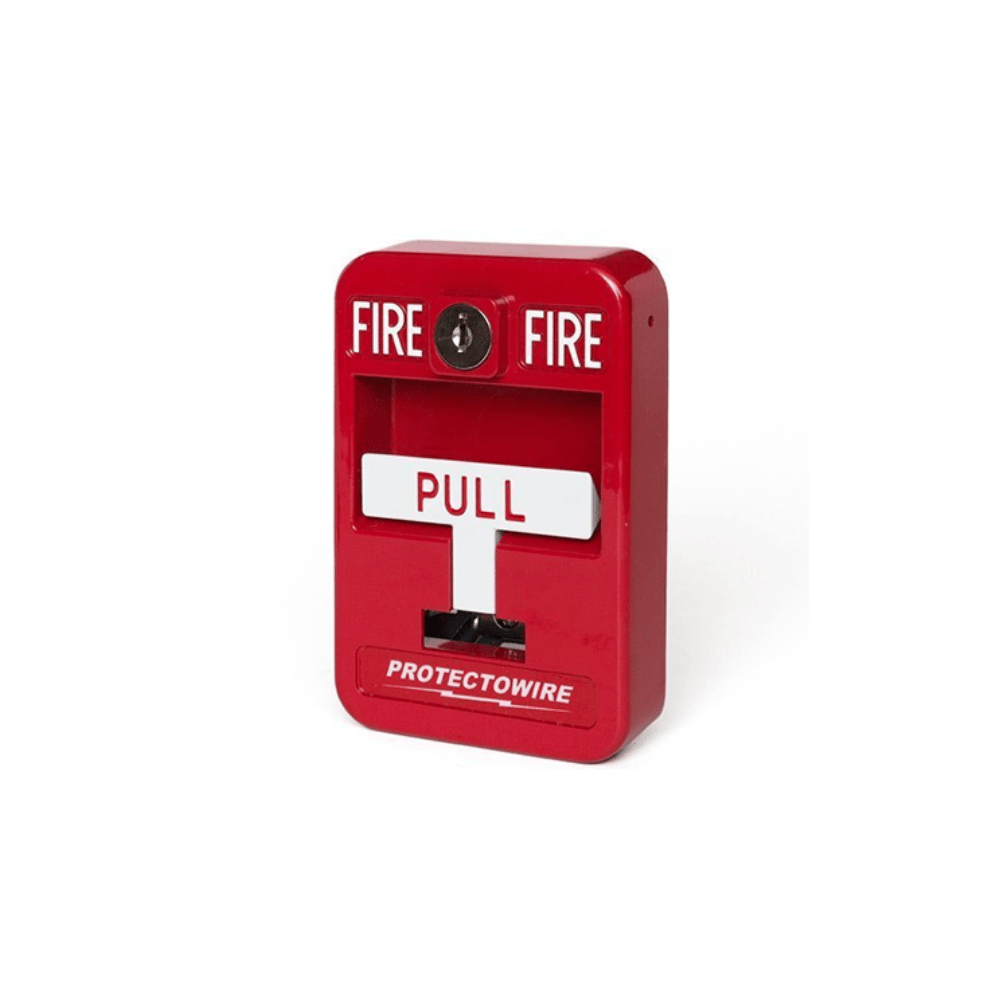

Protectowire SG-42SK2 Single action pull station, SPST (without back box)
Comes complete with 1 key, 1 break rod, and mounting hardware.
The SG-42SK2 is a single-action, non-coded manual fire alarm pull station with a normally open SPST switch, supplied without a back box. The die-cast metal housing is finished in red enamel with raised white lettering; pulling the handle down closes the switch and the handle stays latched until the station is reset with a key. It mounts on a standard single-gang back box and comes with one key, one acrylic break rod and a field-installed 'FIRE SYSTEM RELEASE' label for extinguishing-system use.
Key Features
- Single action, SPST normally open switch
- All-metal die-cast housing, red enamel with raised white letters
- Key-operated reset; handle locks down to show the station has operated
- Terminal connections
- Mounts on a standard single-gang back box (back box not included)
- Supplied with one acrylic break rod, one key and a special 'FIRE SYSTEM RELEASE' label
- UL tested for ADA pull-force compliance
- Optional SGB-32S surface back box and SG-WP weatherproof back box
Specifications
| Action |
Single action |
| Switch |
SPST, normally open |
| Switch rating |
2 A @ 125 VDC, 2 A @ 240 VAC |
| Dimensions |
4-3/4 in H x 3-1/4 in W x 1 in D |
| Operating temperature |
-40°F to 150°F (-40°C to 66°C) |
| Humidity |
90% RH @ 100°F (38°C) |
| Approvals (series) |
UL & cUL Listed, Factory Mutual, City of New York MEA-382-94-E, CSFM 7150-1408:107, ADA compliant |
Compatible With
- Standard single-gang back box
- SGB-32S red interior surface back box
- SG-WP weatherproof back box (NEMA 3R)
- SG-GR replacement acrylic break rods
