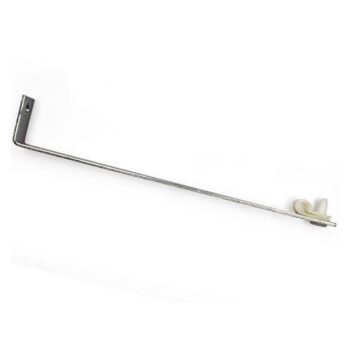

Protectowire RMC-2 L Bracket, Plated Steel
The Protectowire RMC-2 is a plated steel L-bracket assembly for supporting linear heat detector cable off a surface. It comes with a nylon WAW-N clip and an acetal copolymer snap button, and its row of mounting holes lets the installer choose the height at which the detector is held. A 304 stainless steel version is available as RMC-3.
Key Features
- L-bracket assembly: plated steel bracket, WAW-N nylon clip and acetal copolymer snap button
- 6.7 in (170 mm) long with multiple mounting holes for height adjustment
- UV and corrosion resistant
- Maximum recommended spacing 5 ft (1.5 m)
Specifications
| Material |
Plated steel |
| Length |
6.7 in (170 mm) |
| Mounting hole diameter |
1/4 in (6.4 mm) |
| Maximum recommended spacing |
5 ft (1.5 m) |
Compatible With
- Protectowire PHSC linear heat detector
- Protectowire PLR linear heat detector
- Protectowire CTI linear heat detector
- Protectowire fiber optic linear heat detector
