Splice Housing

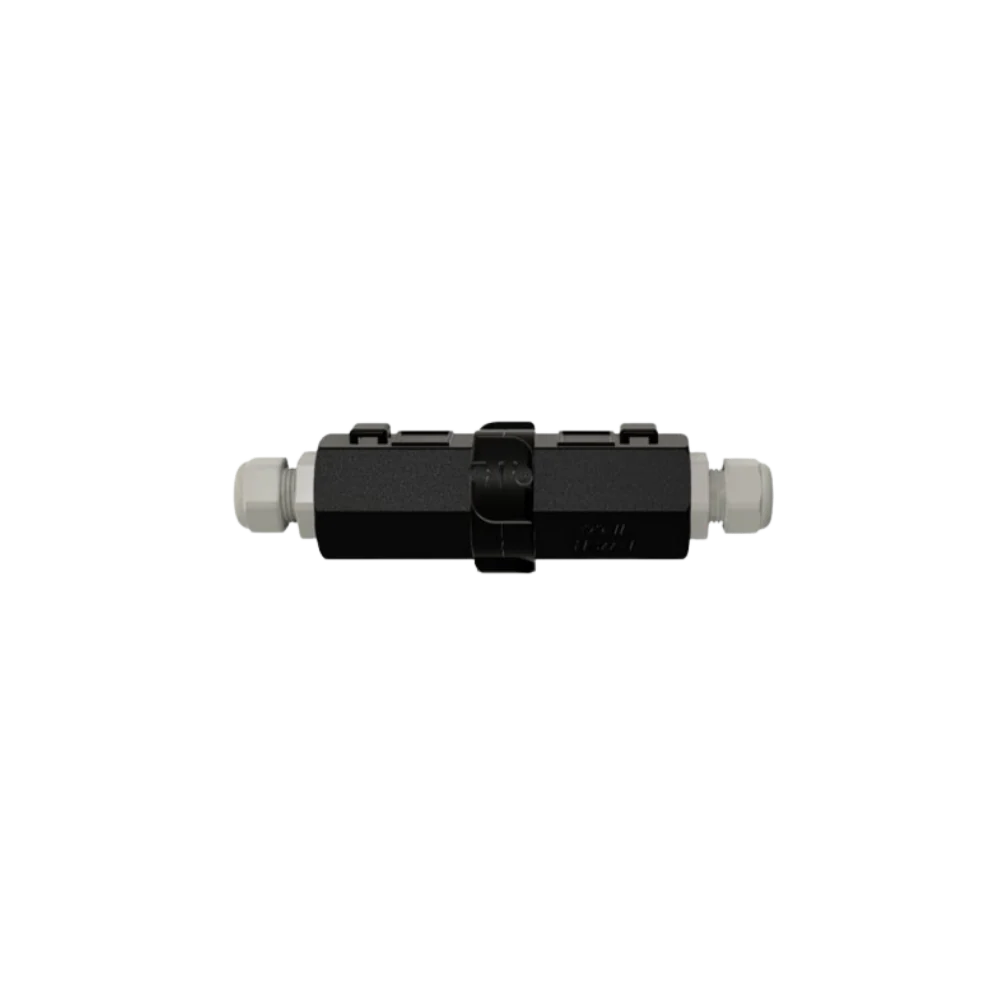

The Protectowire PWSH-PHSC is a low-profile splice housing that protects field splices in PHSC and PLR linear heat detector cable. It is molded from PA11 nylon (or equivalent), is tested to IP66 and is UV resistant. The housing is supplied with a PWSC terminal block and two SR-502N strain relief connectors, so it is a complete inline splice assembly.
Key Features
- Inline splice housing for PHSC and PLR linear heat detectors
- Includes PWSC terminal block and two SR-502N strain relief connectors
- PA11 nylon (or equivalent) body, IP66 rated and UV resistant
- Accepts cable outer jacket diameters from 0.08 in to 0.24 in (2 mm to 6 mm)
- A separate version, PWSH-CTI, is used for CTI detectors
Specifications
| Material |
PA11 nylon or equivalent |
| Environmental rating |
IP66, UV resistant |
| Temperature range |
-40°F (-40°C) to 176°F (80°C) |
| O-ring material |
Silicone S50 rubber or equivalent |
| Cable outer jacket diameter range |
0.08 in to 0.24 in (2 mm to 6 mm) |
| Overall size (drawing) |
5.5 in (140 mm) x 1.6 in (40.6 mm) |
Compatible With
- Protectowire PHSC linear heat detector
- Protectowire PLR linear heat detector
