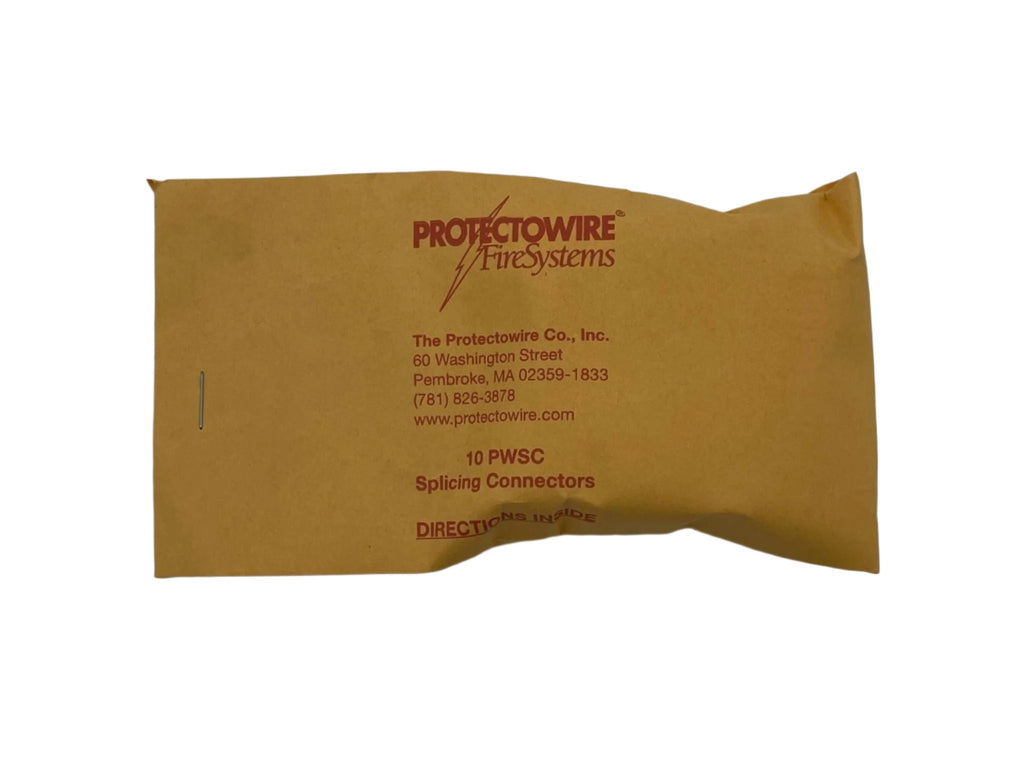

Protectowire PWSC Splicing Connectors (10 Units per Pack, SFTS Sealant Recommended)
The Protectowire PWSC is a two-point nylon splicing connector for joining lengths of digital two-conductor linear heat detector cable (PHSC and PLR types). The stripped conductors are inserted and secured with the connector screws. Protectowire's splicing instructions call for wrapping the finished splice with SFTS sealant tape and then overwrapping with electrical tape.
Key Features
- Two-point splicing connector for PHSC and PLR digital linear heat detectors
- Nylon body with screw terminals
- Splice is wrapped with SFTS sealant tape and overwrapped with electrical tape per the manufacturer's instructions
- Sold in packs of 10
- Same terminal block is used in ZB-4-QC-MP / ZB-HD-4-QC zone boxes and the PWSH-PHSC splice housing
Specifications
| Material |
Nylon |
| Screw turret |
1/8 in |
| Bare conductor strip length |
1/2 in (13 mm) |
| Pack quantity |
10 |
Compatible With
- Protectowire PHSC linear heat detector
- Protectowire PLR linear heat detector
