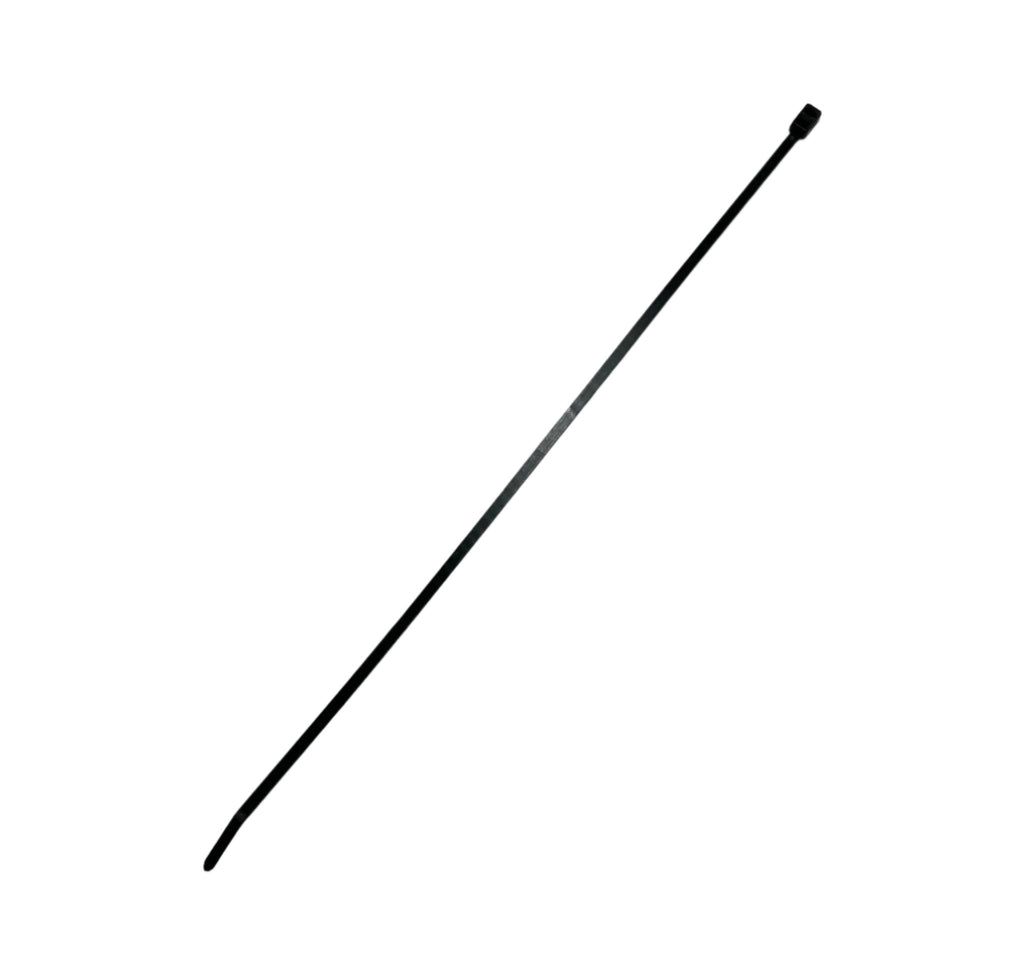

Protectowire PM-3B Double Loop Strap Suitable for 2.5” to 3.5” Pipes
6/6 Nylon Mounting Strap for 2.5in to 3.5in (64mm to 88mm) pipe
The Protectowire PM-3B is a double-loop nylon strap for fastening linear heat detector cable to pipe sized 2-1/2 in to 3-1/2 in (63 mm to 89 mm). The first loop wraps the pipe and the second loop holds the detector in the strap's holding block. It is made of black, weather-resistant 6/6 nylon and is typically used where the detector follows sprinkler or process piping.
Key Features
- Double-loop pipe mounting strap for Protectowire linear heat detectors
- Fits pipe sizes 2-1/2 in to 3-1/2 in (63 mm to 89 mm)
- Black weather-resistant, UV-stabilized nylon 6/6
- Usable from -40°F (-40°C) to 185°F (85°C)
- Maximum recommended spacing 5 ft (1.5 m)
Specifications
| Pipe size |
2-1/2 in to 3-1/2 in (63 mm to 89 mm) |
| Material |
Nylon 6/6, UV stabilized |
| Temperature range |
-40°F (-40°C) to 185°F (85°C) |
| Length |
11.8 in (300 mm) |
| Width |
0.19 in (4.8 mm) |
| Thickness |
0.052 in (1.3 mm) |
| Maximum recommended spacing |
5 ft (1.5 m) |
Compatible With
- Protectowire PHSC linear heat detector
- Protectowire PLR linear heat detector
- Protectowire CTI linear heat detector
- Protectowire fiber optic linear heat detector
