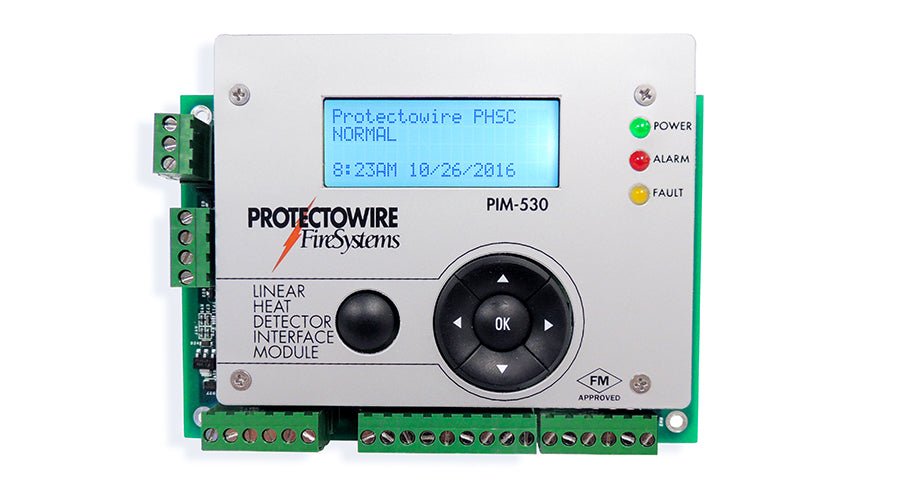

The PIM-530 is a detection control module that acts as an interface between a fire alarm control panel detection circuit or addressable node and Protectowire PHSC or PLR Linear Heat Detectors
The PIM-530 module can supervise up to 6,500 feet (2000m) in a Class A or Class B configuration. It is available with an intrinsic safety barrier for hazardous applications.
Each PIM-530 interface module can supervise a single zone of our PHSC linear heat detectors. The following benefits come standard with each module:
- Supervises 6,500 feet (2000m) of standard PHSC linear detectors
- Modbus output via RS-485
- Relay contacts for universal compatibility to addressable modules or IDCs
- Field configurable to support either a Class A or Class B configuration
- LCD screen and trackpad for easy programming
- Hardware available for use in classified hazards
- Integrated alarm point location
- 64 event history
- Optional: NEMA-4X (IP66) enclosure
- Optional: -40°F (-40°C) version without LCD
- Required: 12 to 32 VDC regulated input power
