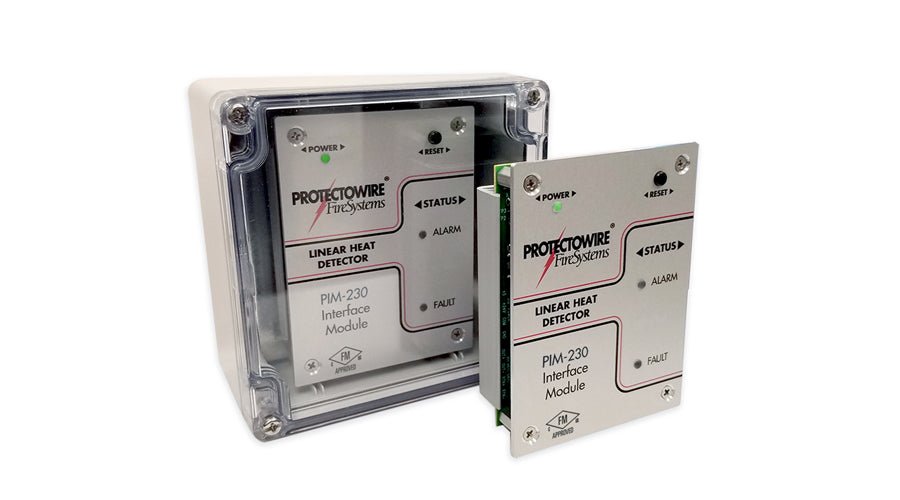

The PIM-230 is a detection control module that acts as an interface between a fire alarm control panel detection circuit or addressable node and Protectowire PHSC or PLR Linear Heat Detectors
The PIM-230 module can supervise up to 6,500 feet (2000m) in a Class A or Class B configuration.
The module provides one (1) supervised detection circuit that may be field wired for either Class A (Style D) or Class B (Style B) service. The alarm initiation circuit is capable of operation up to 6560 feet (2000 meters) of Protectowire Type PHSC or PLR Linear Heat Detectors. The PIM-230 operates using conventional initiating device circuit technology and is compatible with other types of non-resistive normally open contact alarm initiating devices
