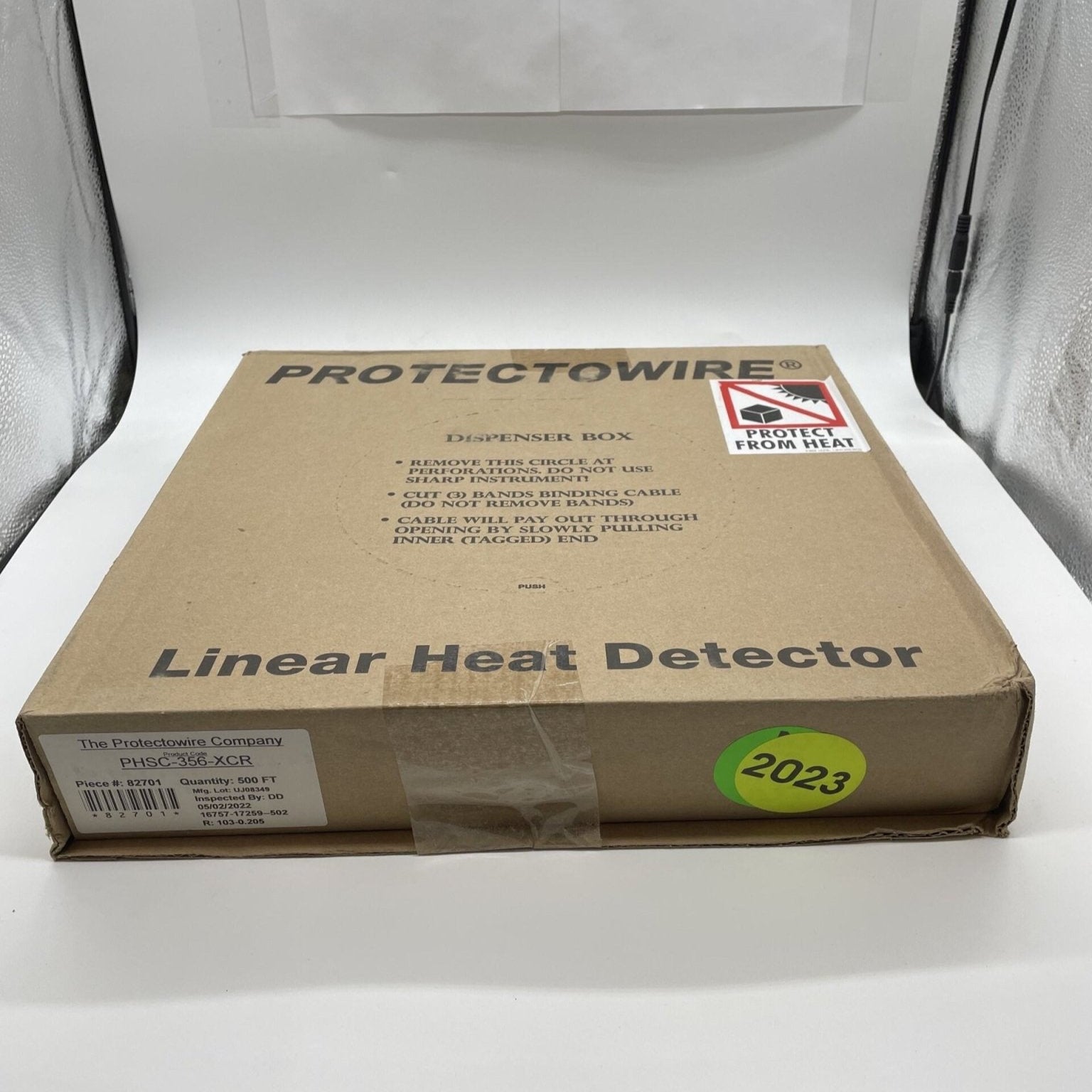

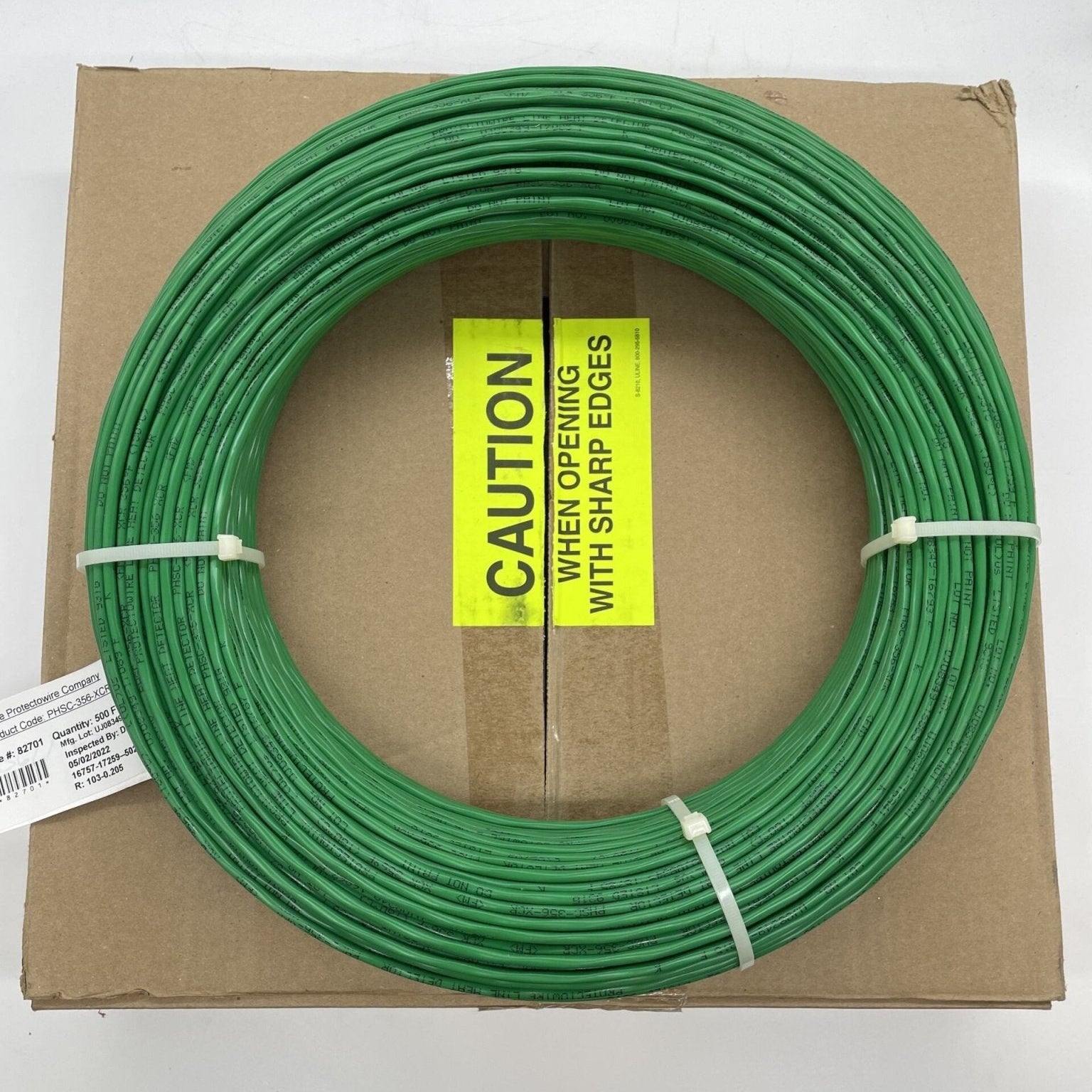

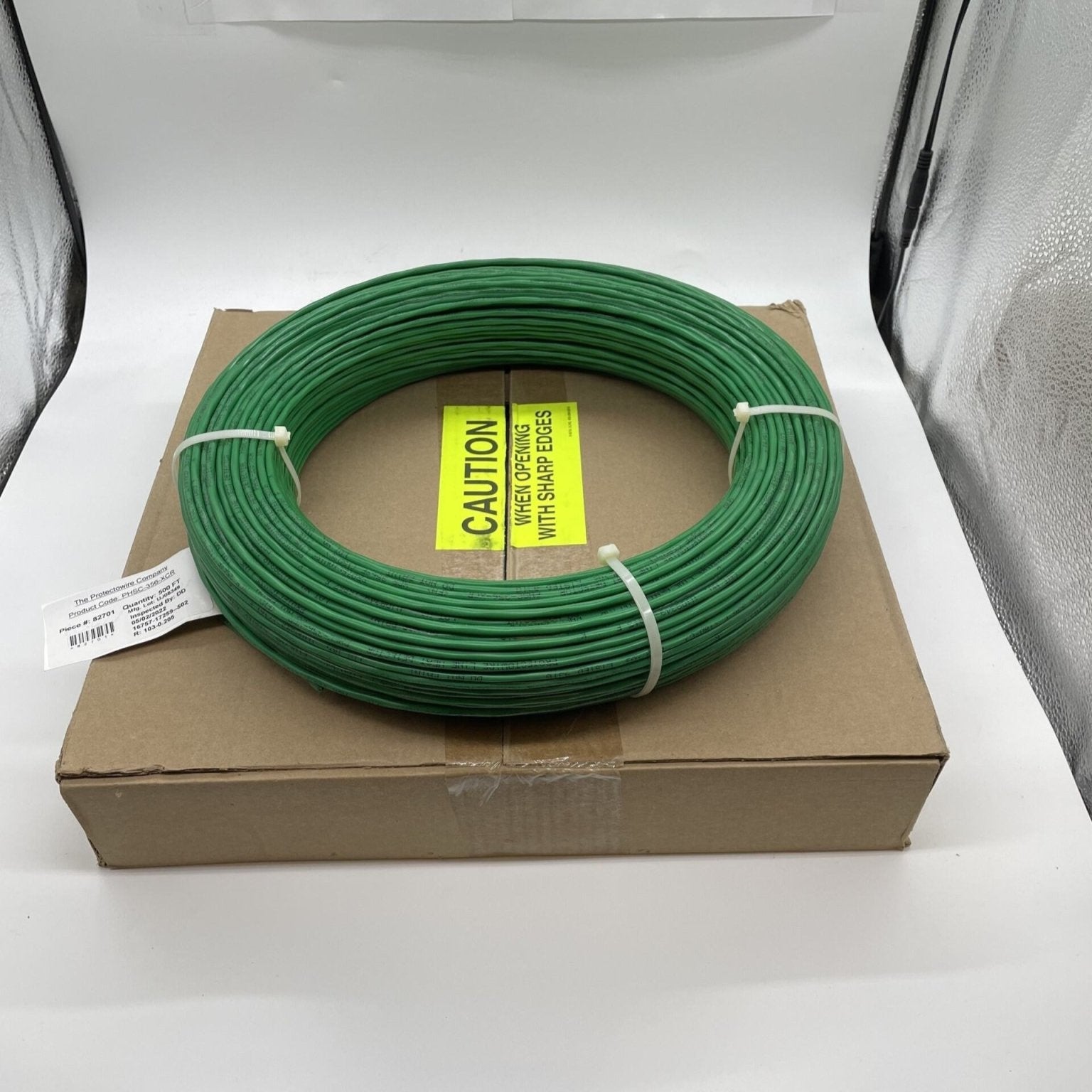

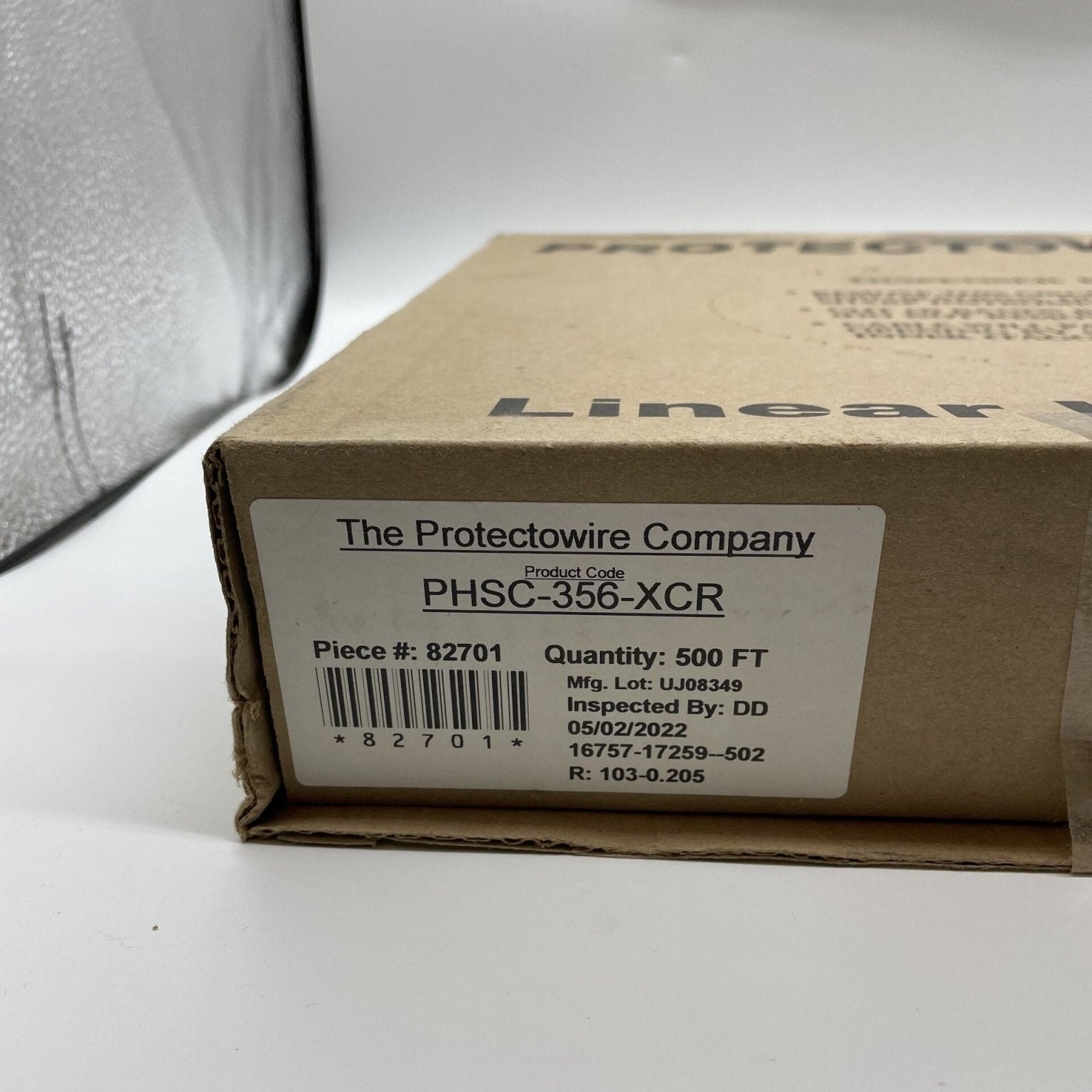

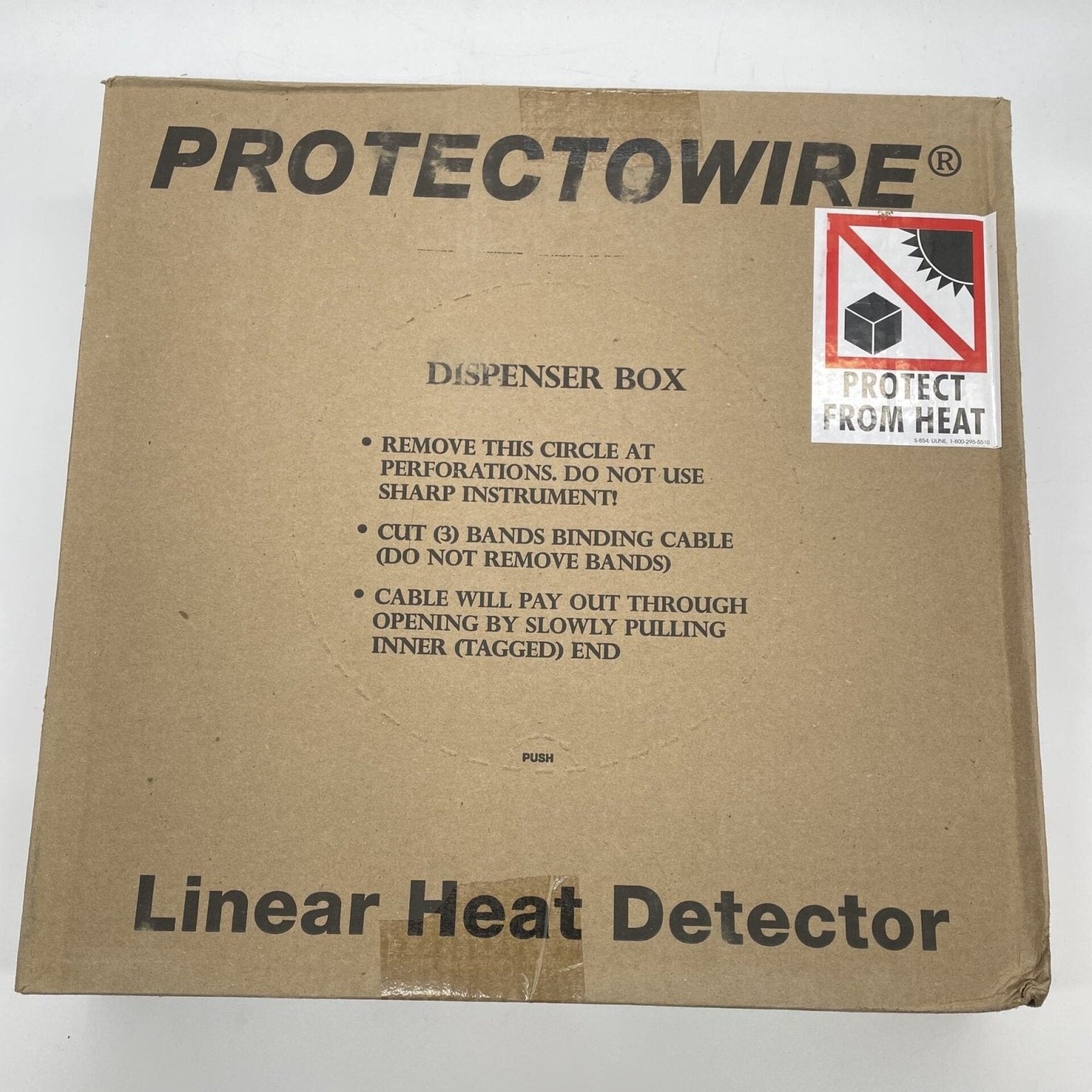

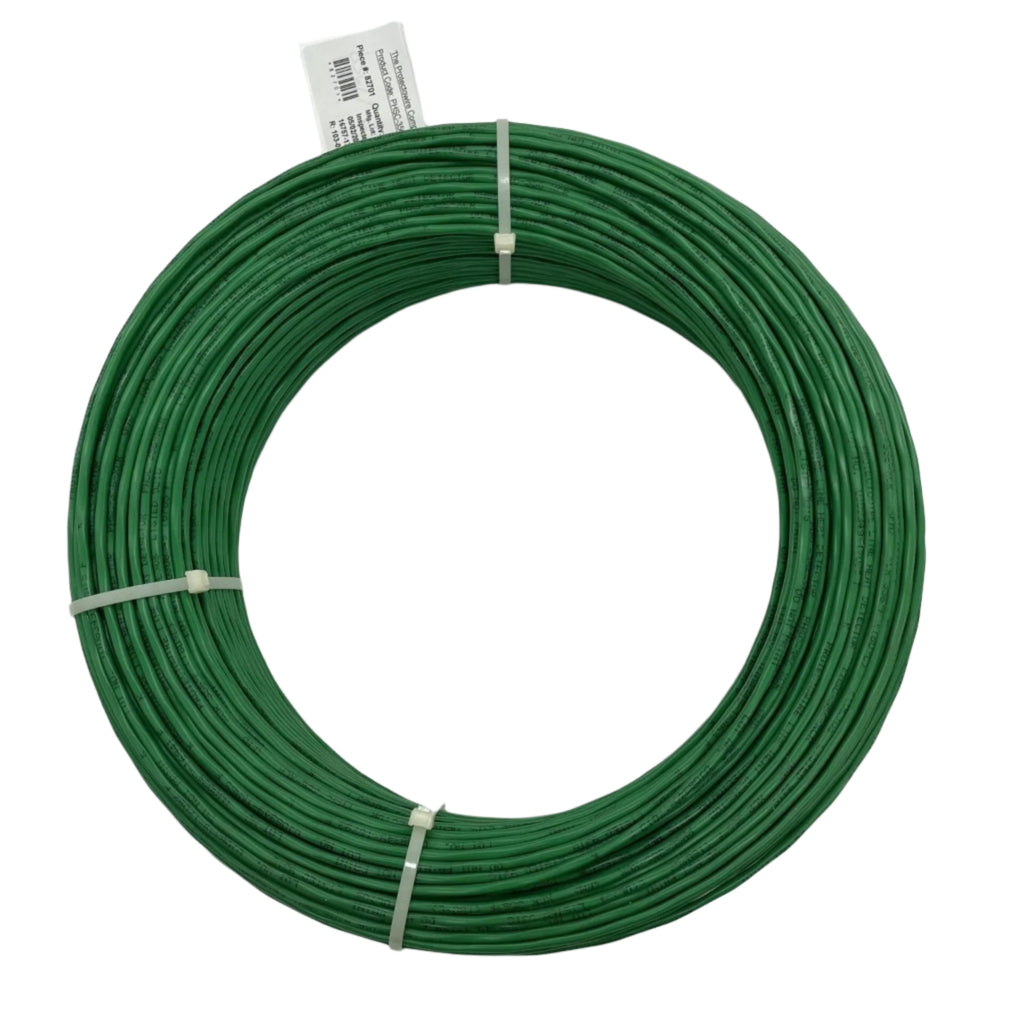

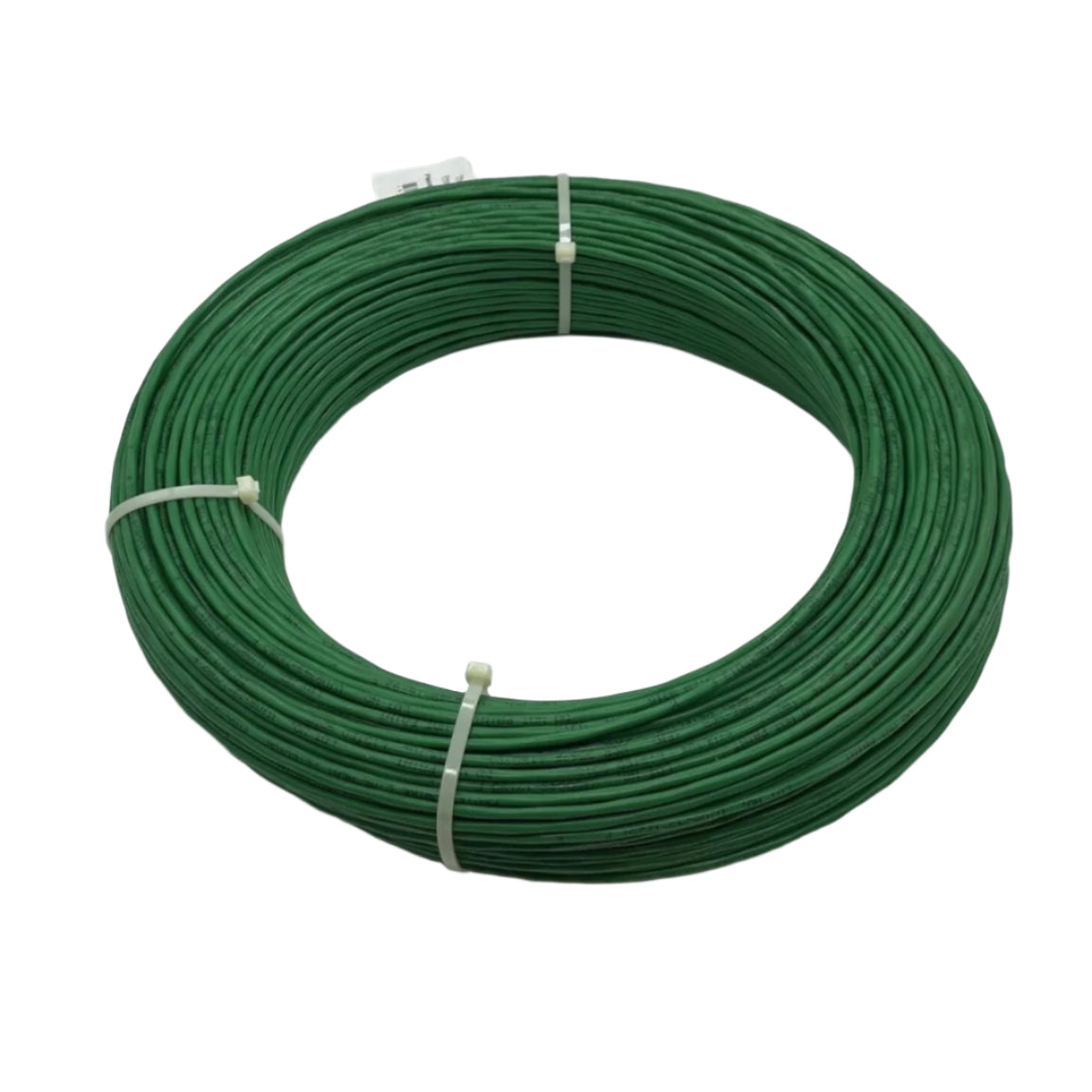

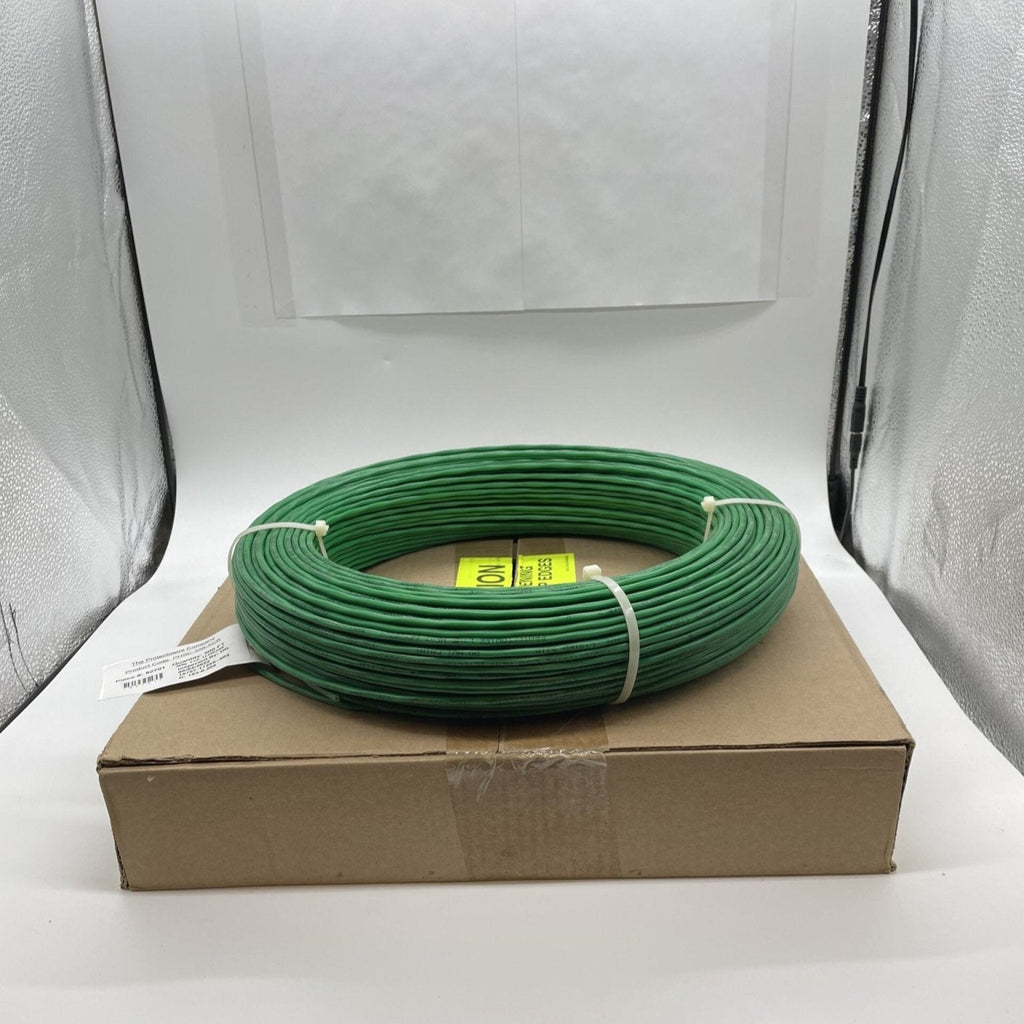

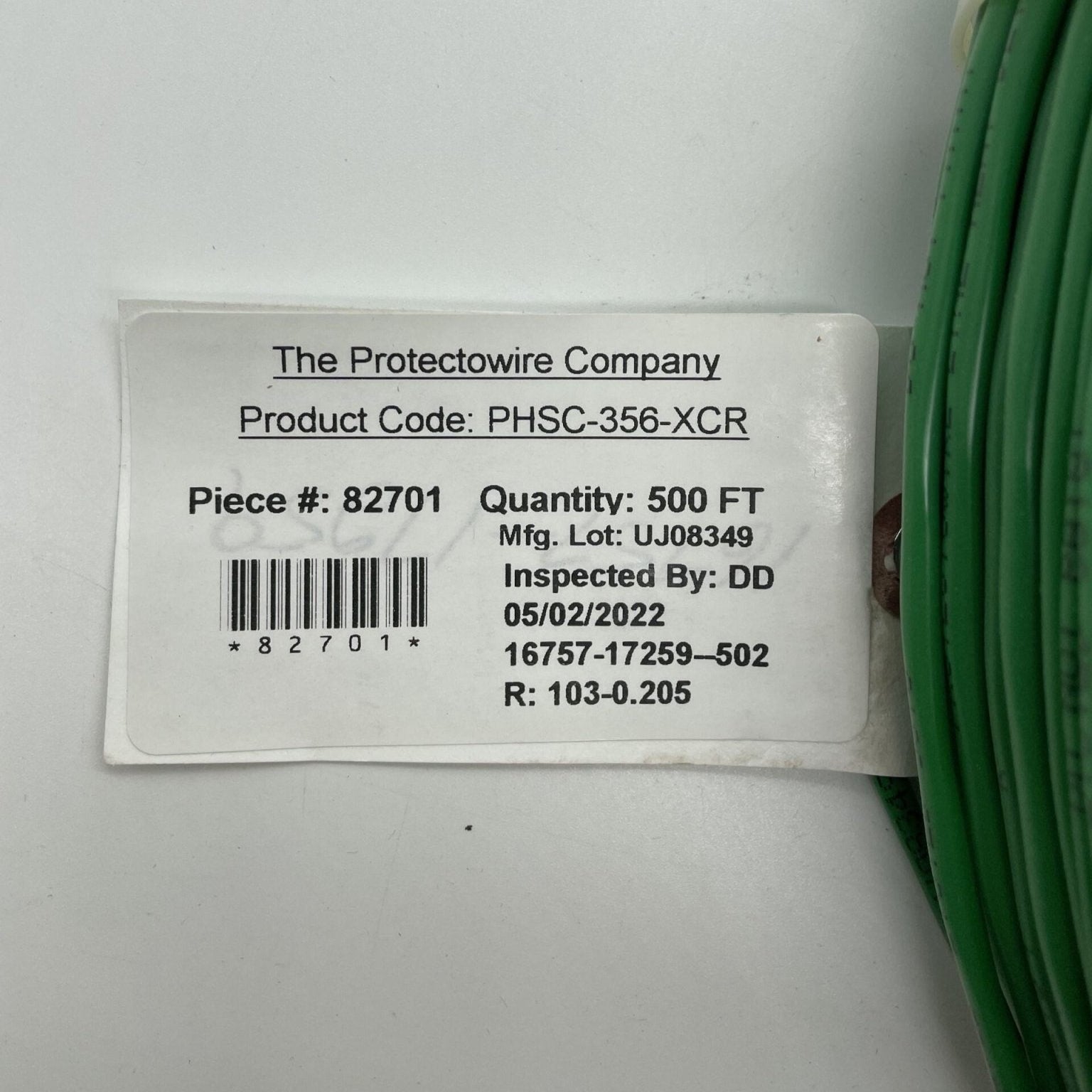

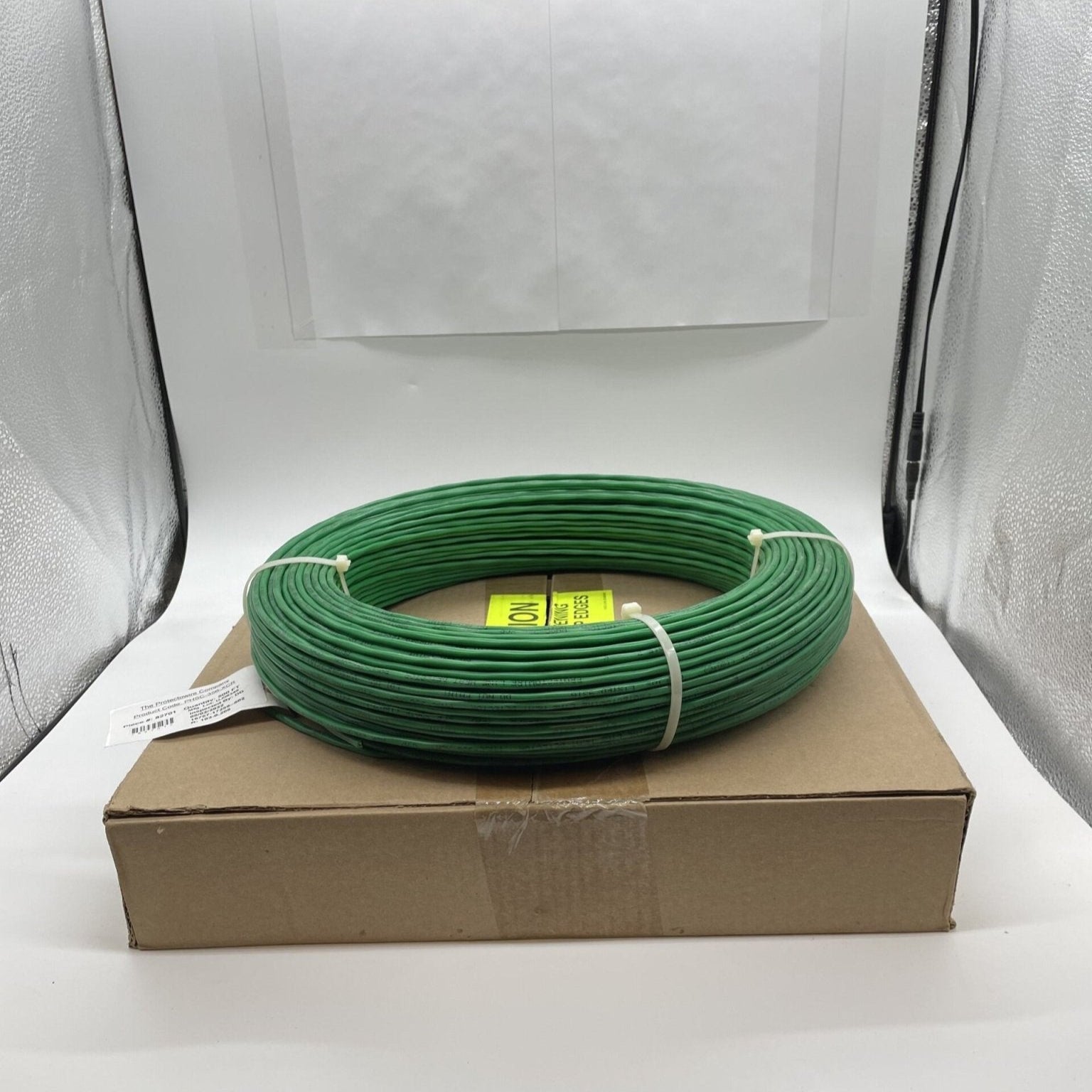

Protectowire PHSC-356-XCR Linear Heat Detector Cable, (356°F/180°C), type XRC, 500 Feet
PHSC-356-XCR is a Protectowire PHSC digital (fixed-temperature) linear heat detector cable with a 356°F (180°C) alarm temperature and a Type XCR outer jacket. It senses heat at any point along its length: at the rated temperature the heat-sensitive polymer on the two twisted steel conductors yields and the conductors short, which initiates the alarm. The XCR jacket is a fluoropolymer intended for both interior and exterior environments; the manufacturer cites chemical, abrasion and weather resistance and high-temperature performance.
Key Features
- Fixed-temperature digital linear heat detector, alarm temperature 356°F (180°C)
- Maximum ambient (installation) temperature 250°F (121°C); minimum -40°F (-40°C)
- Type XCR (Extreme Corrosion Resistance) fluoropolymer outer jacket
- Manufacturer states XCR is the only heat detector FM-approved for corrosive environments
- Two steel conductors individually insulated with a heat-sensitive polymer and twisted together
- Detects heat at any point along its length; no minimum heated length and no calibration for ambient changes
- UL/cUL certified spacing up to 50 ft (15.2 m)
- Can share an initiating circuit with other initiating devices such as pull stations, heat and smoke detectors
- FM Approved for Class I, II and III, Division 1 hazardous areas when used with suitably approved Protectowire control equipment
Specifications
| Alarm temperature |
356°F (180°C) |
| Maximum ambient temperature |
250°F (121°C) |
| Minimum ambient temperature |
-40°F (-40°C) |
| Outer jacket |
XCR (Extreme Corrosion Resistance) fluoropolymer |
| Conductors |
Steel (PHSC type) |
| Maximum voltage rating |
30 VAC, 42 VDC |
| Conductor resistance |
0.185 ohms/ft (0.607 ohms/m) |
| Minimum bend radius |
2.5 in (6.4 cm) |
| Diameter |
Nominal 5/32 in (4 mm) |
| UL/cUL max. certified spacing |
50 ft (15.2 m) |
| FM max. certified spacing |
FM Approved for special application use only |
| Package length |
500 ft |
Compatible With
- Protectowire PIM-530, PIM-230 and PIM-120 interface modules
- Protectowire FireSystem control panels
- Compatible fire alarm control panel initiating circuits
Documents & Downloads
FAQ
What is the alarm temperature of the PHSC-356-XCR?
356°F (180°C), with a maximum ambient installation temperature of 250°F (121°C).
Where is the XCR jacket used?
XCR (Extreme Corrosion Resistance) is a fluoropolymer jacket for interior and exterior environments, with chemical, abrasion and weather resistance. Protectowire states it is the only heat detector FM-approved for corrosive environments.
What spacing is allowed?
UL/cUL approval allows spacing up to 50 ft (15.2 m). For FM, the 356°F rating is approved for special application use only.
Can it share a circuit with other devices?
Yes. Protectowire linear heat detector can be used on the same initiating circuit as other initiating devices.
