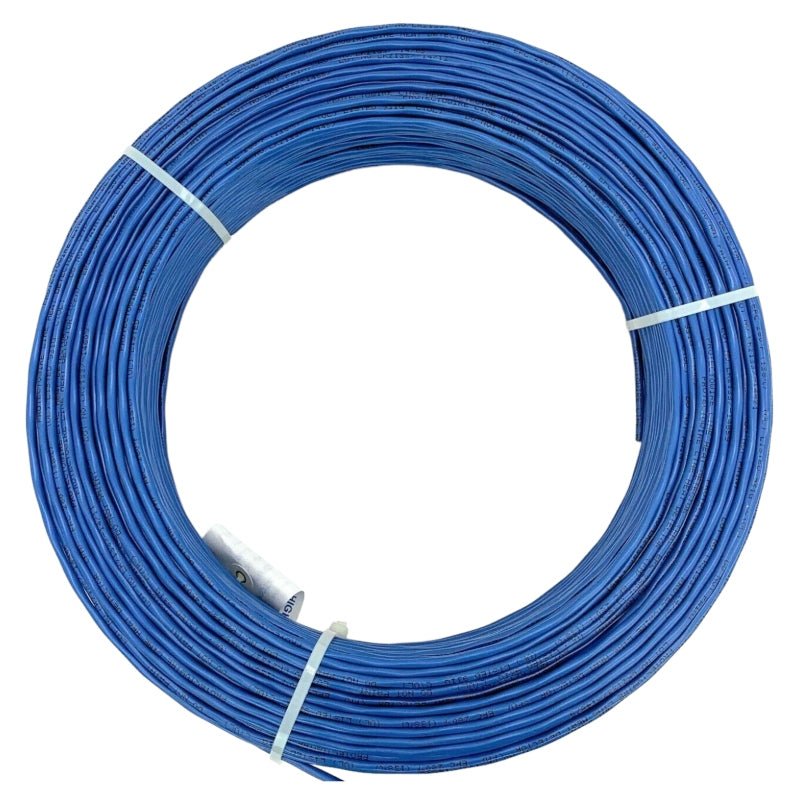

Protectowire PHSC-280-XCR Linear Heat Detector Cable, (280°F/138°C), type XCR, 500 Feet
PHSC-280-XCR is a Protectowire PHSC digital (fixed-temperature) linear heat detector cable with a 280°F (138°C) alarm temperature and a Type XCR outer jacket. It senses heat at any point along its length: at the rated temperature the heat-sensitive polymer on the two twisted steel conductors yields and the conductors short, which initiates the alarm. The XCR jacket is a fluoropolymer intended for both interior and exterior environments; the manufacturer cites chemical, abrasion and weather resistance and high-temperature performance.
Key Features
- Fixed-temperature digital linear heat detector, alarm temperature 280°F (138°C)
- Maximum ambient (installation) temperature 200°F (93°C); minimum -40°F (-40°C)
- Type XCR (Extreme Corrosion Resistance) fluoropolymer outer jacket
- Manufacturer states XCR is the only heat detector FM-approved for corrosive environments
- Two steel conductors individually insulated with a heat-sensitive polymer and twisted together
- Detects heat at any point along its length; no minimum heated length and no calibration for ambient changes
- UL/cUL certified spacing up to 50 ft (15.2 m)
- Can share an initiating circuit with other initiating devices such as pull stations, heat and smoke detectors
- FM Approved for Class I, II and III, Division 1 hazardous areas when used with suitably approved Protectowire control equipment
Specifications
| Alarm temperature |
280°F (138°C) |
| Maximum ambient temperature |
200°F (93°C) |
| Minimum ambient temperature |
-40°F (-40°C) |
| Outer jacket |
XCR (Extreme Corrosion Resistance) fluoropolymer |
| Conductors |
Steel (PHSC type) |
| Maximum voltage rating |
30 VAC, 42 VDC |
| Conductor resistance |
0.185 ohms/ft (0.607 ohms/m) |
| Minimum bend radius |
2.5 in (6.4 cm) |
| Diameter |
Nominal 5/32 in (4 mm) |
| UL/cUL max. certified spacing |
50 ft (15.2 m) |
| FM max. certified spacing |
25 ft (7.6 m) |
| Package length |
500 ft |
Compatible With
- Protectowire PIM-530, PIM-230 and PIM-120 interface modules
- Protectowire FireSystem control panels
- Compatible fire alarm control panel initiating circuits
Documents & Downloads
FAQ
At what temperature does PHSC-280-XCR alarm?
280°F (138°C). The maximum ambient installation temperature is 200°F (93°C), and the minimum is -40°F (-40°C).
Where is the XCR jacket used?
The XCR fluoropolymer jacket is for interior and exterior environments, including corrosive areas, with chemical, abrasion and weather resistance.
Can it share a circuit with other devices?
Yes. It can share an initiating circuit with other initiating devices such as pull stations and heat and smoke detectors.
What spacing applies?
Up to 50 ft (15.2 m) for UL/cUL and 25 ft (7.6 m) for FM.
