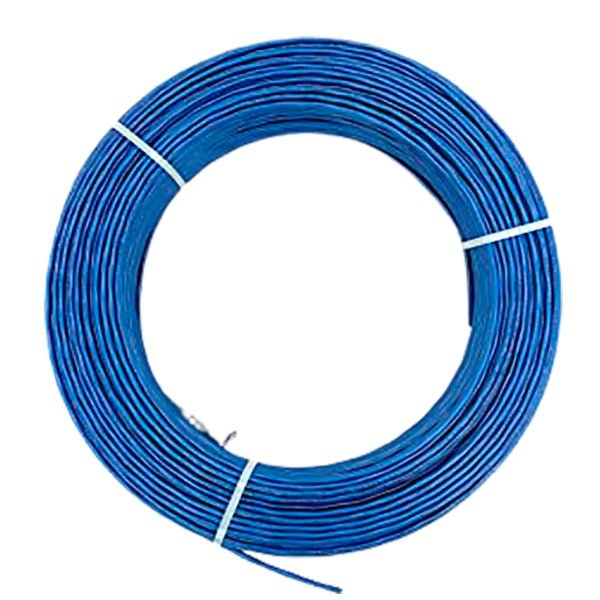

Protectowire PHSC-280-EPC is linear heat detector cable rated to alarm at 280°F (138°C), with the EPC vinyl outer jacket, supplied as a 500 ft length. It detects heat at any point along its length.
The cable has two steel conductors, each insulated with a heat-sensitive polymer and twisted together under spring pressure. At the rated temperature the insulation yields and the conductors touch, starting an alarm at the first heated point. No calibration is needed for ambient temperature or cable length, and it can share a circuit with pull stations, heat detectors and smoke detectors.
Specifications
| Alarm temperature |
280°F (138°C) |
| Max ambient temperature |
200°F (93°C) |
| Jacket |
EPC extruded PVC, flame retardant |
| Spacing |
UL/cUL 50 ft (15.2 m); FM 25 ft (7.6 m) |
| Max voltage |
30 VAC, 42 VDC |
| Resistance |
0.185 ohm/ft |
| Diameter |
5/32 in. (4 mm) nominal |
| Min bend radius |
2.5 in. |
| Weight |
8 lb per 500 ft |
| Length |
500 ft |
Installation notes
- EPC jacket is for interior commercial and industrial applications
- Choose the alarm rating by the maximum ambient temperature, as for sprinklers
- Splicing and junctions can be made with common tools
- FM approved for Class I, II and III, Division 1 hazardous areas only with suitably approved Protectowire control equipment
- Also available on messenger wire as PHSC-280-EPC-M
Related models
PHSC-280-XCR has the corrosion resistant XCR jacket, and PHSC-220-EPC and PHSC-356-EPC are the neighboring temperature ratings.
