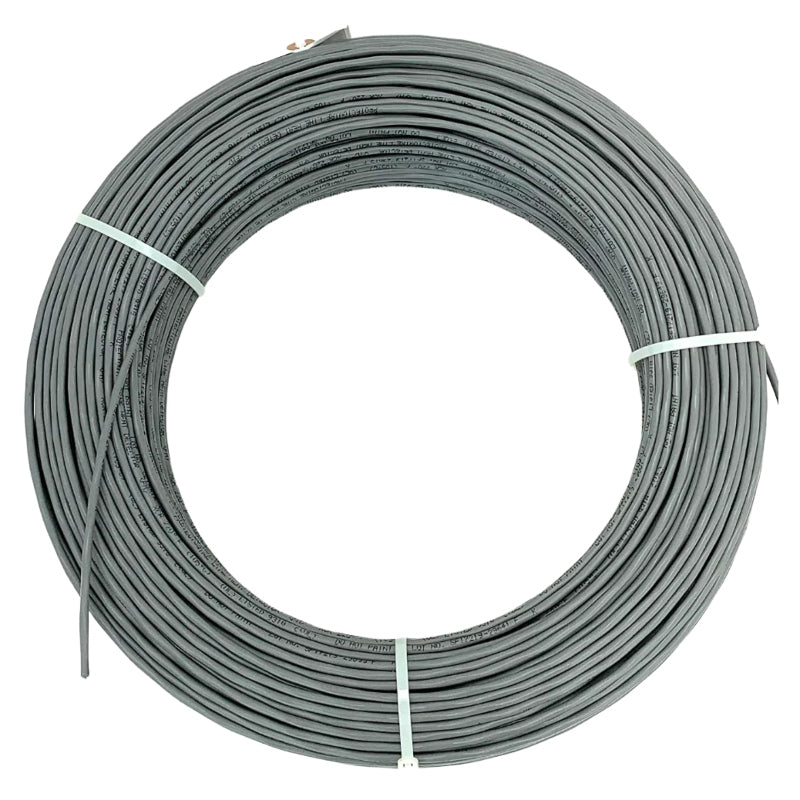

Protectowire PHSC-220-XCR-M Linear Heat Detector Cable, (220°F/105°C), type XCR on Msg, 500 Feet
PHSC-220-XCR-M is a Protectowire PHSC digital (fixed-temperature) linear heat detector cable with a 220°F (105°C) alarm temperature and a Type XCR outer jacket. It senses heat at any point along its length: at the rated temperature the heat-sensitive polymer on the two twisted steel conductors yields and the conductors short, which initiates the alarm. The XCR jacket is a fluoropolymer intended for both interior and exterior environments; the manufacturer cites chemical, abrasion and weather resistance and high-temperature performance. The -M suffix means the detector is supplied on a 316 stainless steel messenger wire, wound around the cable about once per foot, for runs where there is no convenient mounting surface.
Key Features
- Fixed-temperature digital linear heat detector, alarm temperature 220°F (105°C)
- Maximum ambient (installation) temperature 175°F (79°C); minimum -40°F (-40°C)
- Type XCR (Extreme Corrosion Resistance) fluoropolymer outer jacket
- Manufacturer states XCR is the only heat detector FM-approved for corrosive environments
- Two steel conductors individually insulated with a heat-sensitive polymer and twisted together
- Detects heat at any point along its length; no minimum heated length and no calibration for ambient changes
- UL/cUL certified spacing up to 50 ft (15.2 m)
- Can share an initiating circuit with other initiating devices such as pull stations, heat and smoke detectors
- FM Approved for Class I, II and III, Division 1 hazardous areas when used with suitably approved Protectowire control equipment
- Supplied on 316 stainless steel messenger wire (about one turn per foot); turnbuckles and eyebolts are required at each end of the run
Specifications
| Alarm temperature |
220°F (105°C) |
| Maximum ambient temperature |
175°F (79°C) |
| Minimum ambient temperature |
-40°F (-40°C) |
| Outer jacket |
XCR (Extreme Corrosion Resistance) fluoropolymer |
| Conductors |
Steel (PHSC type) |
| Maximum voltage rating |
30 VAC, 42 VDC |
| Conductor resistance |
0.185 ohms/ft (0.607 ohms/m) |
| Minimum bend radius |
2.5 in (6.4 cm) |
| Diameter |
Nominal 5/32 in (4 mm) |
| UL/cUL max. certified spacing |
50 ft (15.2 m) |
| FM max. certified spacing |
25 ft (7.6 m) |
| Messenger wire |
316 stainless steel, approx. one turn per foot (0.3 m) |
| Package length |
500 ft |
Compatible With
- Protectowire PIM-530, PIM-230 and PIM-120 interface modules
- Protectowire FireSystem control panels
- Compatible fire alarm control panel initiating circuits
Documents & Downloads
FAQ
What does the -M suffix mean?
The detector is supplied on 316 stainless steel messenger wire, wound around the cable about once per foot, for areas without suitable mounting surfaces.
How is messenger wire installed?
Use turnbuckles and eyebolts at each end to tension the run. Runs between turnbuckles should not exceed 250 ft. (76 m), with intermediate fasteners every 15 to 50 ft. (4.5 to 15 m).
What spacing and ambient temperature apply?
The PHSC-220-XCR is rated for 50 ft. (15.2 m) UL/cUL and 25 ft. (7.6 m) FM spacing, with a 175 °F (79 °C) maximum ambient.
Can different temperature ratings share a circuit?
Yes. Protectowire states different temperature detectors may be used in the same initiating circuit.
