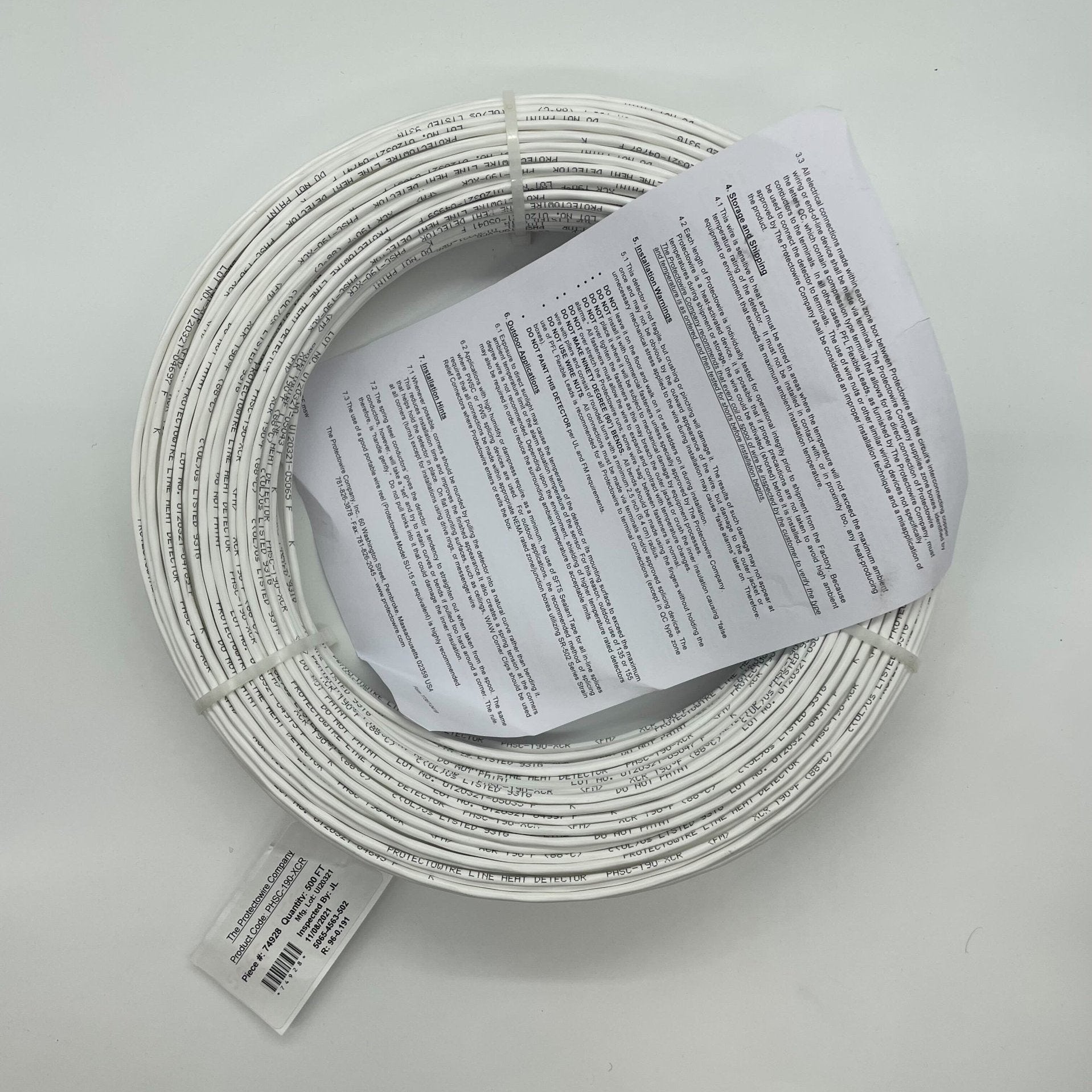

Protectowire PHSC-190-XCR — digital linear heat detection cable with a fluoropolymer XCR jacket, alarm rated 190 °F (88 °C).
Protectowire is a fixed-temperature line-type detector: two steel conductors, each insulated with a heat-sensitive polymer and twisted under spring pressure, taped and jacketed. At the rated temperature the insulation yields at the first heated point anywhere along the run and the conductors touch. No calibration or minimum heated length is needed. XCR is the jacket for abrasion, chemicals and weather.
- Alarm 190 °F (88 °C); max recommended ambient 150 °F (66 °C), min -40 °F
- Maximum certified spacing 50 ft (15.2 m) UL, 30 ft (9.1 m) FM
- Resistance 0.185 ohms/ft (0.607 ohms/m); rated 30 VAC, 42 VDC max
- Nominal diameter 5/32 in. (4 mm); minimum bend radius 2.5 in. (6.4 cm)
- Continuous runs only, no taps or branches; spliced with PWS or PWSC devices
Match temperature and jacket both. PHSC-155-XCR, PHSC-220-XCR, PHSC-280-XCR and PHSC-356-XCR are the other XCR ratings, while PHSC-190-EPC and PHSC-190-LSZH share this alarm point on other jackets.
Documents
FAQ
What temperature does PHSC-190-XCR alarm at?
190°F (88°C), with a maximum recommended ambient of 150°F (66°C).
Can the cable be branched or tapped?
No. Protectowire must be installed in continuous runs without taps or branches, on a supervised initiating circuit of an approved control unit.
What is the XCR jacket for?
XCR is a fluoropolymer jacket for interior and exterior use with chemical, abrasion and weather resistance; Protectowire states it is FM approved for corrosive environments.
Does it need calibration?
No. It is a fixed-temperature digital detector that alarms at the first heated point, with no calibration for ambient temperature changes.
