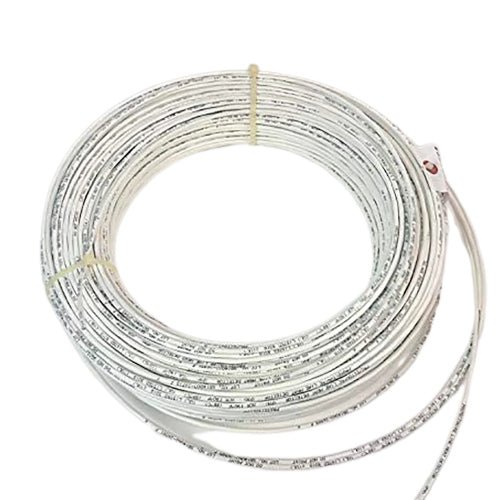

Protectowire PHSC-190-EPC-M Linear Heat Detector Cable, (190°F/88°C), type EPC on Msg, 500 Feet
PHSC-190-EPC-M is a Protectowire PHSC digital (fixed-temperature) linear heat detector cable with a 190°F (88°C) alarm temperature and a Type EPC outer jacket. It senses heat at any point along its length: at the rated temperature the heat-sensitive polymer on the two twisted steel conductors yields and the conductors short, which initiates the alarm. The EPC jacket is a flame-retardant vinyl intended for interior commercial and industrial applications; the manufacturer cites low moisture absorption, resistance to many common chemicals and flexibility at low temperatures. The -M suffix means the detector is supplied on a 316 stainless steel messenger wire, wound around the cable about once per foot, for runs where there is no convenient mounting surface.
Key Features
- Fixed-temperature digital linear heat detector, alarm temperature 190°F (88°C)
- Maximum ambient (installation) temperature 150°F (66°C); minimum -40°F (-40°C)
- Type EPC (extruded polyvinyl chloride), flame-retardant vinyl outer jacket
- Two steel conductors individually insulated with a heat-sensitive polymer and twisted together
- Detects heat at any point along its length; no minimum heated length and no calibration for ambient changes
- UL/cUL certified spacing up to 50 ft (15.2 m)
- Can share an initiating circuit with other initiating devices such as pull stations, heat and smoke detectors
- FM Approved for Class I, II and III, Division 1 hazardous areas when used with suitably approved Protectowire control equipment
- Supplied on 316 stainless steel messenger wire (about one turn per foot); turnbuckles and eyebolts are required at each end of the run
- Messenger wire runs: maximum 250 ft (76 m) between turnbuckles, intermediate fasteners every 15-50 ft (4.5-15 m)
Specifications
| Alarm temperature |
190°F (88°C) |
| Maximum ambient temperature |
150°F (66°C) |
| Minimum ambient temperature |
-40°F (-40°C) |
| Outer jacket |
EPC (extruded polyvinyl chloride), flame-retardant vinyl |
| Conductors |
Steel (PHSC type) |
| Maximum voltage rating |
30 VAC, 42 VDC |
| Conductor resistance |
0.185 ohms/ft (0.607 ohms/m) |
| Minimum bend radius |
2.5 in (6.4 cm) |
| Diameter |
Nominal 5/32 in (4 mm) |
| UL/cUL max. certified spacing |
50 ft (15.2 m) |
| FM max. approved spacing |
30 ft (9.1 m) |
| Messenger wire |
316 stainless steel, approx. one turn per foot (0.3 m) |
| Package length |
500 ft |
Compatible With
- Protectowire PIM-530, PIM-230 and PIM-120 interface modules
- Protectowire FireSystem control panels
- Compatible fire alarm control panel initiating circuits
Documents & Downloads
FAQ
What does the -M suffix mean?
The detector is supplied on 316 stainless steel messenger wire wound around it at about one turn per foot, for areas without suitable support structures or mounting surfaces.
How is a messenger wire run supported?
Turnbuckles and eyebolts are required at each end to tension the run. Runs should not exceed 250 ft between turnbuckles, with intermediate fasteners every 15 to 50 ft; outdoor runs need closer fastener spacing.
What spacing is allowed?
The PHSC-190-EPC-M has UL/cUL spacing up to 50 ft (15.2 m) and FM approved spacing up to 30 ft (9.1 m).
What is the maximum ambient temperature?
For the 190°F (88°C) alarm rating, the maximum ambient temperature is 150°F (66°C).
