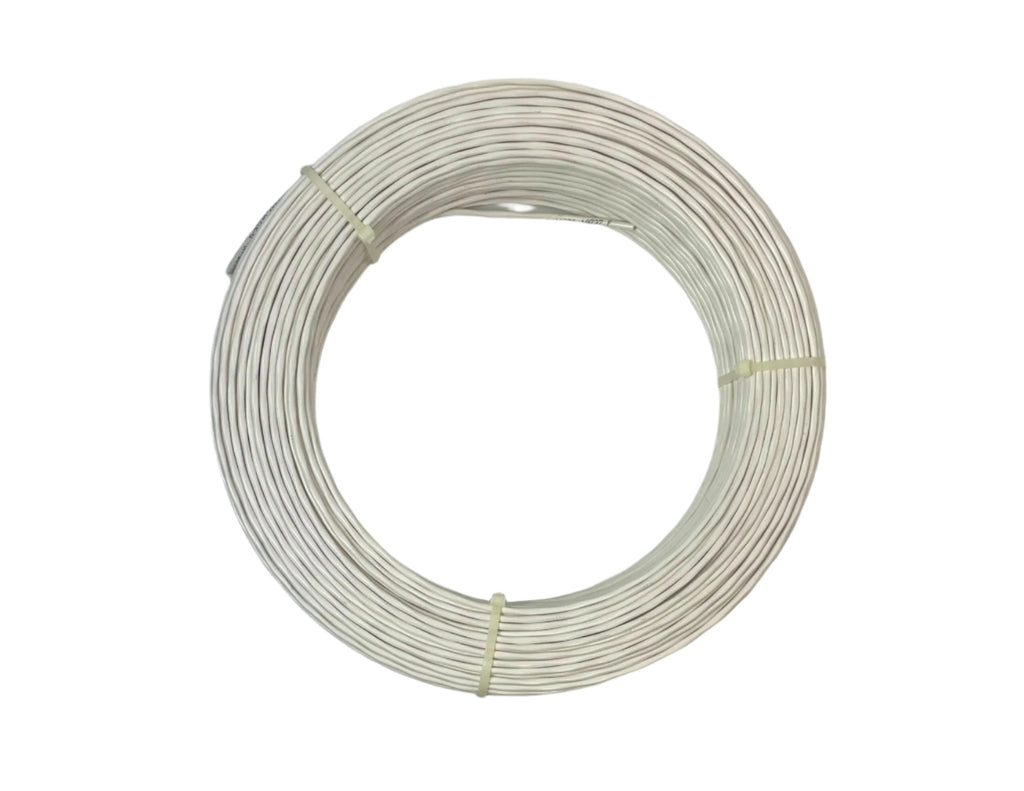

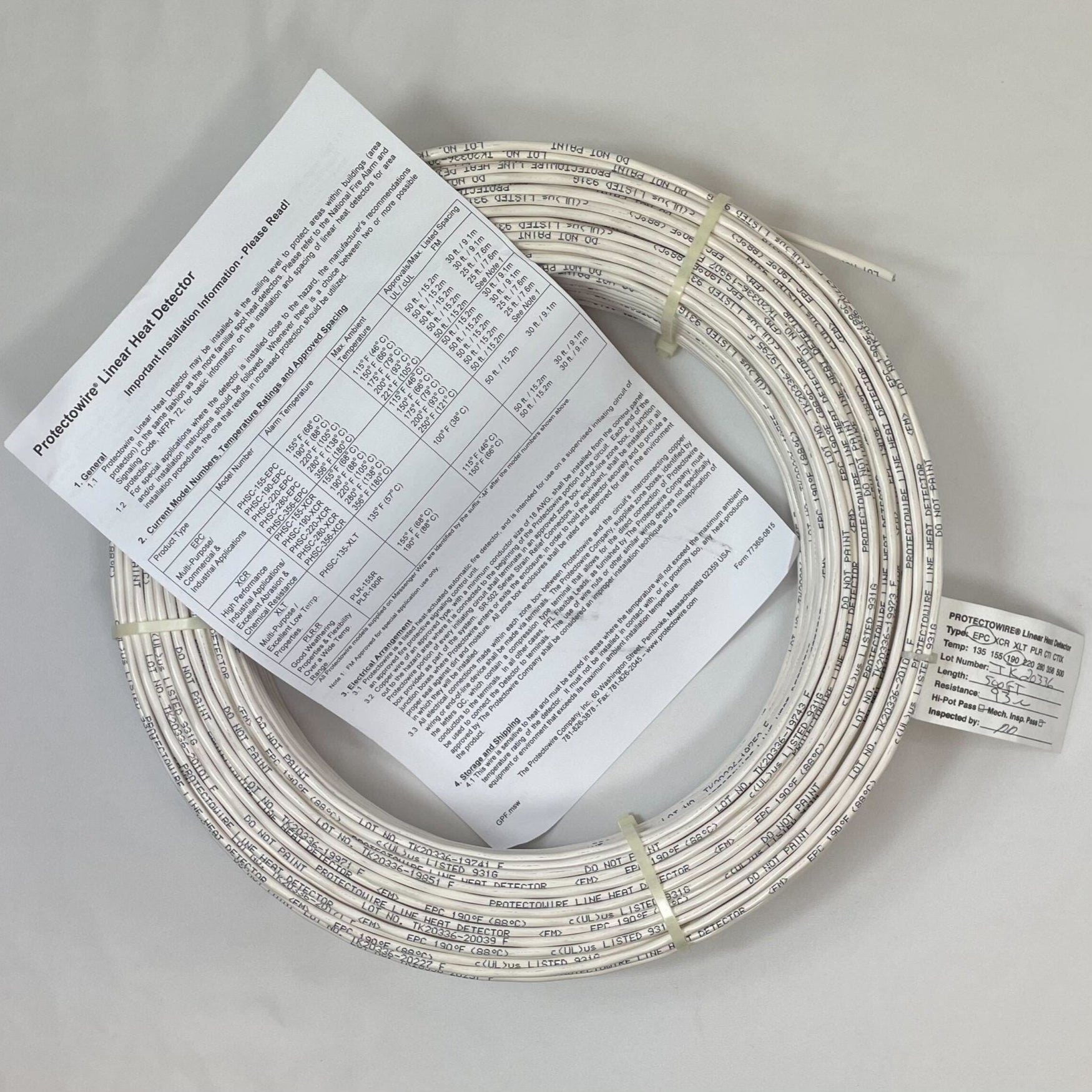

Protectowire PHSC-190-EPC — fixed temperature digital linear heat detector in a flame retardant vinyl jacket, alarming at 190 °F.
Two steel conductors are individually insulated with a heat sensitive polymer and twisted together under spring pressure, then taped and jacketed. At the rated temperature the polymer yields at the first heated point anywhere along the run and the conductors touch, shorting the circuit. No minimum heated length is involved.
- Alarm 190 °F (88 °C); maximum recommended ambient 150 °F (66 °C)
- Certified spacing 50 ft. UL/cUL, 30 ft. FM
- EPC vinyl jacket: low moisture absorption, resists many chemicals
- Conductor resistance 0.185 Ω/ft. (0.607 Ω/m) on two-wire models
- Nominal diameter 5/32" (4 mm); bend radius 2.5"
- Maximum voltage 30 VAC, 42 VDC
PHSC-190-XCR shares the 190 °F alarm point and the same spacings, but its jacket is fluoropolymer, so nothing about chemical immersion, low smoke or weathering reads across. PHSC-155-EPC is the same vinyl at 155 °F and PHSC-220-EPC has no UL spacing at all. Add -M for messenger wire.
Documents
FAQ
Does a minimum length need to be heated to alarm?
No. The detector alarms at the first heated point anywhere along its length, with no specific heated length or calibration for ambient temperature required.
Where should EPC cable be used?
The EPC flame-retardant vinyl jacket is designed for interior commercial and industrial applications; Type XCR fluoropolymer is the choice for exterior or harsh environments.
Can it share a circuit with other devices?
Yes. It is compatible with manual pull stations, heat detectors and smoke detectors on the same circuit, and different temperature ratings can be mixed on one initiating circuit.
What ambient temperature can it be installed in?
PHSC-190-EPC alarms at 190°F (88°C) and is rated for a maximum ambient of 150°F (66°C) and a minimum of -40°F (-40°C).
