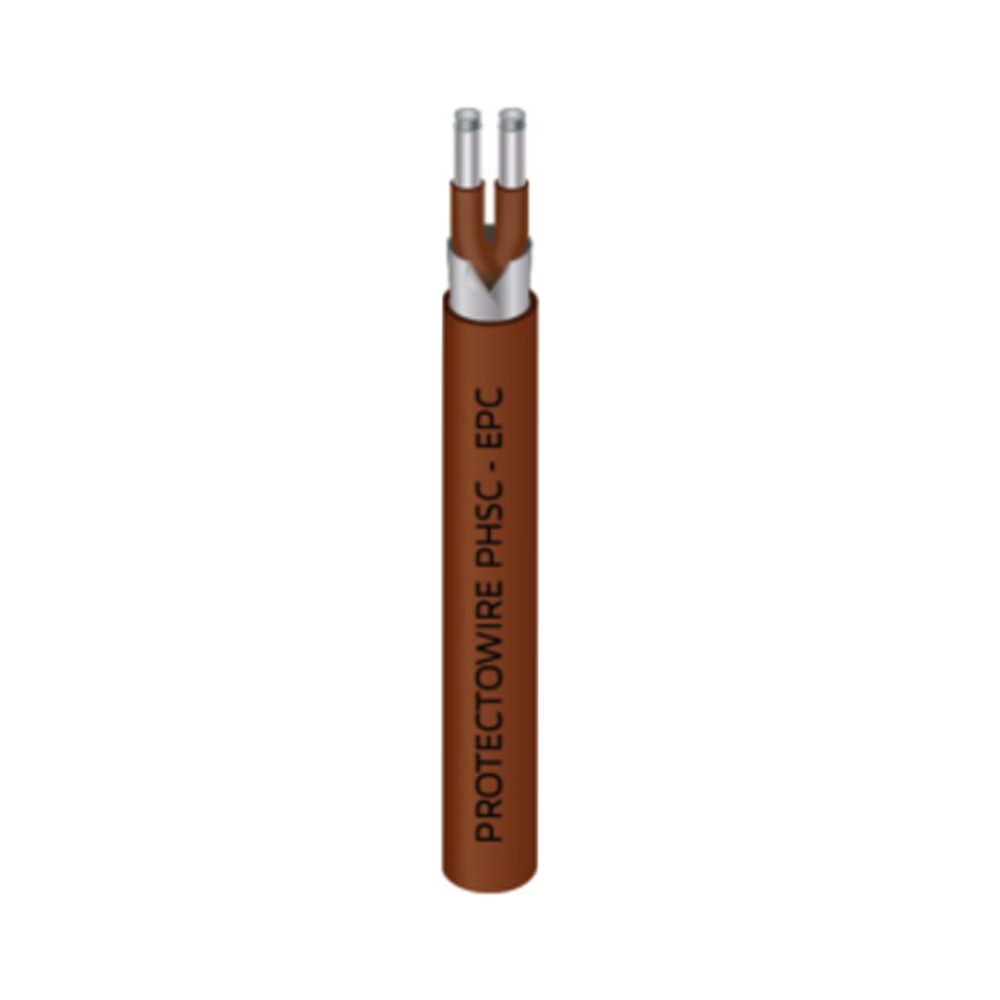

Protectowire, PHSC EPC 172°F 78°C Brown Jacket Linear Heat Detection
PHSC-172-EPC is a Protectowire PHSC digital (fixed-temperature) linear heat detector cable with a 172°F (78°C) alarm temperature and a Type EPC outer jacket. It senses heat at any point along its length: at the rated temperature the heat-sensitive polymer on the two twisted steel conductors yields and the conductors short, which initiates the alarm. The EPC jacket is a flame-retardant vinyl intended for interior commercial and industrial applications; the manufacturer cites low moisture absorption, resistance to many common chemicals and flexibility at low temperatures.
Key Features
- Fixed-temperature digital linear heat detector, alarm temperature 172°F (78°C)
- Maximum ambient (installation) temperature 130°F (54°C); minimum -40°F (-40°C)
- Type EPC (extruded polyvinyl chloride), flame-retardant vinyl outer jacket
- Two steel conductors individually insulated with a heat-sensitive polymer and twisted together
- Detects heat at any point along its length; no minimum heated length and no calibration for ambient changes
- UL/cUL listed spacing up to 50 ft (15.2 m)
- Can share an initiating circuit with other initiating devices such as pull stations, heat and smoke detectors
- FM Approved for Class I, II and III, Division 1 hazardous areas when used with suitably approved Protectowire control equipment
Specifications
| Alarm temperature |
172°F (78°C) |
| Maximum ambient temperature |
130°F (54°C) |
| Minimum ambient temperature |
-40°F (-40°C) |
| Outer jacket |
EPC (extruded polyvinyl chloride), flame-retardant vinyl |
| Conductors |
Steel (PHSC type) |
| Maximum voltage rating |
30 VAC, 42 VDC |
| Conductor resistance |
0.185 ohms/ft (0.607 ohms/m) |
| Minimum bend radius |
2.5 in (6.4 cm) |
| Diameter |
Nominal 5/32 in (4 mm) |
| UL/cUL max. listed spacing |
50 ft (15.2 m) |
| FM max. listed spacing |
30 ft (9.1 m) |
Compatible With
- Protectowire PIM-530, PIM-230 and PIM-120 interface modules
- Protectowire FireSystem control panels
- Compatible fire alarm control panel initiating circuits
