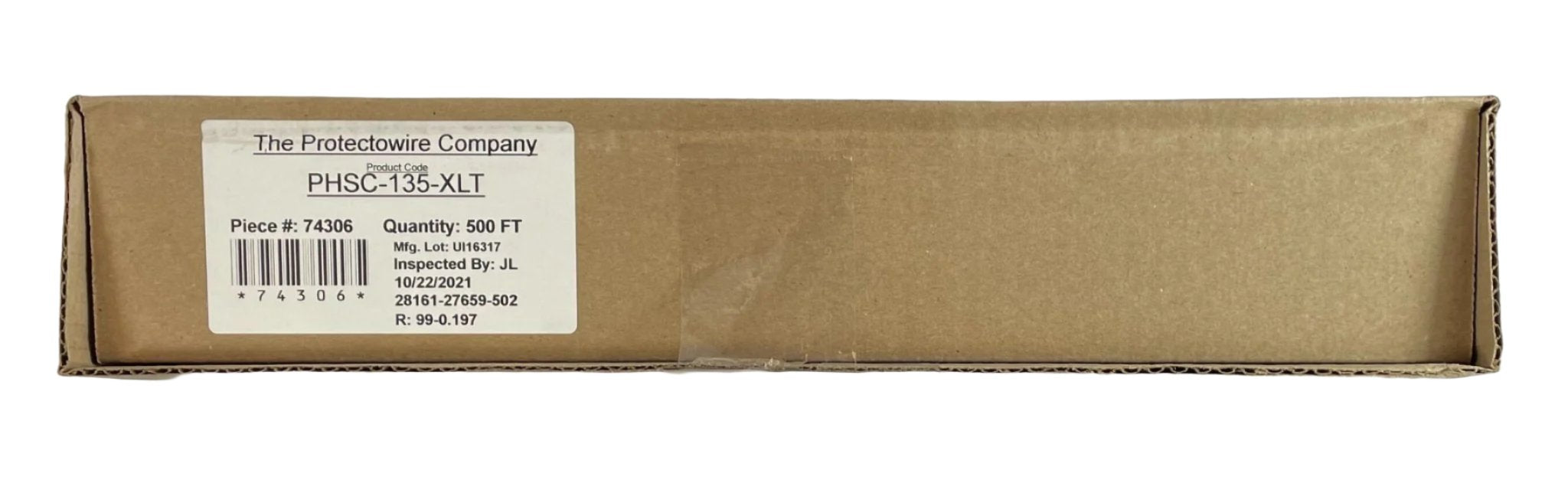

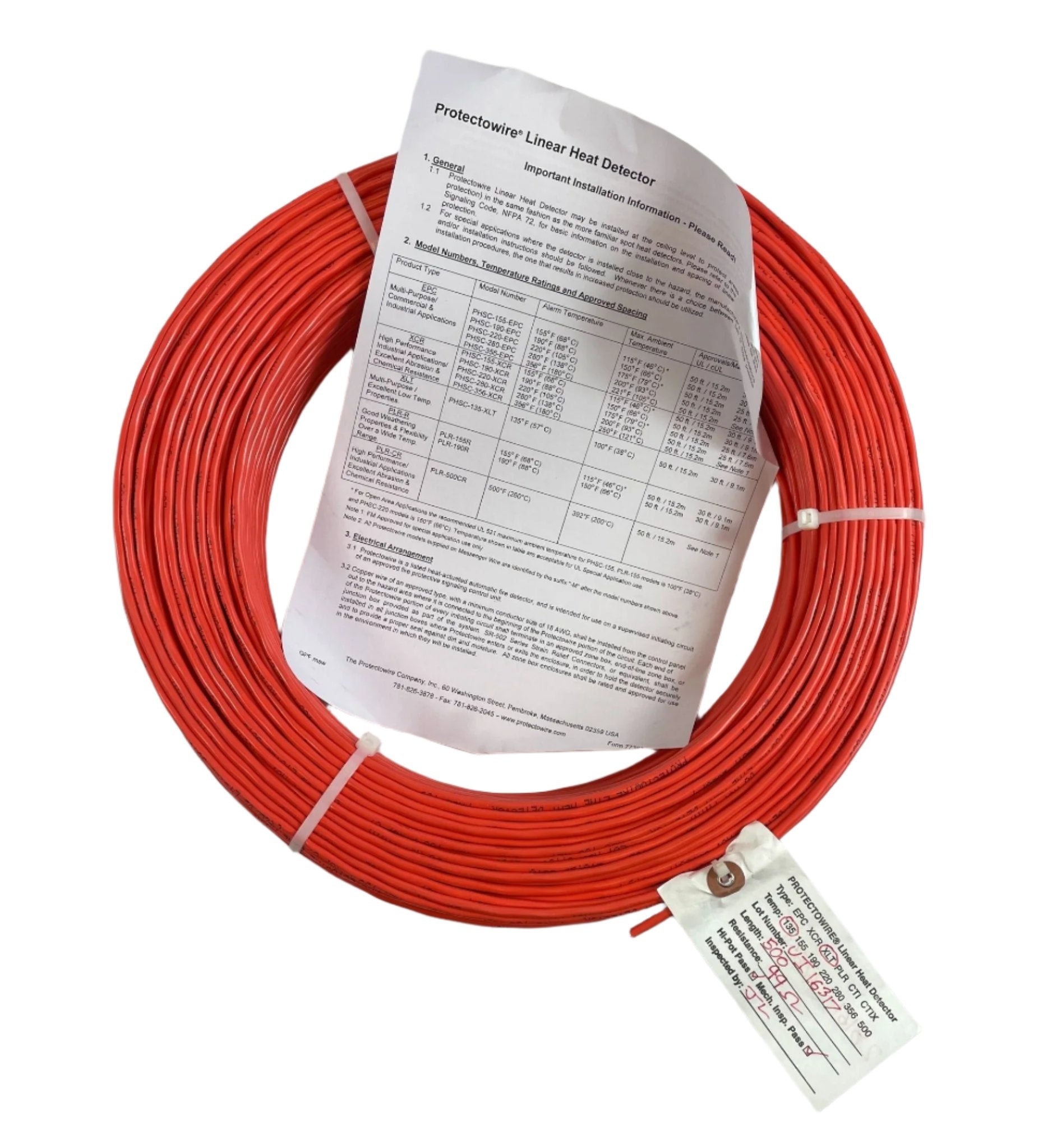

Protectowire PHSC-135-XLT — fixed-temperature linear heat detector cable with a 135 °F (57 °C) alarm rating and the XLT low-temperature jacket.
The detector is two steel conductors, each insulated with a heat-sensitive polymer and twisted together under spring pressure. At the rated temperature the polymer yields at the first heated point along the run and the conductors touch, alarming on a supervised initiating device circuit. Type XLT uses a proprietary flame-retardant polymer jacket made for cold storage and freezers, UL and FM tested to –60 °F (–51 °C).
- Alarm temperature 135 °F (57 °C); maximum recommended ambient 100 °F (38 °C)
- Maximum certified spacing 50 ft UL/cUL, 30 ft FM
- Maximum voltage 30 VAC, 42 VDC; resistance 0.185 Ω per ft
- Nominal diameter 5/32 in; minimum bend radius 2.5 in
- Nominal weight 8 lb per 500 ft
- Splice with PWS sleeves or PWSC connectors
XLT is the only 135 °F cable in the range. PHSC-155-EPC and PHSC-190-EPC are vinyl at 155 and 190 °F, PHSC-190-XCR is fluoropolymer, and an -M suffix adds messenger wire.
Documents
FAQ
Is the XLT cable suitable for freezers?
Yes. The XLT jacket is made specifically for cold storage and freezers, and the PHSC-135-XLT has been UL and FM tested to -60°F (-51°C).
What spacing applies?
Maximum spacing is 50 ft (15.2 m) UL/cUL and 30 ft (9.1 m) FM. Reduced spacing may be required by ceiling height, construction, obstructions or air movement.
Can the cable be branched or tapped?
No. It must be installed in continuous runs without taps or branches, beginning and ending in an approved zone box or end-of-line zone box with SR-502 strain relief connectors.
How is the cable spliced?
Use PWSK-3 or PWSC splicing connectors, which are the only approved methods of splicing the detector.
