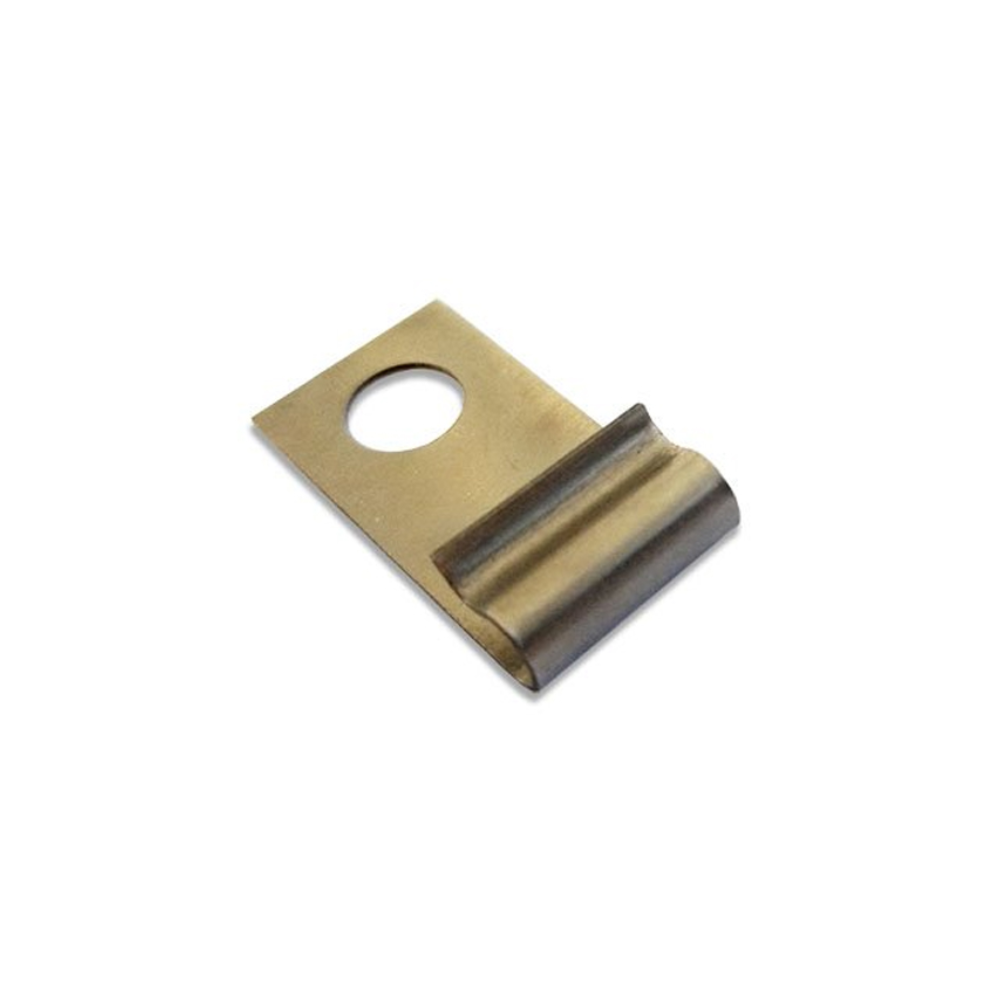

Protectowire JD-1 Mounting Clip 304 Stainless Steel Linear Heat Detector J Type Clip
The Protectowire JD-1 Mounting Clip is a durable 304 stainless steel linear heat detector mounting clip designed to simplify linear heat detection LHD installations. This J type mounting clip provides secure cable support and reliable performance in harsh industrial and outdoor environments.
Manufactured from 304 stainless steel, the Protectowire JD-1 offers excellent resistance to UV exposure, corrosion, and extreme weather conditions, making it ideal for demanding applications. The clip supports linear heat detector cable diameters from 0.145 inch to 0.165 inch, ensuring compatibility with a wide range of Protectowire and LHD systems.
Designed for easy installation, the JD-1 mounting clip features a 1/4 inch mounting hole and requires minimal insertion force, helping installers achieve fast and efficient installations. With a maximum recommended spacing of 5 feet, the clip provides secure and consistent cable positioning.
The Protectowire JD-1 is compatible with PHSC, PLR, CTI, and Fiber Optic LHD cables, making it a versatile mounting solution for commercial, industrial, and hazardous environments.
Key Features
• 304 stainless steel construction
• J type linear heat detector mounting clip
• Designed for Protectowire linear heat detection systems
• 1/4 inch mounting hole for easy installation
• Excellent UV, corrosion, and weather resistance
• Low insertion force for quick installation
• Compatible with multiple LHD cable types
• Suitable for harsh industrial environments
Applications
• Linear heat detection installations
• Industrial facilities
• Warehouses
• Tunnels and conveyors
• Power plants
• Hazardous environments
• Outdoor installations
Product Specifications
Brand: Protectowire
Model: JD-1
Material: 304 Stainless Steel
Temperature Range: -76°F to 572°F -60°C to 300°C
Cable Diameter Range: 0.145 inch to 0.165 inch 3.7 mm to 4.2 mm
Insertion Force: Approximately 2 to 3 lbs 9 to 13 Newtons
Mounting Hole Diameter: 0.25 inch 6.35 mm
Maximum Spacing: 5 ft 1.5 m
Compatibility: PHSC, PLR, CTI, Fiber Optic LHD
The Protectowire JD-1 Mounting Clip delivers durable, reliable support for linear heat detection cable installations in demanding environments.
