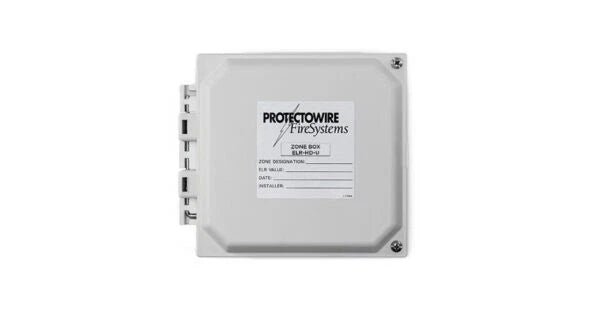

Protectowire ELR-HD-U is a heavy duty end-of-line zone box: a U-ELR-1 universal end-of-line resistor device with test switch, mounted in a fiberglass NEMA 4X (IP66) enclosure. It terminates Class B detection circuits that use Protectowire linear heat detector, and its molded reinforced polyester housing has excellent chemical resistance for highly corrosive atmospheres.
The U-ELR-1 has quick-connect clamping terminals so the linear heat detector fastens directly to the device. Pressing its test button shorts the detection circuit to simulate an alarm.
Specifications
| Device |
U-ELR-1 universal end-of-line resistor with test button |
| Enclosure |
Fiberglass reinforced polyester, NEMA 4X (IP66) |
| Inside dimensions |
Approx. 6 x 6 x 4 in. |
| Mounting panel |
4.81 x 4.81 in., mounted inside the cabinet |
| Cover |
Stainless steel captive cover screws into #10-32 brass inserts |
| Operating temperature |
-40°F to 158°F (-40°C to 70°C) |
| Weight |
2.0 lb |
| Compatible panels |
Protectowire FS2000, 2600HD and SRP 4x4 |
Installation notes
- Install in an accessible location, preferably not more than six feet above the floor
- Bends in the linear heat detector should have a minimum radius of 2.5 in. (6.4 cm)
- Strain relief connectors are not furnished; use SR-502 series watertight connectors (cable diameter 0.100 to 0.200 in.) and do not overtighten
Related models
- ELR-HD-4-QC: end-of-line resistor with quick connect and test button
- ELR-HD-1A-QC: end-of-line resistor with quick connect
- SR-502: strain relief connector
Documents
FAQ
What is the ELR-HD-U used for?
It terminates Class B detection circuits of fire alarm systems that use Protectowire linear heat detector, with a test switch to simulate an alarm.
Which control panels is it compatible with?
Protectowire lists the FS2000, 2600HD and SRP 4x4 control panels.
Are strain relief connectors included?
No. SR-502 series strain relief connectors are sold separately.
Can it be used outdoors or in corrosive areas?
Yes. The fiberglass NEMA 4X (IP66) enclosure is designed for highly corrosive atmospheres and is rated -40°F to 158°F.
