Potter PSN-106 10A Conventional Power Supply with 6 Outputs
The Potter PSN-106 is a 10 amp, six-output notification power supply with a regulated 24 VDC output. The PSN series offers 6 or 10 amps of continuous power through 4 or 6 outputs respectively, and each output is rated 3 amps and may be used continuously without derating.

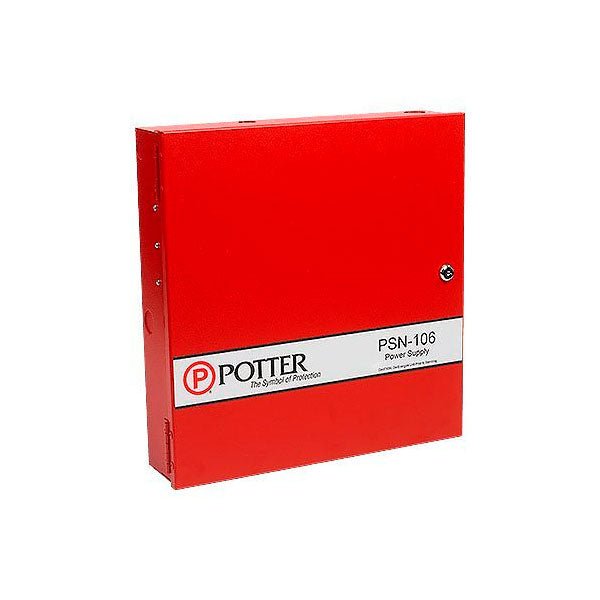

The supply runs on either 120 VAC or 220 VAC input, charges up to 55 AH batteries and houses up to 18 AH batteries in the cabinet. The cabinet is 18 gauge cold rolled steel with a red powder coat finish and a key lock. Knockouts on the sides and top give the installer options for wire routing and separation.
Features
- Quadrasync function synchronizes strobe circuits of up to four brands so they flash together: AMSECO, Gentex, Wheelock and System Sensor
- Each output can be set independently to one of four sync protocols or steady power
- Pass-Thru input mode lets outputs follow the input signal from a non-supported sync protocol, selectable per output
- Each output can be configured for Class A or B, constant power, ANSI Temporal Code 3, single, multiple or combo inputs, or door holder power
- Dipswitch programming and LED indicators, with an LED on each output to locate a trouble
- Trouble Memory lets an installer review past troubles
- Relays for general system and AC failure monitoring
Specifications
| Model |
Potter PSN-106 |
| Output current |
10 A continuous |
| Outputs |
6, each rated 3 A |
| Output voltage |
Regulated 24 VDC |
| Input |
120 VAC or 220 VAC |
| Battery charging |
Up to 55 AH; cabinet houses up to 18 AH |
| Enclosure |
18 gauge cold rolled steel, red powder coat, key lock |
Related models
Documents
FAQ
Which strobe brands can the PSN-106 synchronize?
Its Quadrasync feature synchronizes AMSECO, Gentex, Wheelock and System Sensor strobes. Each output can be set to its own sync protocol, so four brands can flash together.
Can it be used with any fire alarm panel?
Potter states it may be connected to any manufacturer's UL 864 certified FACP for activation and supervision. A Pass Thru mode lets the outputs follow the input signal from the panel.
What batteries does it support?
The charger supplies 27.3 V at 1 A and supports 7 to 55 Ah batteries. The cabinet houses batteries up to 18 Ah; larger ones go in an external cabinet.
Can the outputs be wired Class A?
Yes. The PSN-106 may be configured for up to three Class A (Style Z) notification circuits, and each 3 A output is set by DIP switch.
