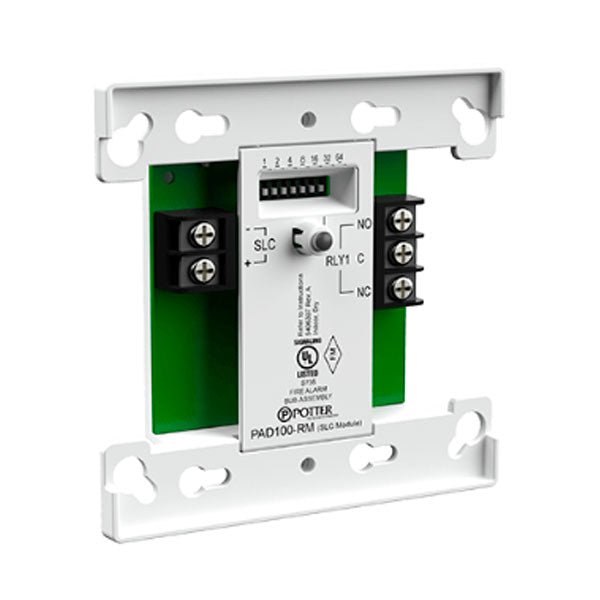

Potter PAD100-RM (also written PAD100RM) is an addressable relay module that consumes one SLC loop address and provides a single Form C dry contact. It gives an addressable fire alarm control panel a programmable contact for equipment the panel does not power itself. A red LED flashes as the panel polls the module, so supervision is visible at the device.
The module mounts on a 4-inch square box or a two-gang box. Potter notes the relay may ship activated, so reset the panel before terminating the output.
Specifications
| Relay output |
One Form C contact, 2 A at 30 Vdc and 0.5 A at 125 Vac |
| Operating voltage |
24.0 V, 240 µA maximum SLC current in standby and alarm |
| Addressing |
Seven-position DIP switch, addresses 1 to 127; up to 127 modules per loop |
| SLC wiring |
Class A, Class B and Class X; terminals accept 22 to 12 AWG |
| Dimensions |
4.17 in. (106 mm) square x 1.14 in. (29 mm) deep |
| Mounting |
2-1/2 in. two-gang box or 1-1/2 in. deep 4 in. square box |
| Environment |
32 to 120°F (0 to 49°C), 0 to 93% non-condensing |
| Approvals |
UUKL certified for smoke control |
| Compatibility |
Potter IPA and AFC/ARC series panels |
Notes
-
PAD100-OROI also uses one address but pairs the same relay with a monitored Class B input reported as a sub-point. The PAD100-RM has the relay only.
- Because the relay can ship activated, reset the panel before wiring the output.
FAQ
How many addresses does the PAD100-RM use?
One SLC address. Up to 127 modules can be on a loop.
What is the relay rating?
One Form C contact, 2 A at 30 Vdc and 0.5 A at 125 Vac.
Can it be wired Class A?
Yes. The SLC supports Class A, Class B and Class X wiring.
