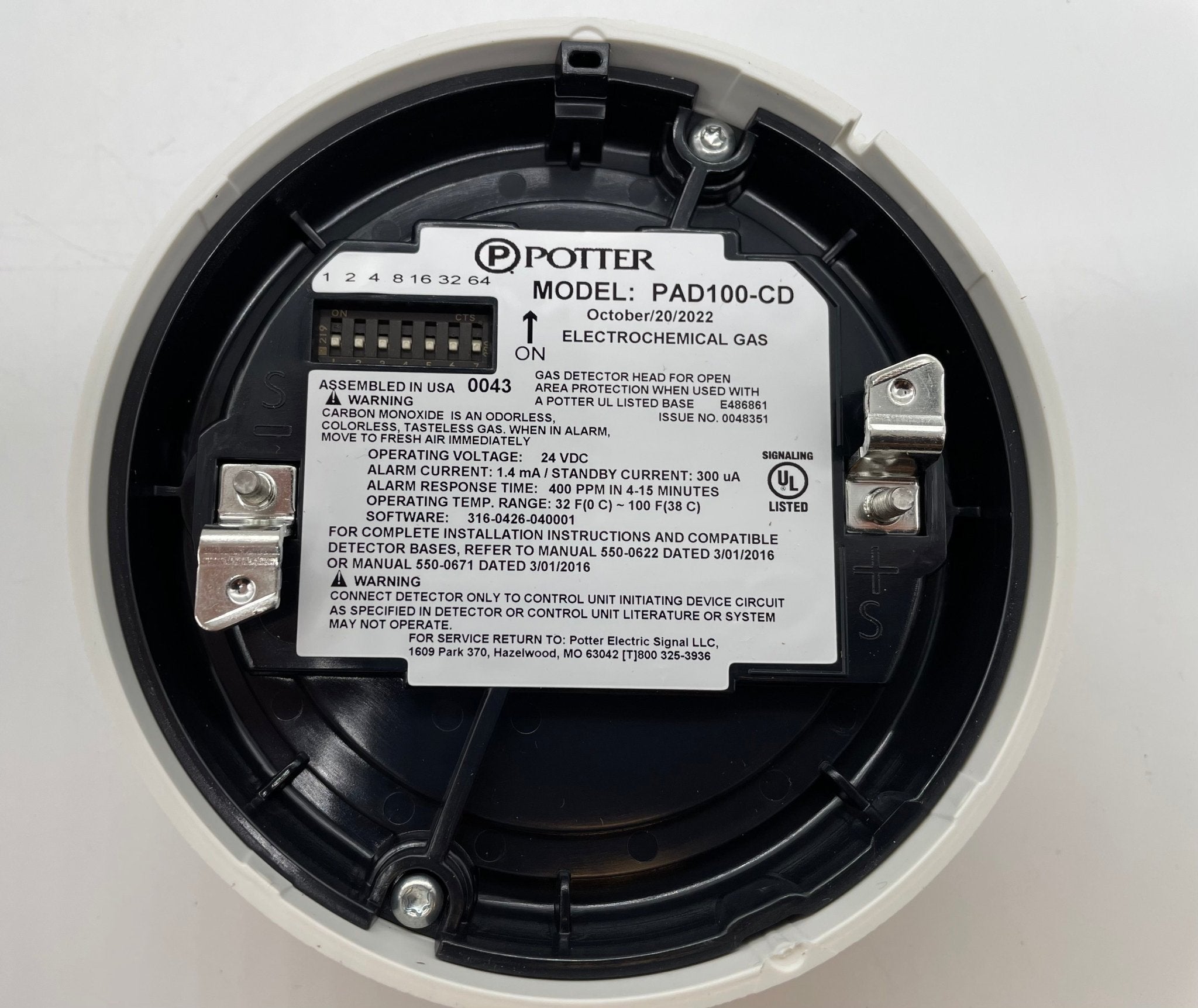

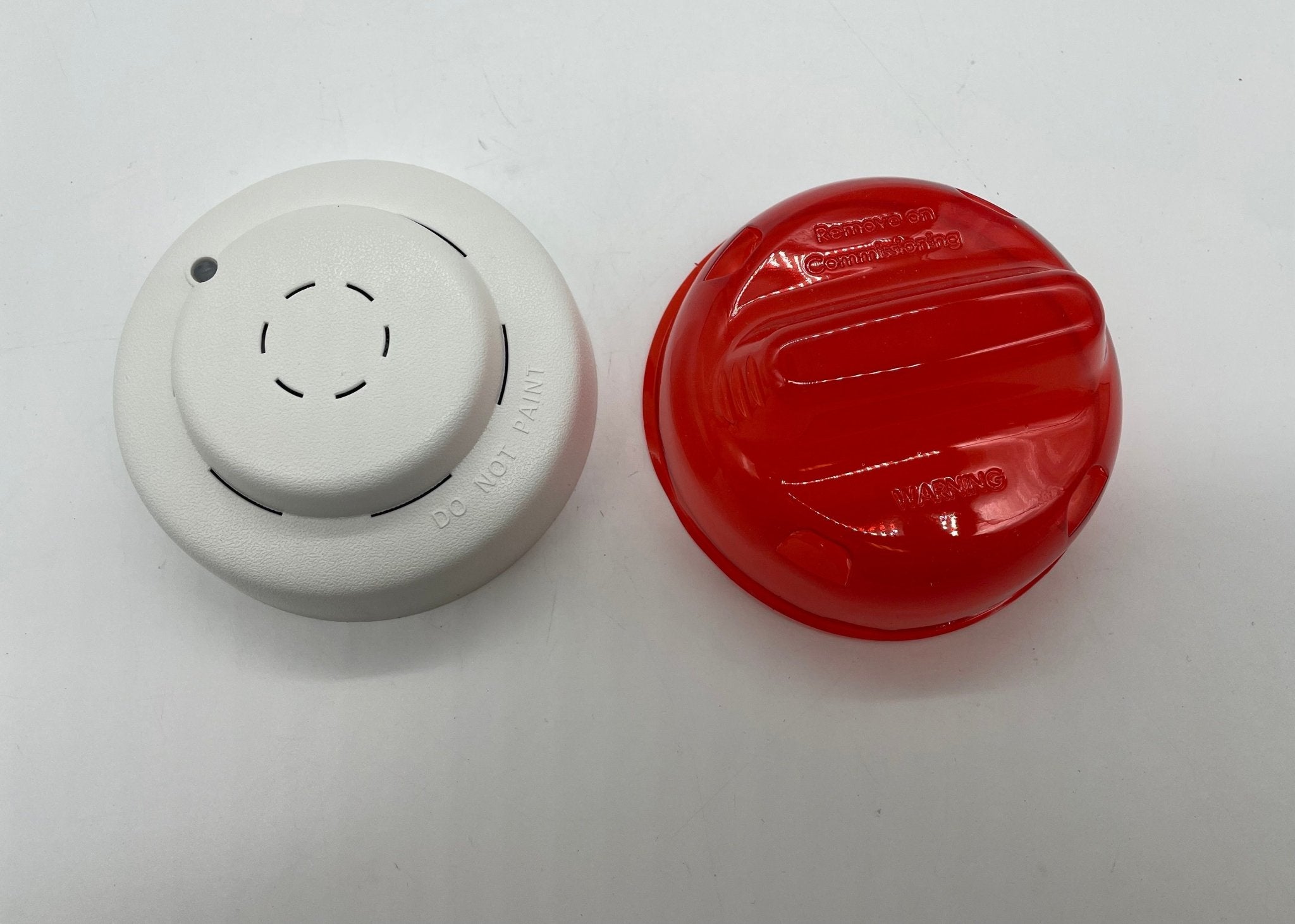

Potter PAD100-CD is an analog addressable carbon monoxide (CO) detector for fire alarm control panels that use the Potter Addressable Device (PAD) protocol. It uses an electrochemical CO sensor and a plastic housing in eggshell white. The detector twists onto any PAD series base, which is sold separately.
Specifications
| Operating voltage |
24 VDC |
| Current draw |
300 µA |
| Alarm set points |
70 ppm for 2 hours, 150 ppm for 30 min, 400 ppm for 10 min |
| Addresses |
1 to 127, set by DIP switches |
| Temperature range |
32°F to 120°F (0°C to 49°C) |
| Humidity |
0% to 93% non-condensing |
| Dimensions |
1.43 in. high x 3.93 in. diameter (without base) |
| Weight |
92 g (3.25 oz) without base |
| Certification |
UL 2075; UUKL for smoke control |
| Warranty |
5 years |
Features
- 8 year lifespan with built-in end-of-life indication
- Walk test mode for sensor verification
- LED alarm indicator; polling LED can be turned off
- Uses one address on the SLC loop
Compatible bases
- PAD100-4DB 4-inch base
- PAD100-6DB 6-inch base
- PAD100-IB, PAD100-RB, PAD100-SB and PAD100-SPKB bases
