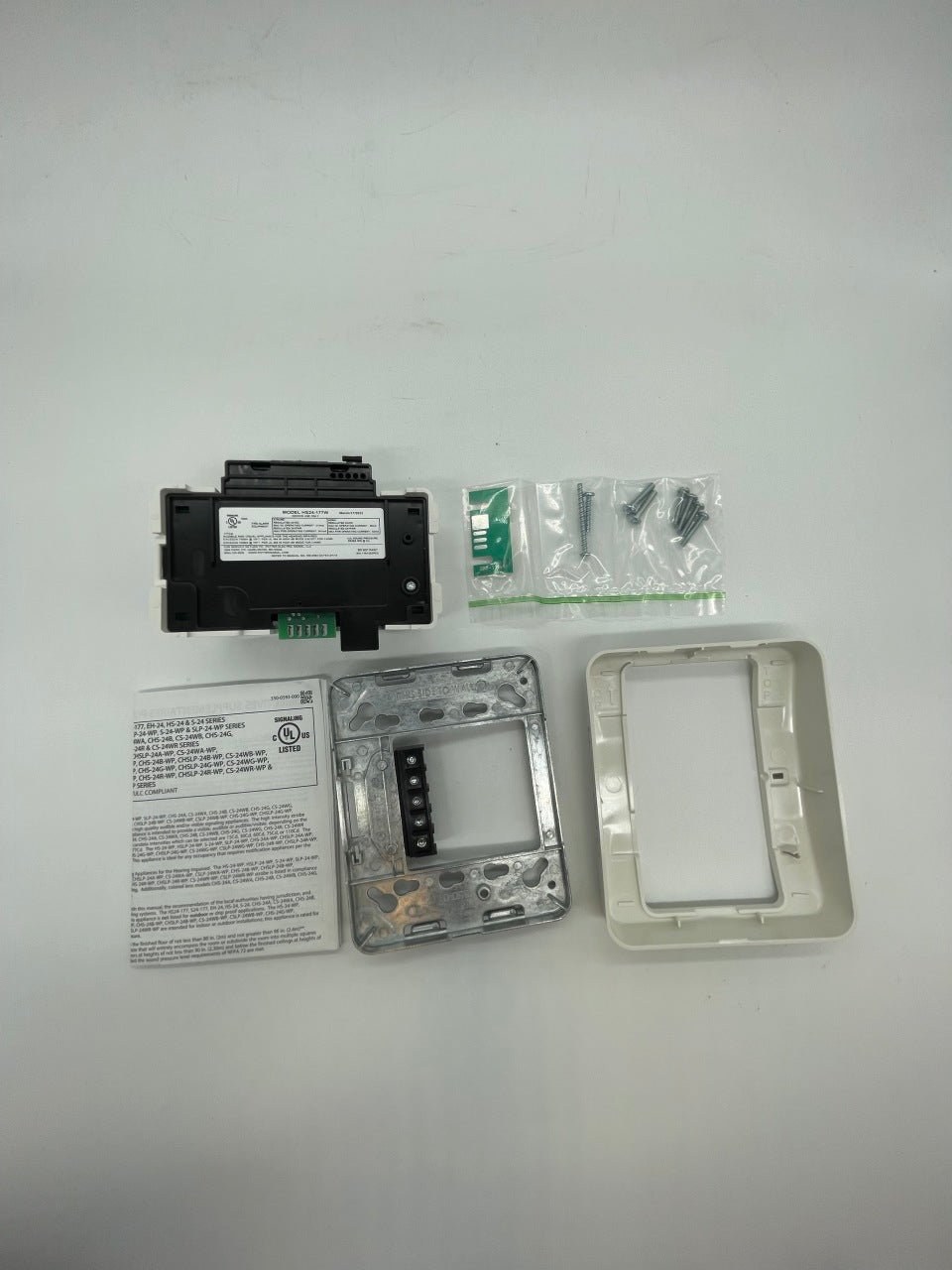

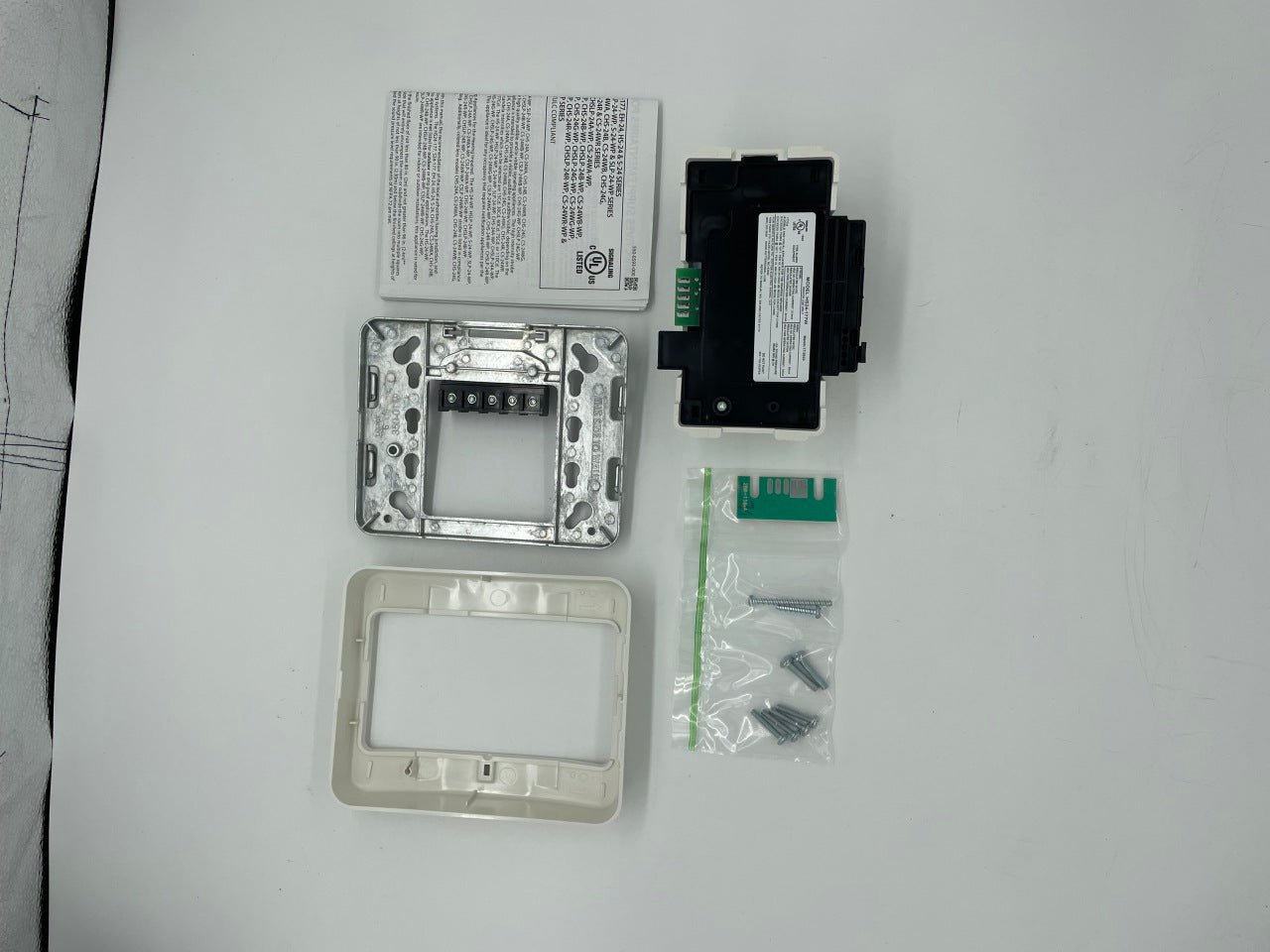

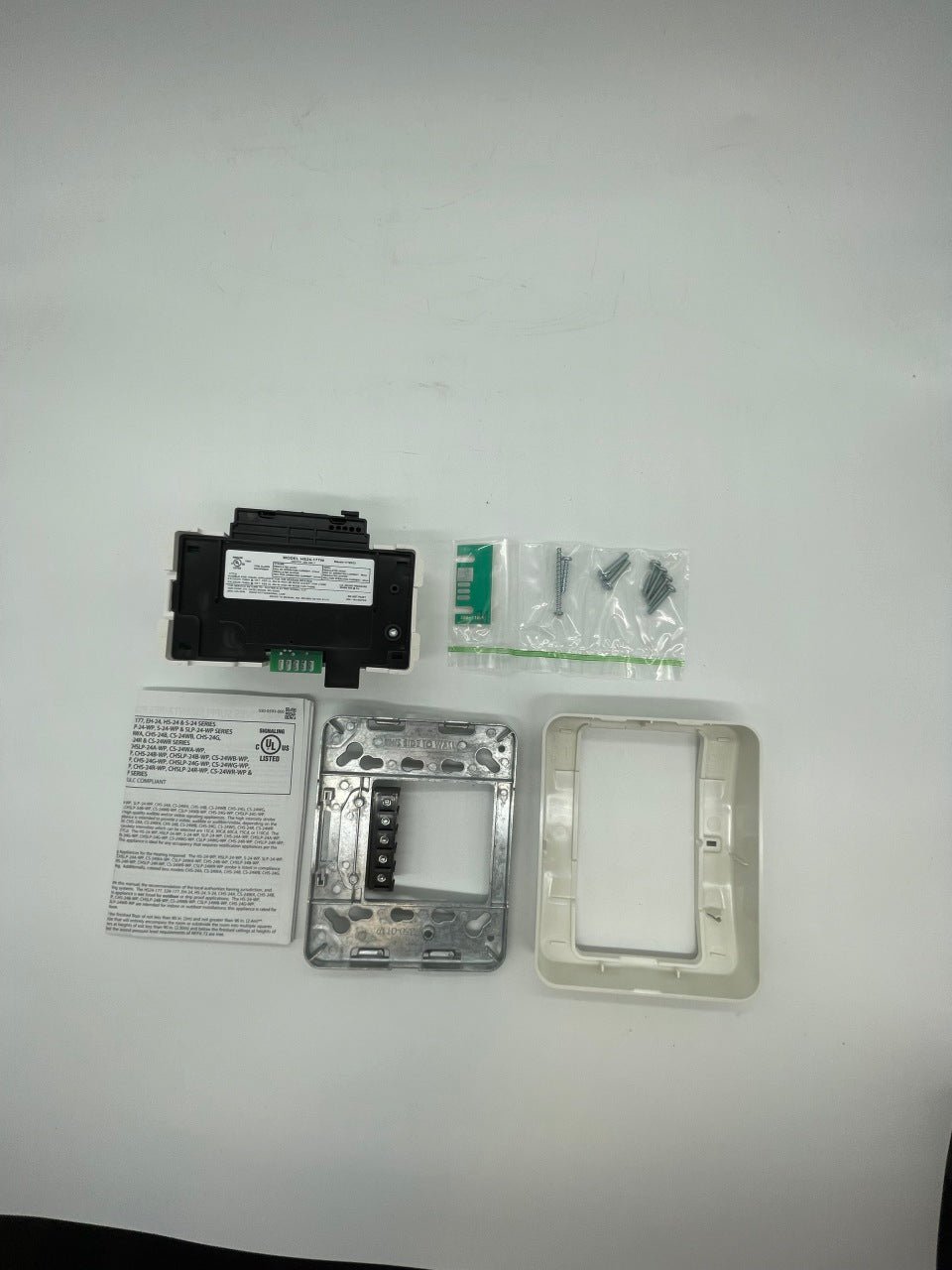

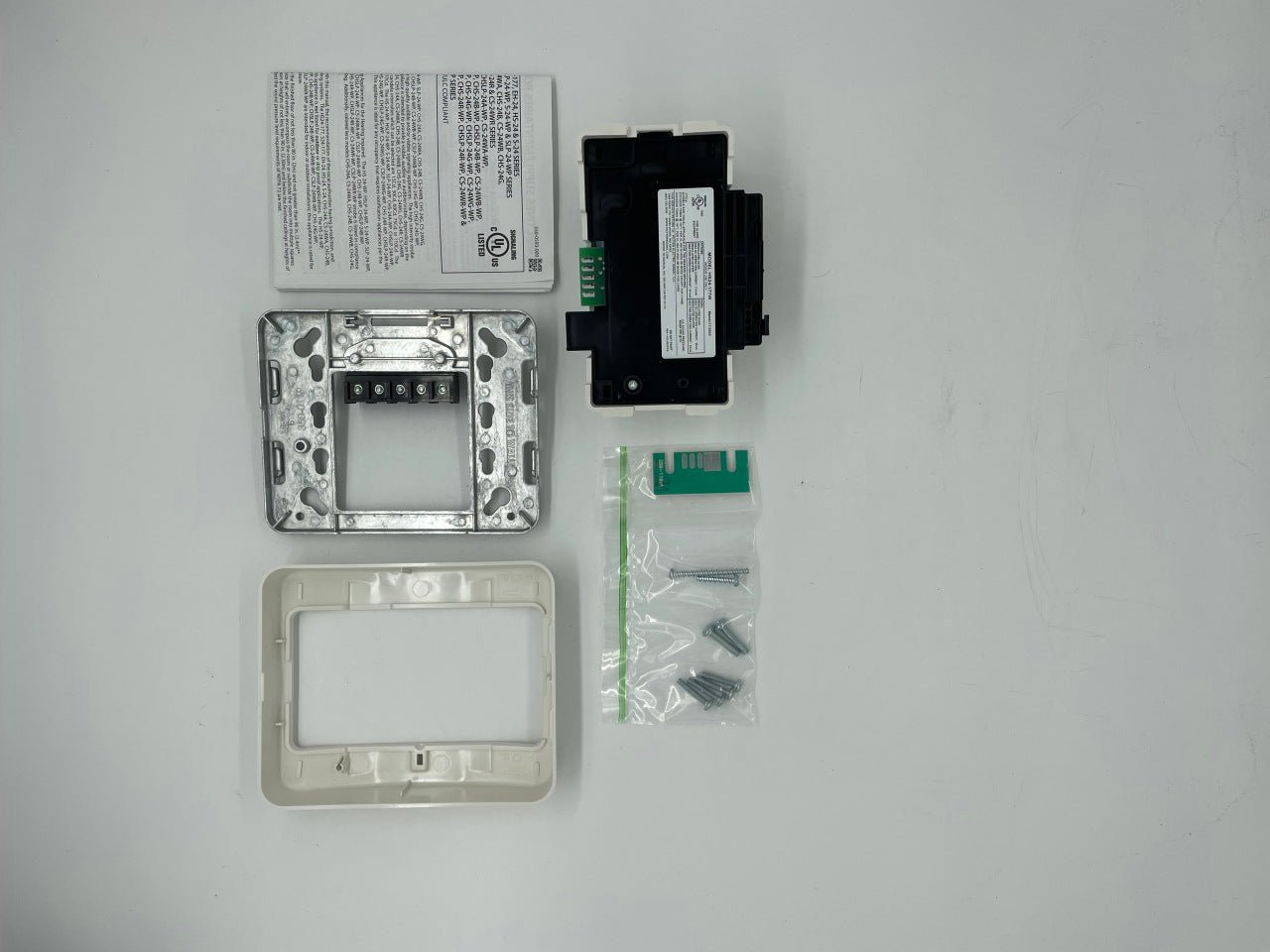

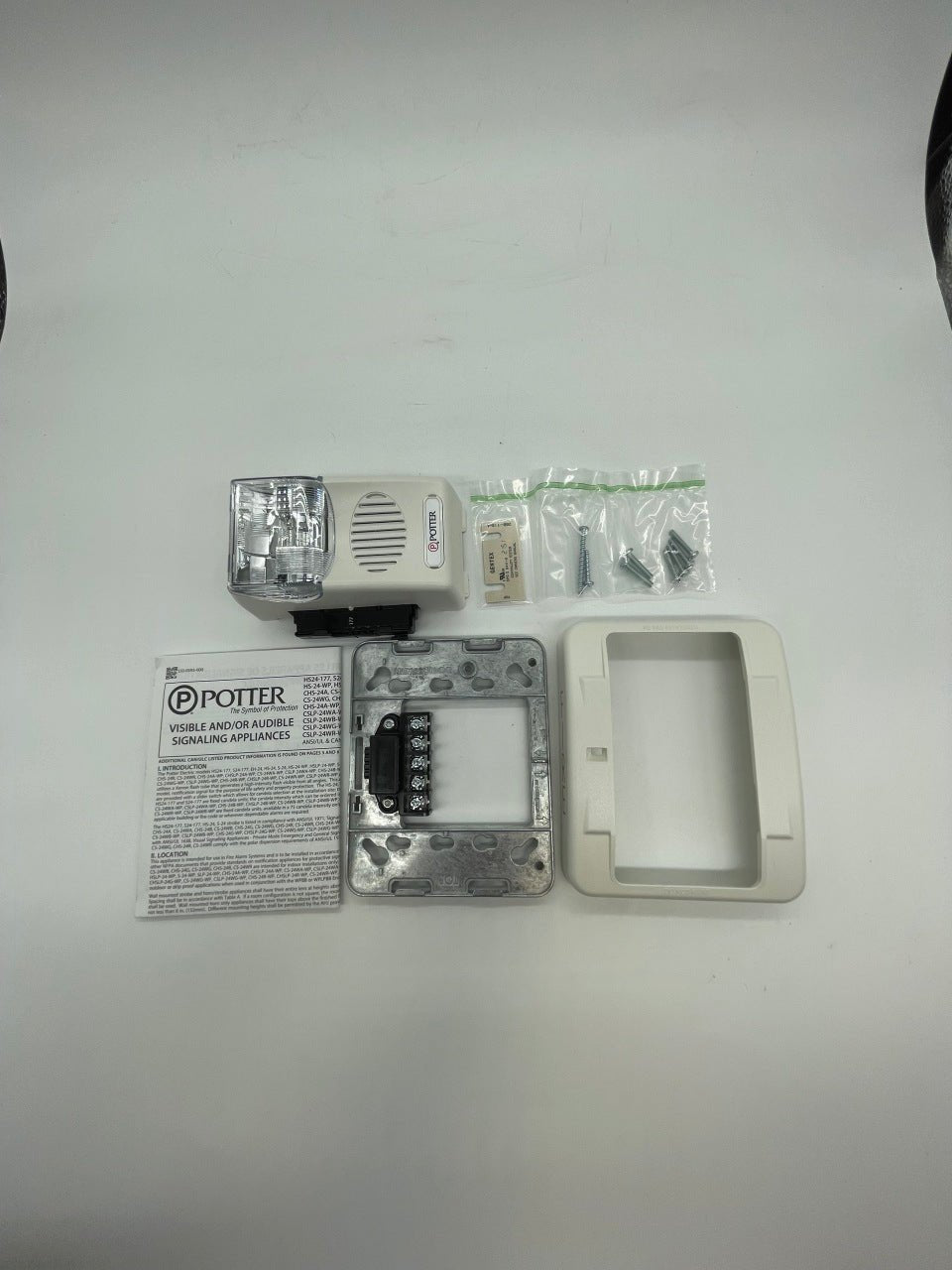

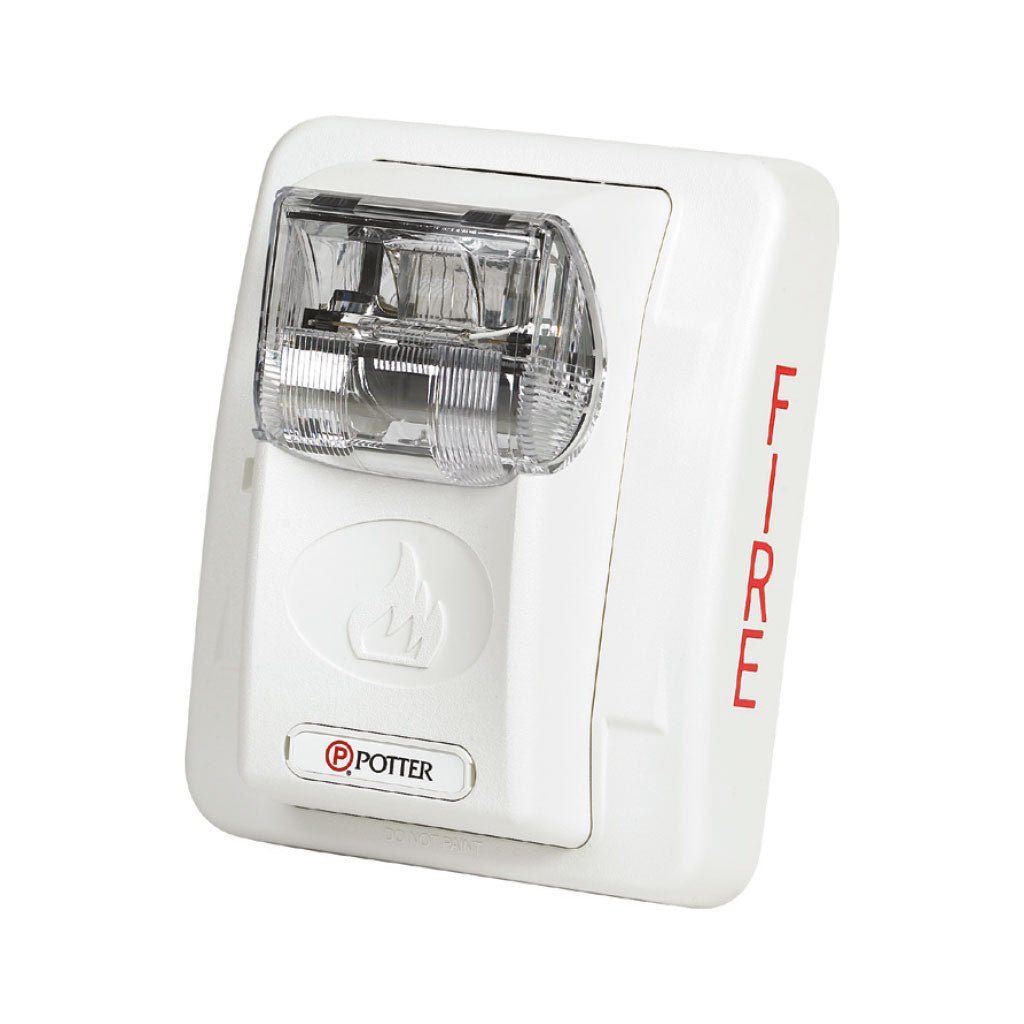

Potter HS24-177W 24V DC Fixed Candela, Low Profile Evacuation Horn Strobe, White
The HS24-177W is a wall-mount, low-profile horn/strobe with a fixed 177 candela strobe and an off-white faceplate, from the Potter S24-177/HS24-177 high candela series. It runs on 24 VDC and has switch-selectable horn tones and high/low volume. The 177 cd rating is the intensity required for sleeping areas when the lens is less than 24 in. from the ceiling.
Key Features
- Fixed 177 candela strobe, nominal 24 VDC
- Switch for chime, whoop, mechanical and 2400 Hz tones; continuous or temporal 3 (not on whoop)
- High or low dBA switch
- Super-Slide bracket for supervision testing; Checkmate instant voltage verification
- Synchronize strobe and/or horn with the AVSM control module
- Horn can be silenced while strobes keep flashing
- Tamperproof re-entrant grill
- ANSI/UL 464 and ANSI/UL 1971 listed; CSFM 7135-0328:0217
- Indoor installation only
Specifications
| Model |
HS24-177W |
| Item number |
4890035 |
| Nominal voltage |
24 VDC (16-33 V) |
| Strobe candela |
177 (fixed) |
| Strobe current |
96 mA at 24 VDC; 213 mA UL max |
| Sound output |
70-82 dBA reverberant at 10 ft (UL 464); 100 dBA anechoic at 10 ft |
| Dimensions |
5 in. H x 4.5 in. W x 2.5 in. D |
| Input terminals |
12 to 18 AWG |
| Faceplate |
Off-white |
| Surface mount |
With AV-BB back box |
Compatible With
- Potter AVSM sync control module
- Potter AV-BB surface back box
- Single-gang, 4 in. square and 2-gang boxes
