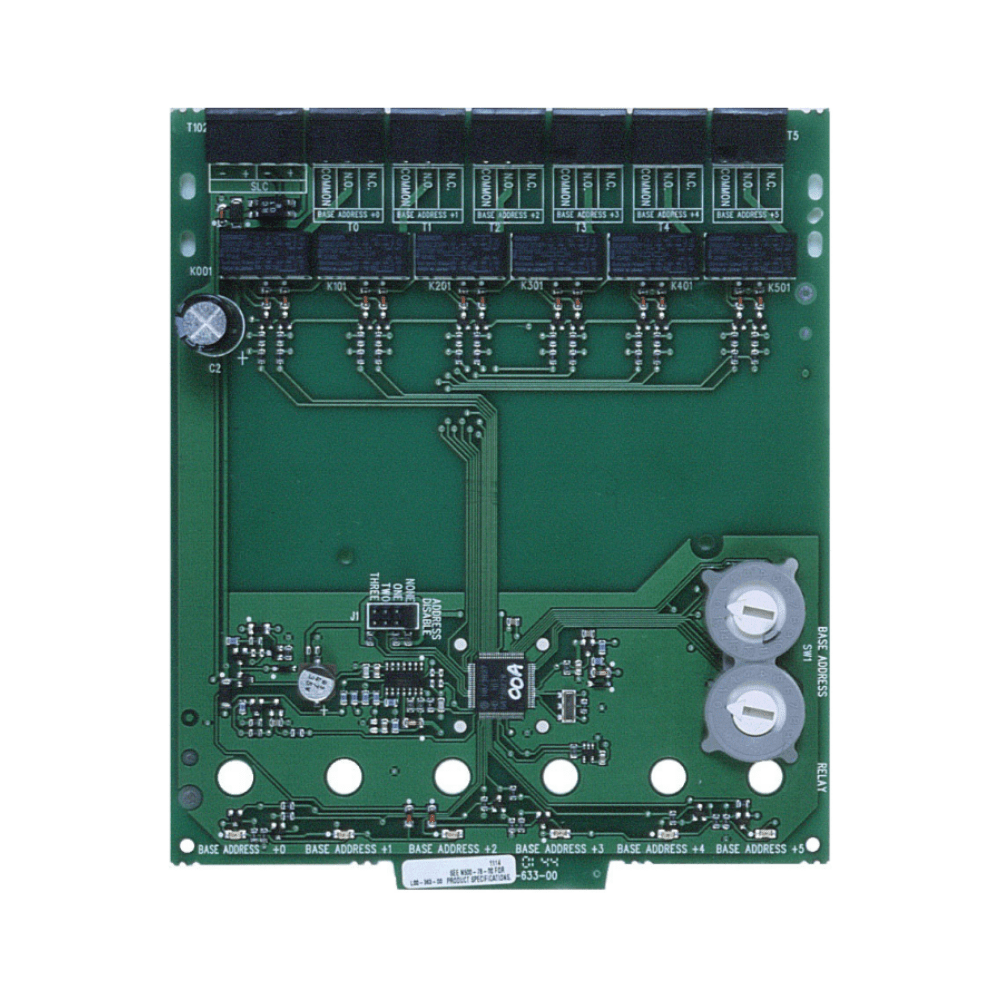

Notifier XP6-R is a six relay control module for Notifier intelligent fire alarm systems. It packs six addressable relay points on one board, each with a single isolated set of dry Form C contacts that can be wired normally open or normally closed, for switching loads that do not require wiring supervision.
A pair of rotary code switches sets the address of the first relay from 01 to 154, and the remaining five take the next higher addresses. Up to three unused relays can be disabled with the supplied shunt to release their addresses. Each relay has a panel-controlled green LED that the panel can blink, latch on or latch off.
Specifications
| Outputs |
Six Form C relays, one isolated contact set each |
| Addressing |
Rotary switches, first address 01–154, next five assigned automatically |
| Operating voltage |
15–32 VDC |
| Standby current |
1.45 mA |
| Alarm current |
32 mA (all six relays switched, all LEDs on) |
| Contact rating |
3 A at 30 VDC resistive; 0.9 A at 125 VDC resistive; 2 A at 25 VAC inductive |
| Wire gauge |
12–18 AWG |
| Operating temperature |
32 °F to 120 °F (0 °C to 49 °C) |
| Humidity |
10 to 93% non-condensing |
| Dimensions |
6.8 in. H x 5.8 in. W x 1.0 in. D |
Installation notes
- Up to six modules mount on a CHS-6 chassis in a CAB-3, CAB-4 or BB-25 cabinet; one or two fit in a BB-XP cabinet with its built-in chassis.
- Relays ship in the standby (open) state but can transfer during shipping, so let the module communicate with the panel before connecting controlled circuits.
- Supplied with terminal blocks, two 1-1/4 in. standoffs, screws, nuts and one disable shunt.
- Must be connected to a compatible Notifier control panel.
Related models
-
XP6-C: six circuit supervised control module
-
XP6-MA: XP-series six-point module
FAQ
How is the XP6-R addressed?
A pair of rotary switches sets the address of the first relay from 01 to 154, and the other five relays take the next five higher addresses. Up to three unused relays can be disabled to free their addresses.
Are the relay outputs supervised?
No. Each of the six relays provides one isolated dry Form C contact for loads that do not require wiring supervision. For supervised outputs Notifier offers the XP6-C.
How is it mounted?
Up to six XP6-R modules mount on a CHS-6 chassis in a CAB-3, CAB-4 or BB-25 cabinet, or one or two in a BB-XP cabinet, which has a built-in chassis.
What are the contact ratings?
Up to 3 A at 30 VDC resistive (non-coded), 2 A at 25 VAC inductive and 0.9 A at 125 VDC resistive.
