Notifier XP6-MA Six-Zone Interface Module provides an interface between the intelligent alarm system and a two-wire conventional detection zone
All modules use a common SLC input, and the initiating device circuits share a common external supervisory supply and ground.
Otherwise, each module operates independently from the others. The first module is addressed from 01 to 154, while the remaining modules are automatically assigned to the next five higher addresses.
Provisions are included for disabling a maximum of two unused modules. All two-wire detectors being monitored must be two-wire-compatibility-listed with the modules. The XP6-MA transmits the status of a zone of two-wire detectors to the fire alarm control panel. Status conditions are reported as usual, open, or alarm. The interface module supervises the zone of detectors and the connection of the external power supply.
Each XP6-MA module has panel-controlled bicolor LED indicators. The panel can cause the LEDs to blink or latch on or off.
Features
• Six addressable Class B or three addressable Class A initiating device circuits.
• Removable 12 AWG (3.1 mm²) to 18 AWG (0.78 mm²) plugin terminal blocks.
• Status indicators for each point.
• Up to two unused addresses may be disabled.
• Rotary address switches.
• Class A or Class B operation.
• FlashScan® or CLIP operation.
• Mount one or two modules in a BB-XP cabinet (optional).
• Mount up to six modules on a CHS-6 chassis in a CAB-3
Series, CAB-4 Series, BB-25 cabinet (optional), or EQ Cabinet Series.

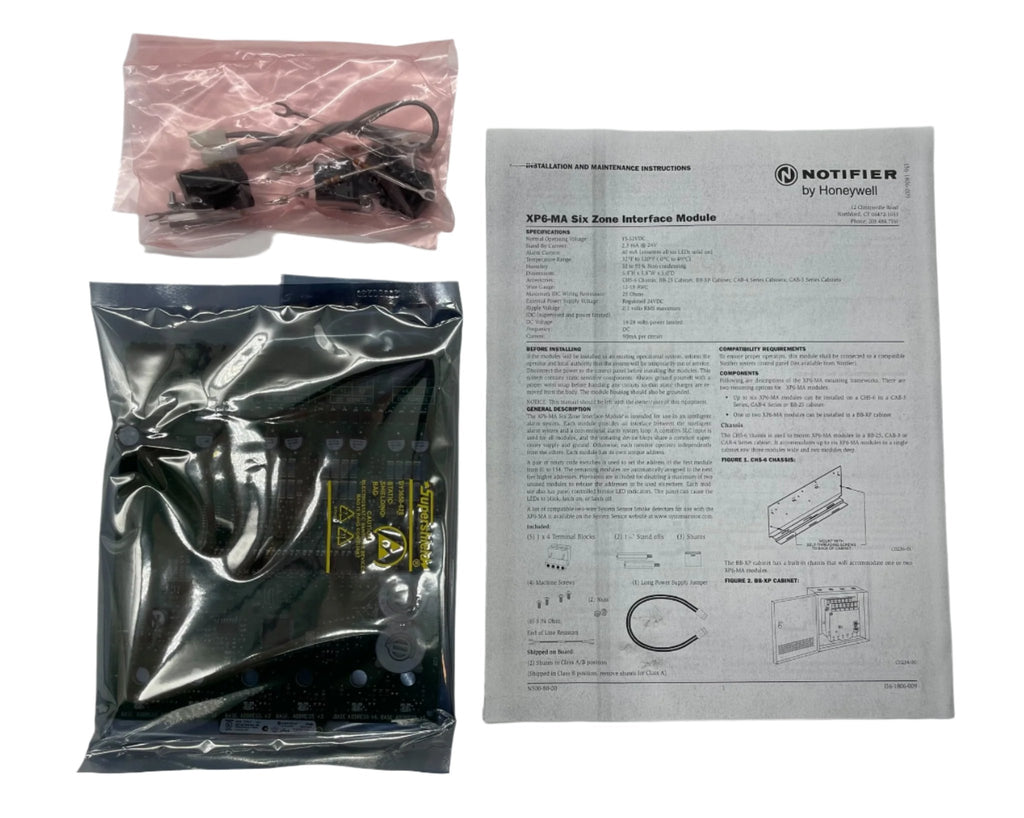

• Mounting hardware included.
Documents
FAQ
How many addresses does the XP6-MA use?
Six. The first module is set from 01 to 154 with rotary switches and the remaining five modules take the next five higher addresses. Up to two unused addresses can be disabled.
Does it need a separate power supply?
Yes. The initiating device circuits share a common external supply of 18 to 28 VDC, power limited, with 90 mA maximum per address in alarm.
Which protocols does it support?
The XP6-MA operates in FlashScan or CLIP mode on a compatible Notifier intelligent panel.
What does it report to the panel?
Each module transmits the status of a zone of two-wire detectors as normal, open or alarm, and it supervises the zone wiring and the external power supply connection.
